Salda Smarty 2X V Series Mounting And Installation Instruction

46 | EN SMARTY v2023.2
DRAWN BY
CHECKED BY
SIGNATUREDUTIES / NAME DATE
UAB"SALDA"
Drawing #
Book #
APPROVED BY
12345678910
External preheater
SP45
1
01
2017-05-15
2017-05-15
X2:5 - GND
X2:6 - AO3(0-10V)
-N1
miniMCB V0.3
01-2-3
X12:1 - PE
X12:2 - N(L1)
X12:3 - DO2(L(L2))
-N1
miniMCB V0.3
01-1-3
External preheater.
Control 0-10V
Power up to 2kW, 1f/230V
Max. 2kW/230V
X12:1 - PE
X12:2 - N(L1)
X12:3 - DO2(L(L2))
-N2
miniMCB V0.3
01-6-3
X2:5 - GND
X2:6 - AO3(0-10V)
-N2
miniMCB V0.3
01-5-3
External preheater.
Control 0-10V
Power over 2kW, 2f/400V
-K1
A1
A2
230VAC
11 14
-K1
-K1
1
2
3 4
PE L1 L2
X12:1 - PE
X12:2 - N(L1)
X12:3 - DO2(L(L2))
-N2
miniMCB V0.3
X2:5 - GND
X2:6 - AO3(0-10V)
-N2
miniMCB V0.3
01-9-3
External preheater.
Control 0-10V
Power over 2kW, 3f/400V
-K1
A1
A2
230VAC
-K1
5 6
3
4
1
2
PE L1 L2
11 14
-K1
PE
L1
L2
L3
GND
0-10V
-PE1
EKS NIS ... -3f
L3
PE
L1
L2
11-GND
12-0-10V
-PE1
EKS NIS ... -2f
PE
N
L1
0-10V
GND
-PE1
EKA NIS ... -1F

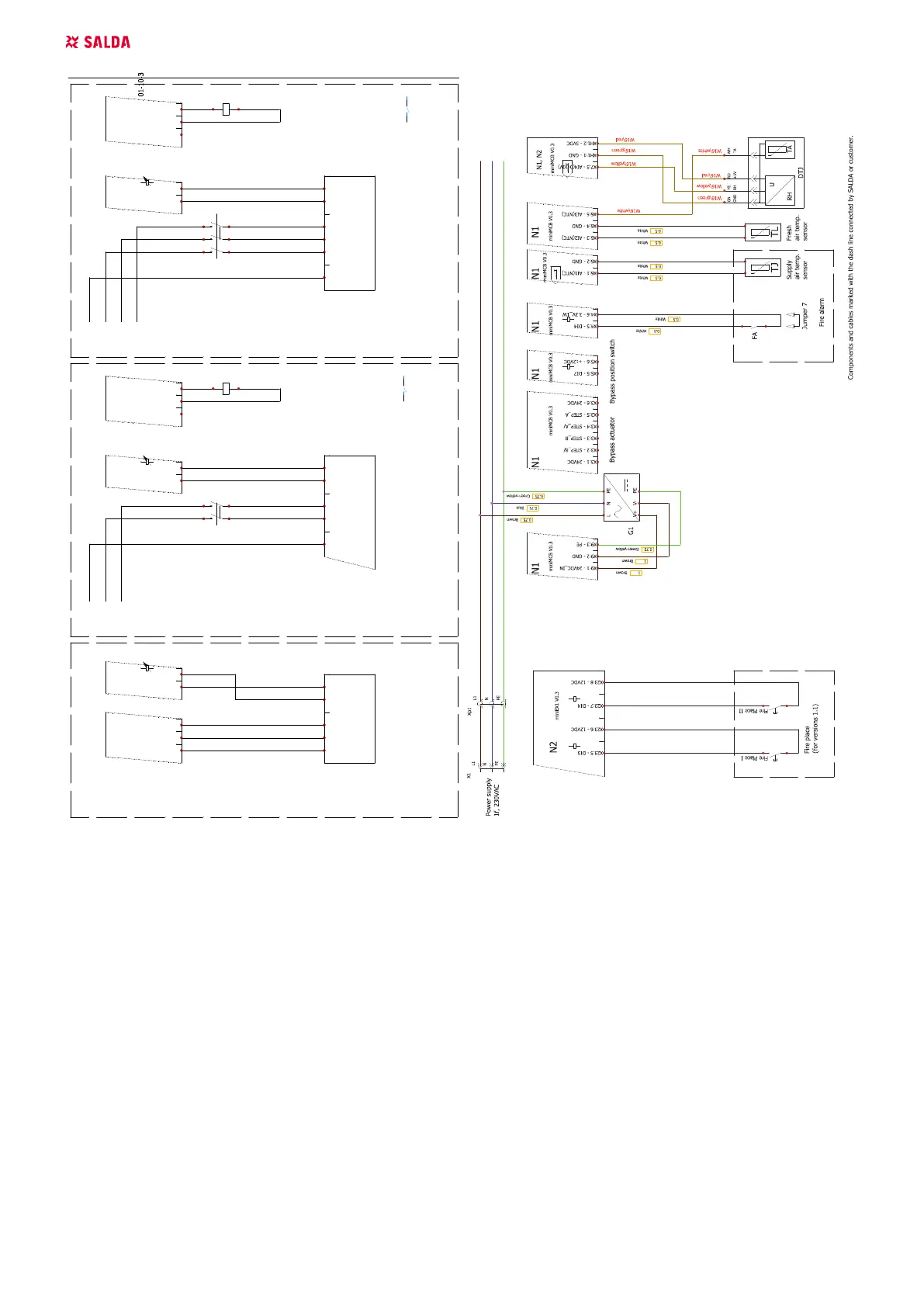

Figure 8.15.9. External preheater (version 1.1 / 1.2) (SP45) Figure 8.15.10. Smarty 3X V / 4X V F2 1.1 (219.1349.0.1.1-PS)
