Salus iT500TR - Page 11

11

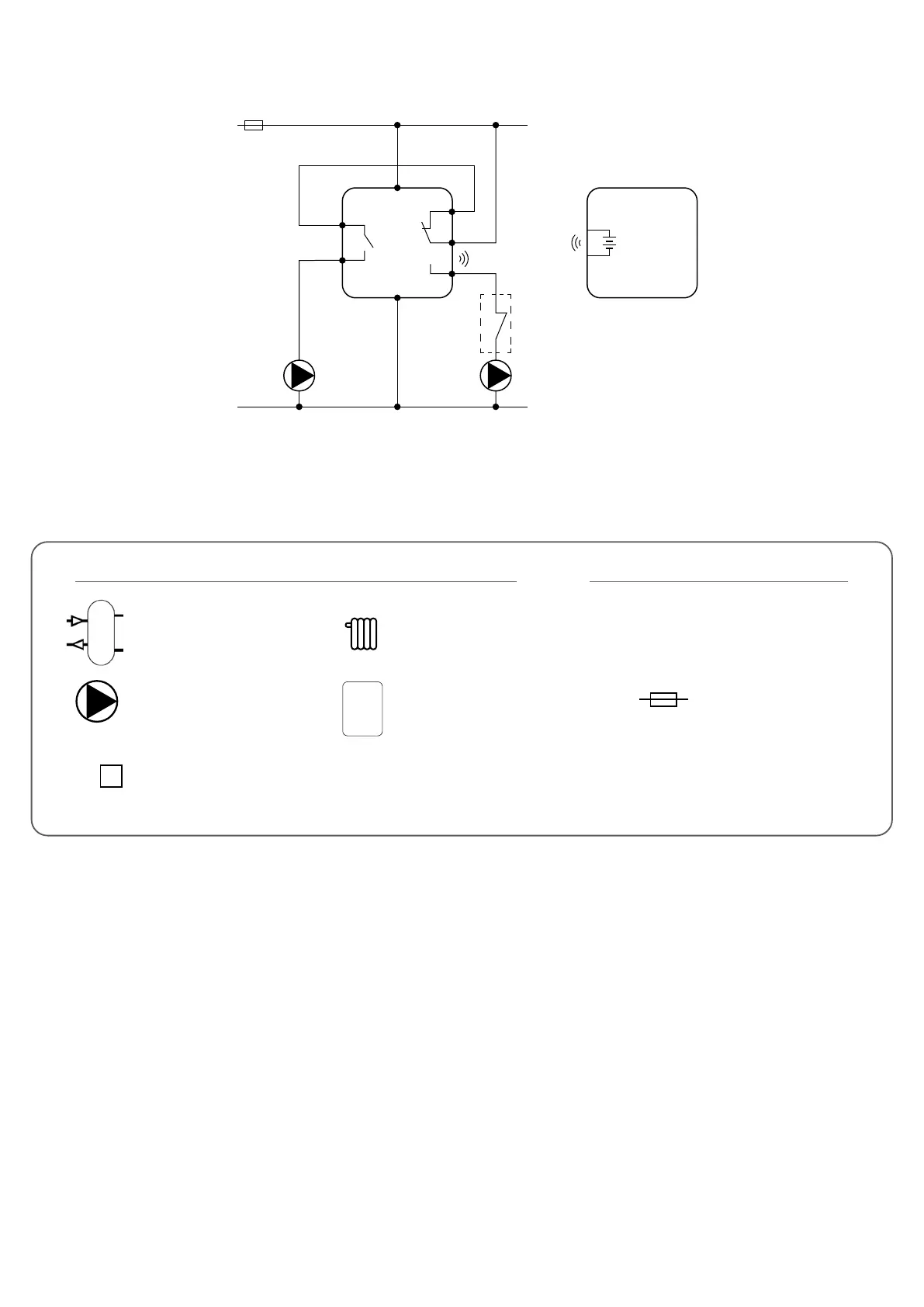

DHW priority:
L
AC 230V
P1 P2
N
NC
COM
COM
NO
NO
iT500RX
N
L
iT500TX
3V
2 x AA
AT10F
1
C
L, N - power supply 230V
NO, COM, NC - voltage-free output
- fuse
Legend: Symbols explanation:
DHW immersion
thermostat
Radiator heating
Hot water tank
Pump
TAT10F
DHW
Buer / Coupler
CH
OUTPUT
AUX
OUTPUT
