7. Exploded Views and Parts List
7-2 SAM4S ER-350 SERIES
7-2 Cover Printer Assembly
A-1
A-2

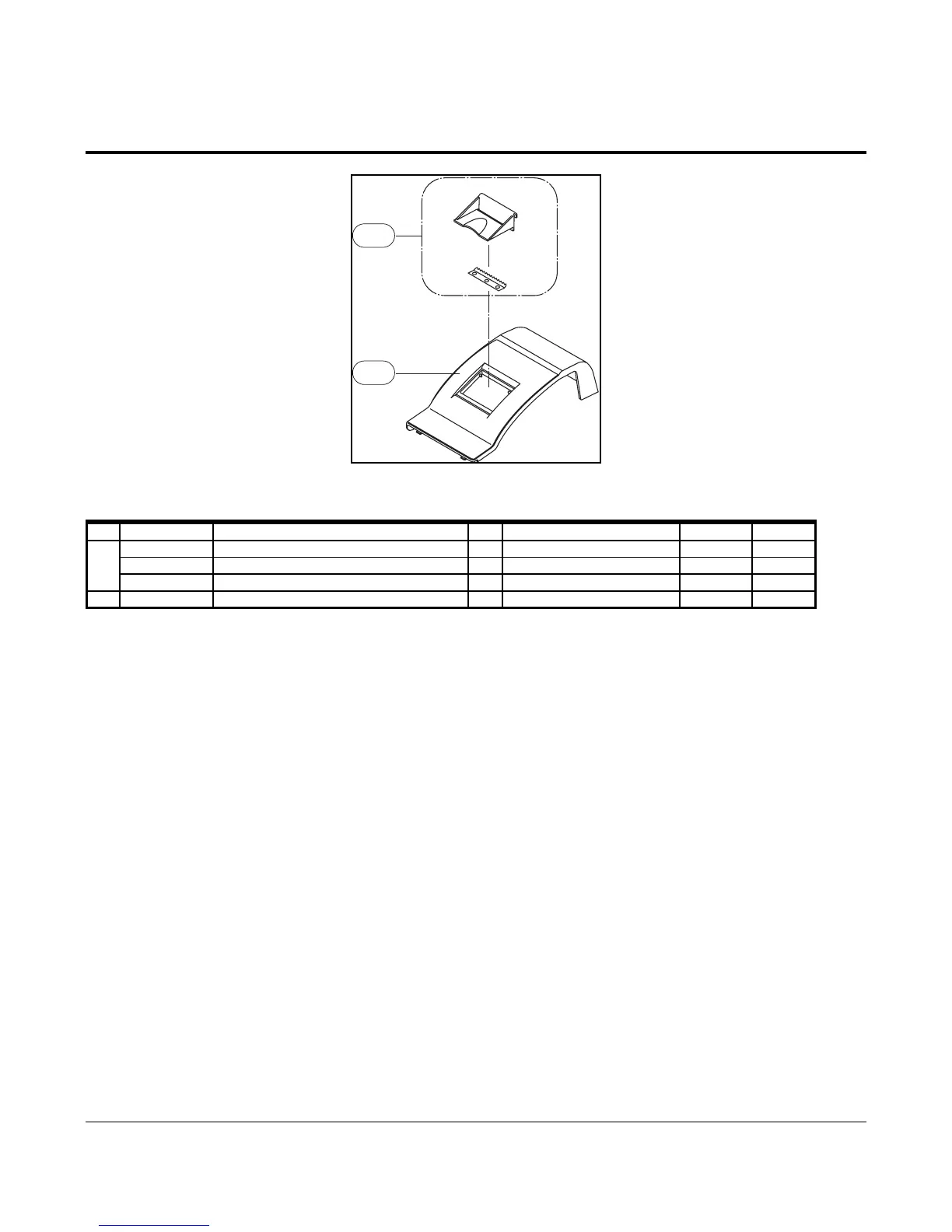

Figure7-2 Cover Printer Assembly
No Parts-No. Description/Specification Q'ty Design-Location Serviceable Remark
JK97-01060B MEA-WINDOW JOURNAL 1 Y
JK70-00056A IPR-CUTTER PAPER;SUS-304,T0.3 1 N
A-1
JK72-40204A PMO-WINDOW JOURNAL;ACRYL 1 N
A-2 JK72-00014A PMO-COVER PRINTER;HIPS(V0) 1 Y
To Next Page
