7. Exploded Views and Parts List
7-6 SAM4S ER-350 SERIES
7-6 Keyboard Assembly
D-1
D-2
D-3
D-4
D-8
D-5
D-9
D-1
0
D-1
1
D-1
2
D-6
D-7

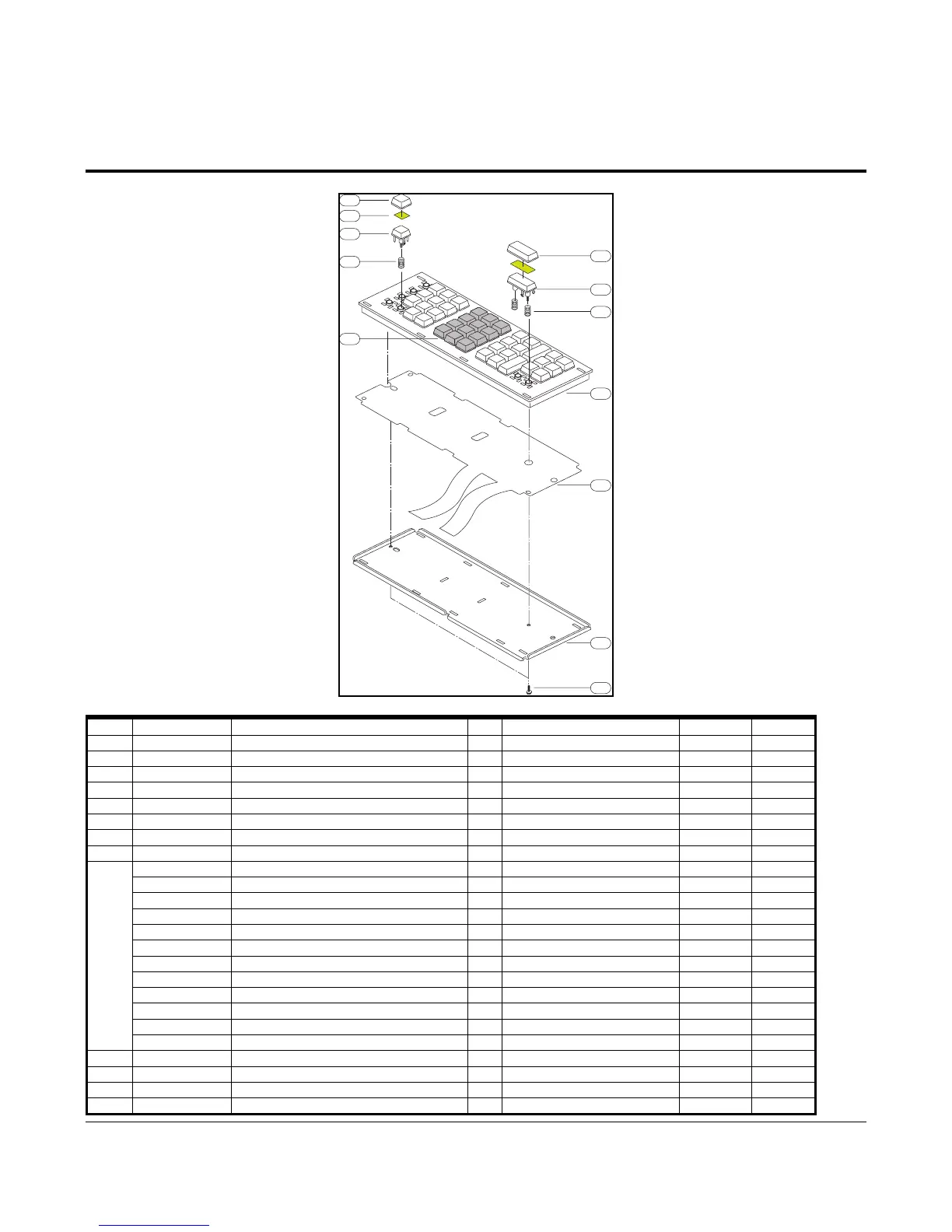

Figure7-6 Keyboard Assembly
No Parts-No. Description/Specification Q'ty Design-Location Serviceable Remark
D JK59-10512A UNIT-KEYBOARD;44KEY,ENGLISH 1 Y
D-1 JK81-10945A KEY-CAP(S);1X1 26 Y
D-2 - LABEL-KEY TOP SET 1 N
D-3 JK81-20013A KEY-TOP ASS'Y(S);1X1 26 Y
D-4 JK81-10285T SPRING RETURN;1X1 41 Y
D-5 JK81-10946A KEY-CAP(L);1X2 3 Y
D-6 JK81-20014A KEY-TOP ASS'Y(L);1X2 3 Y
D-7 JK81-20001A SPRING-RETURN;1X2 6 Y
JK81-10933A KEY-TOP,1 1 Y
JK81-10934A KEY-TOP,2 1 Y
JK81-10935A KEY-TOP,3 1 Y
JK81-10936A KEY-TOP,4 1 Y
JK81-10937A KEY-TOP,5 1 Y
JK81-10938A KEY-TOP,6 1 Y
JK81-10939A KEY-TOP,7 1 Y
JK81-10940A KEY-TOP,8 1 Y
JK81-10941A KEY-TOP,9 1 Y
JK81-10942A KEY-TOP,0 1 Y
JK81-10943A KEY-TOP,00 1 Y
D-8
JK81-10944A KEY-TOP,● 1 Y
D-9 JK72-60448A HOUSING 1 Y
D-10 JK81-10949A FPC ASS'Y 1 Y
D-11 JK70-10422A FRAME(T0.8) 1 Y
D-12 6002-000114 SCREW TAPPING;PH,+,2,M3,L8,ZPC(YEL) 2 Y
