7. Exploded Views and Parts List
SAM4S ER-350 SERIES 7-3
7-3 Printer Assembly
C-1
C-2
C-3
C-4
C-3
C-4
C-9
C-5
C-6
C-7
C-8
C-3
C-4
C-3
C-4
C-10
C-11
C-12
C-1
3
g
k
m
a

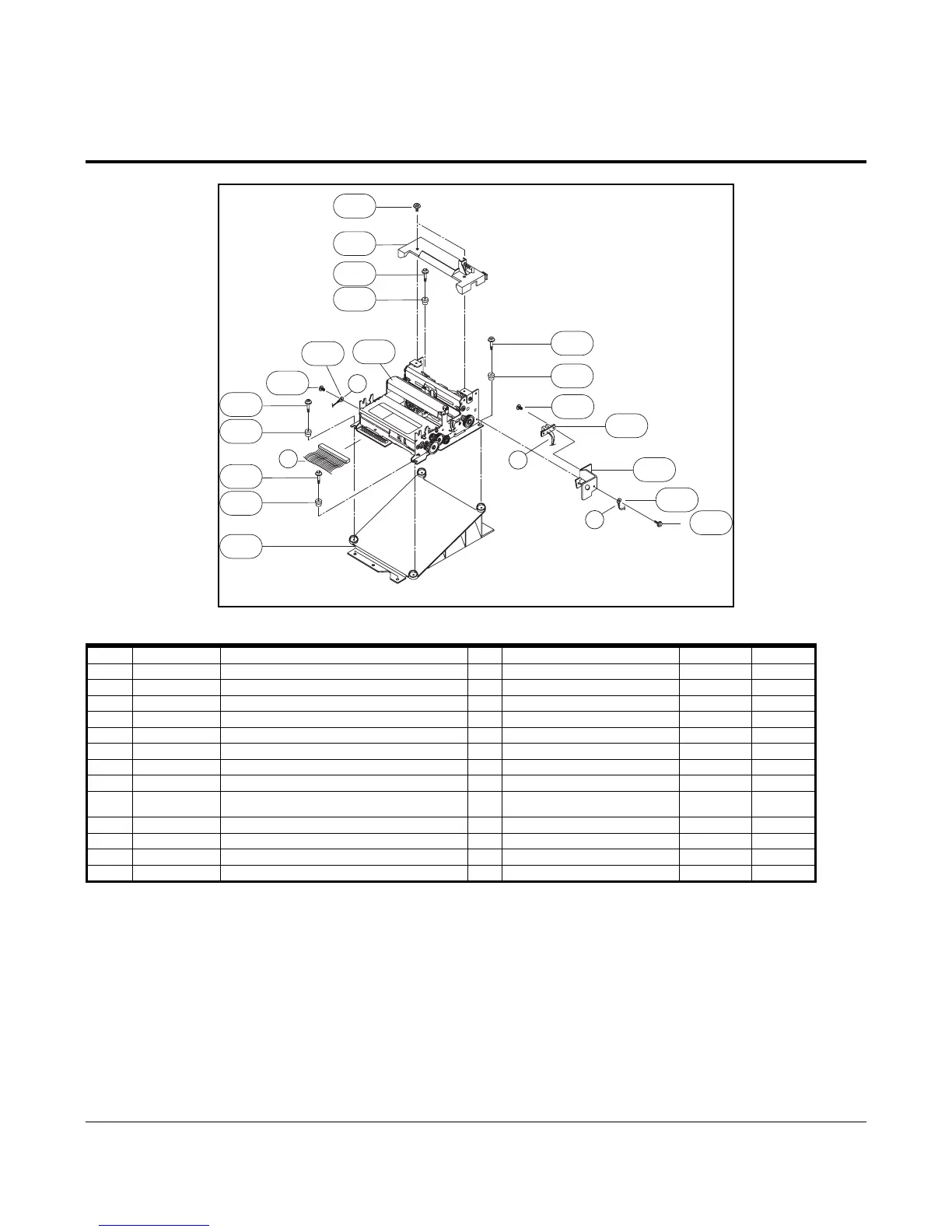

Figure7-3 Printer Assembly
No Parts-No. Description/Specification Q'ty Design-Location Serviceable Remark
C-1 6002-000175 SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(YEL) 2 PRT ASS'Y+C/PRT HODLER Y
C-2 JK72-40217A PM0-CASE PRINTER HOLDER;HIPS(V0) 1 Y
C-3 6002-000209 SCREW-TAPPING;PH,+,2,M3,L17.5,ZPC(YEL) 4 PRT ASS'Y+HODLER PRINTER Y
C-4 JK73-40201A RMO-PRINTER 4 PRT ASS'Y+HODLER PRINTER Y
C-5 JK59-10507A UNIT-PRINTER 1 Y
C-6 JK60-00001A SCREW-ASSY TAPTITE;PWH,+,2,M3,L8 1 PRT ASS'Y+GND HARNESS Y
C-7 JK39-40011A CBF-HARNESS;250MM 1 PRT ASS'Y+D/R CENTER GND Y
C-8 JK72-40208A PMO-HOLDER PRINTER 1 Y
C-9 6001-000568
SCREW-MACHINE:PH,+,M3,L8,NI
PLT,SM20C,-
1
PHOTO-
INTERRUPTER+B/SENSOR
Y
C-10 JK96-00186A ELA ETC-P/END SENSOR 1 Y
C-11 JK70-10012A IPR-BRKT SENSOR;SECC T1.2 1 Y
C-12 JK39-40011A CBF-HARNESS;250MM 1 SENSOR GND WIRE+G/PLATE Y
C-13 JK60-00001A SCREW-ASSY TAPTITE;PWH,+,2,M3,L8 1 PRT ASS'Y+GND HARNESS Y
