7. Exploded Views and Parts Lists
SAM4S ER-350 SERIES 7-5
7-5 Lower Case Assembly
E-1
E-2
E-20
d
h
g
a
b
e
b
f
q
r
j
p
s
k
m
p
E-3
E-4
E-5
E-6
E-9
E-10
E-1
2
E-13
E-14
E-15
s
j
E-16
E-17
E-18
E-19
h
n
E-11
E-7
E-8

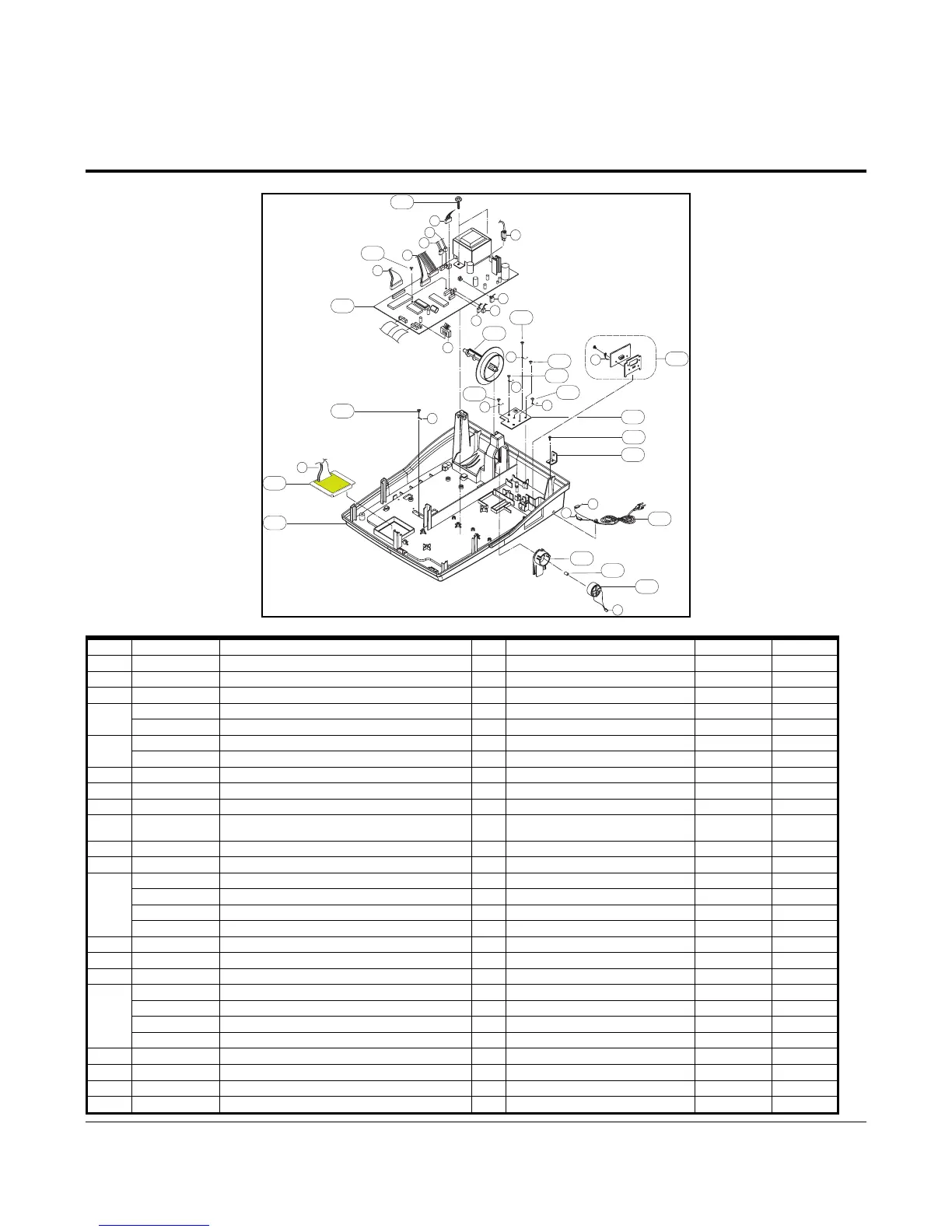

Figure7-5 Lower Case Assembly
No Parts-No. Description/Specification Q'ty Design-Location Serviceable Remark
E-1 6003-000014 SCREW-TAPTITE;+,S,M5,L14,ZPC(YEL) 2 C/LOWER+POWER TRANS Y
E-2 JK92-00901A PBA MAIN B'D;ER-350,STD 1 Y
E-3 6003-001149 SCREW-TAPTITE;+,S,M4,L10,ZPC(YEL) 1 C/LOWER+D/R CENTER GND Y
JK96-00190C ELA ETC-PCB FISCAL;ER-350F 1 Y
E-4
JK72-40205A
PMO-CASE FISCAL BOARD;HIPS(V0) 1 Y
JK72-00013A PMO-CASE LOWER(NON SERIAL) 1 Y
E-5
JK72-00013B PMO-CASE LOWER(SERIAL 1) 1 Y
E-6 JK72-40215A PMO-PULLEY WINDING 1 Y
E-7 JK60-00001A SCREW-ASSY TAPTITE;+,2,M3,L8 1 GND PLATE+I/F GND WIRE Y
E-8 6002-000174 SCREW-TAPPING;PWH,+,2,M3,L10,ZPC(YEL) 1 GND PLATE+C/LOWER Y
E-9 6006-000199
SCREW-ASS'Y
TAPT:WT,BH,+,M4,L8,ZPC(YEL),
1
GND PLATE+POWER CORD GND
WIRE
Y
E-10 6002-000175 SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(YEL) 1 GND PLATE+SENSOR GND WIRE Y
E-11 JK60-00001A SCREW-ASSY TAPTITE;+,2,M3,L8 1 GND PLATE+D/R GND WIRE Y
JK92-00130A PBA-SUB I/F BOARD 1 Y
6003-000266 SCREW-TAPTITE;PWH,+,S,M3,L6 1 BRKT-PORT+I/F GND N
JK49-40011A CBF HARNESS;250MM 1 N
E-12
JK70-10003A IPR-BRKT PORT 1 N
E-13 JK70-10001A IPR-PLATE GROUND:ER-350,SBHG-1,T1.2,- 1 Y
E-14 6002-000171 SCREW-TAPPING:PH,+,2S,M4,L10,ZPC(YEL) 1 C/LOWER+BRKT CASING Y
E-15 JK70-10002A IPR-BRKT CASING:ER-380,SBHG-1,T1.6,- 1 Y
JK39-10002A CBF-POWER CORD;AUSTRALIA 1 Y
JK39-10003A CBF-POWER CORD;USA 1 Y
JK39-10008A CBF-POWER CORD;UK 1 Y
E-16
JK39-10501A CBF-POWER CORD;EUROPE 1 Y
E-17 JK72-40206A PMO-HOLDER MOTOR 1 Y
E-18 JK73-30200A RCT-MOTOR 1 Y
E-19 JK96-00185A ELA ETC-MOTOR SPOOL 1 Y
E-20 6002-000174 SCREW-TAPPING;PWH,+,2,M3,L10,ZPC(YEL) 2 C/LOWER+MIN B’D Y
