HCUBE-102D Service Manual
12

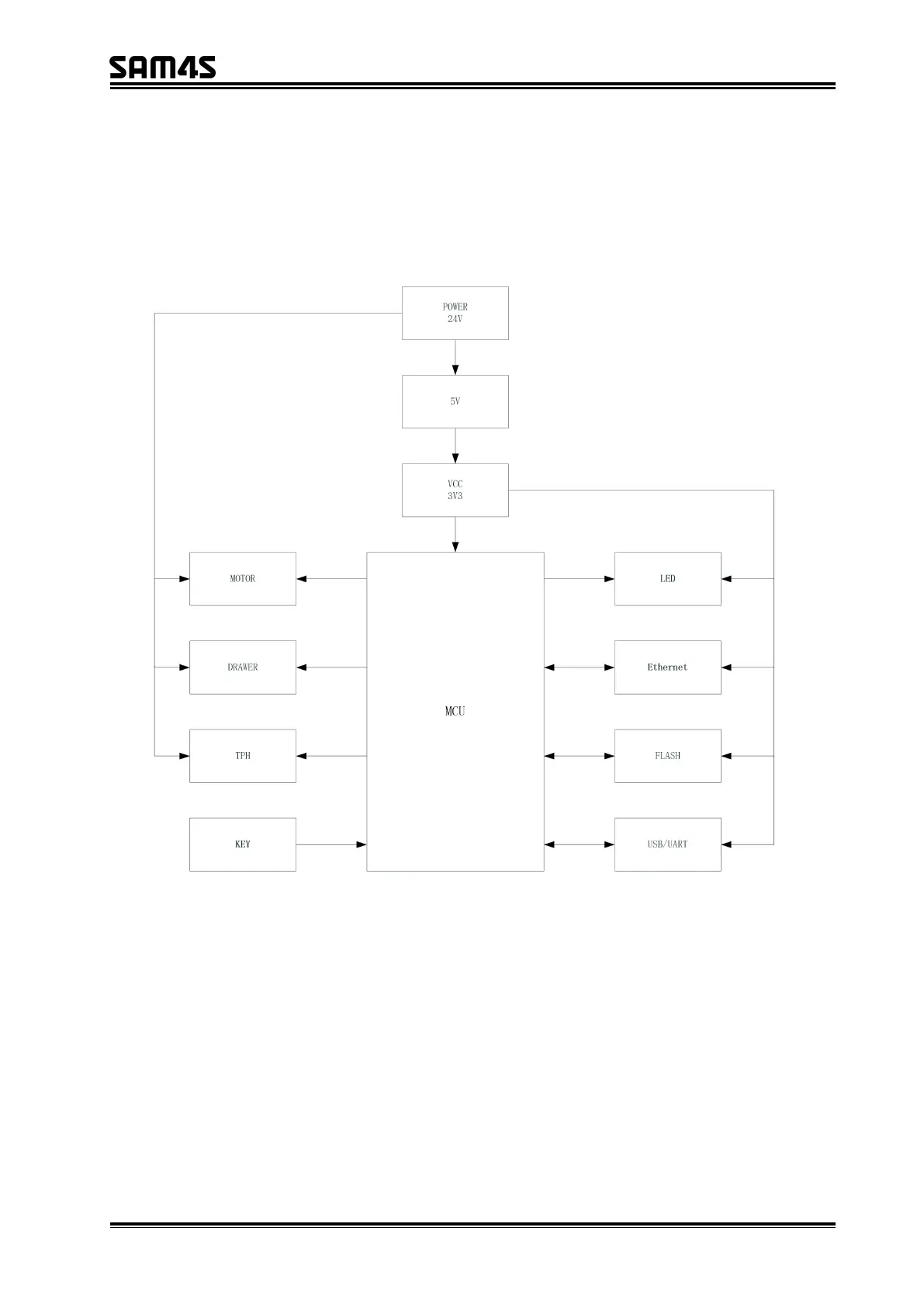

3 Control Board Connection diagram
Sensors, buttons, and motors are connected to the main control panel via a connector or
adapter board. Refer to the Dashboard Component Connection diagram below:
