Sam4s HCUBE-102D - Printer Disassembly Procedures

HCUBE-102D Service Manual
6

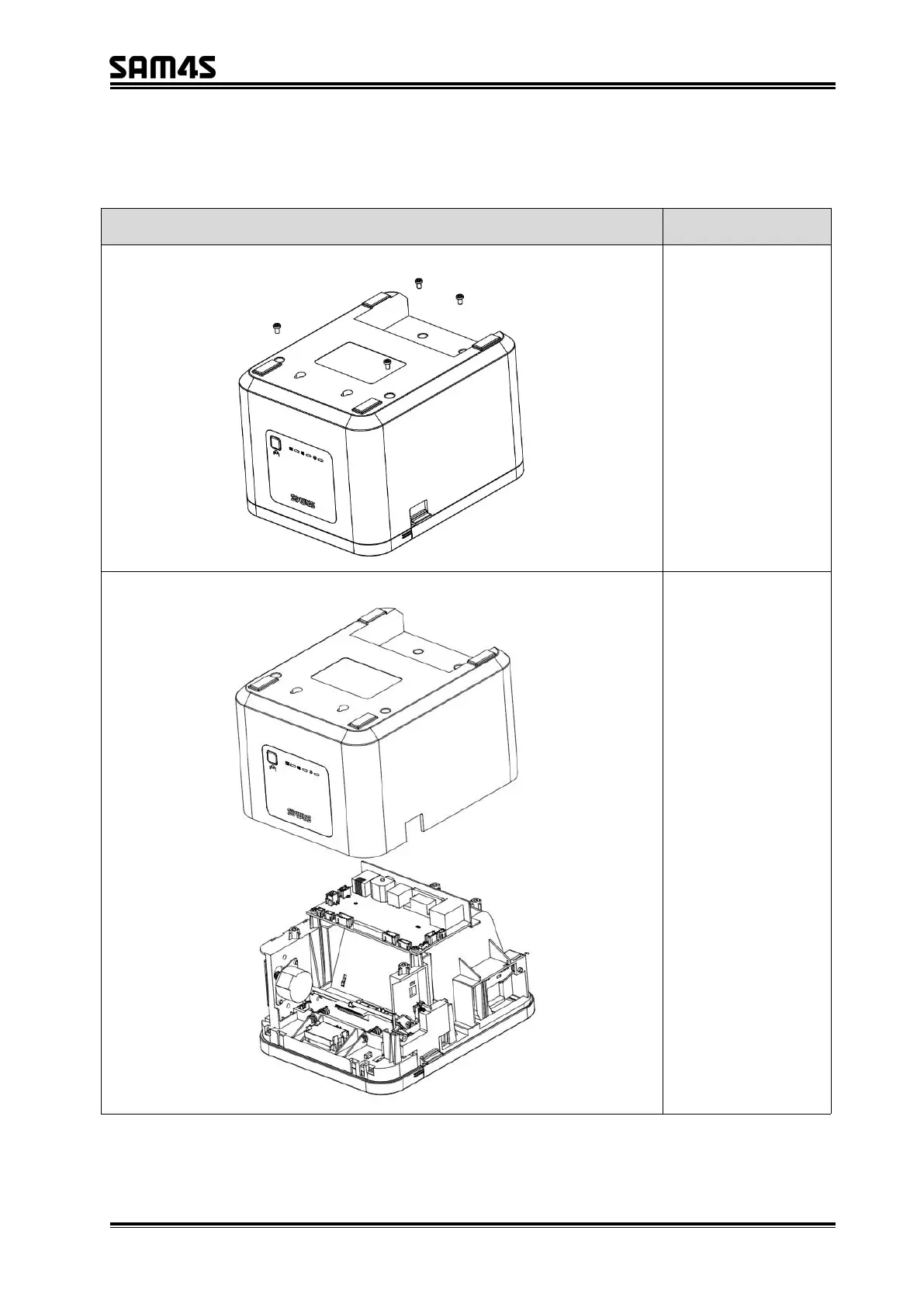

2.1 Printer Disassembling
2.1.1 Disassemble the Lower Shell Unit of Printer
Diagram
Description
1. Remove the 4
screws from the
bottom of the printer
with a cross
screwdriver.
2. Remove the lower
shell unit and pull out
the cables from the
two interfaces.
