Installation
Î Locate the vent plug on the opposite side
to the work position of operating person-
nel.
5.2 Preparation for installation
Before installation, make sure the following
conditions are met:
− The valve is clean.
− The valve and all valve accessories (in-
cluding piping) are not damaged.

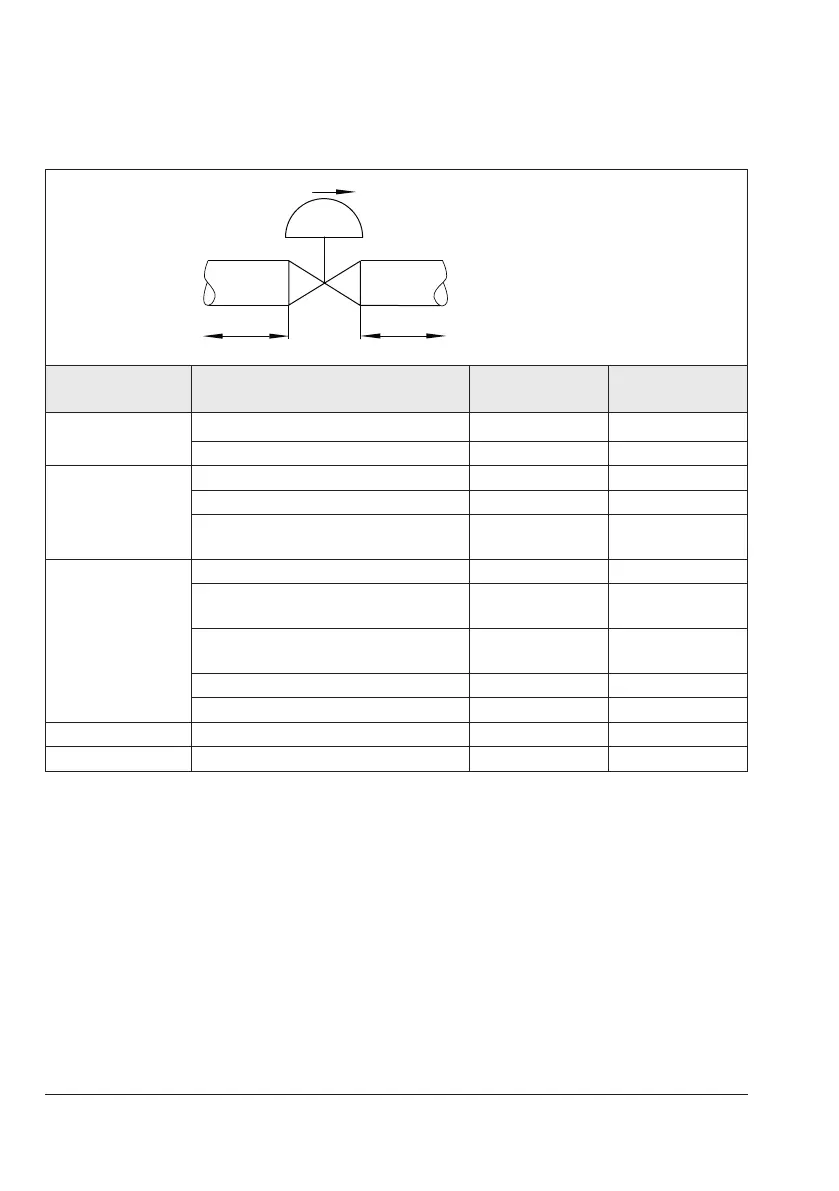

Table 5-1: Inlet and outlet lengths
Q
a x DN b x DN
State of process
medium
Valve conditions Inlet length a Outlet length b
Gas
Ma≤0.3 2 4
0.3≤Ma≤0.7 2 10
Vapor
Ma≤0.3
1)
2 4
0.3≤Ma≤0.7
1)
2 10
Saturated steam (percentage of
condensate >5%)
2 20
Liquid
Free of cavitation/w<10m/s 2 4
Cavitation producing
noise/w≤3m/s
2 4
Cavitation producing
noise/3<w<5m/s
2 10
Critical cavitation/w≤3m/s 2 10
Critical cavitation/3<w<5m/s 2 20
Flashing – 2 20
Multi-phase – 10 20
1)
No saturated steam
Q Flow rate
a Inlet length
b Outlet length
