Mountingoncontrolvalves
2
1,5
1
24 25 22
32
31
20 19
19 21 2023 18
29
30
2826
AB
27b
27a
Mountingposition
Attachmentto
NAMURrib
Attachmentto
rods
18 Lever N1, N2
19 Pin
20 Plate
21 Clip
22 Clamping plate
23 Screw
24 Pointer
25 Shaft
26 Lever of positioner
27a Coupling pin
27b Lock nut
28 Bracket
29 Studs
30 Plate
31 Nuts
32 Mountingbracket

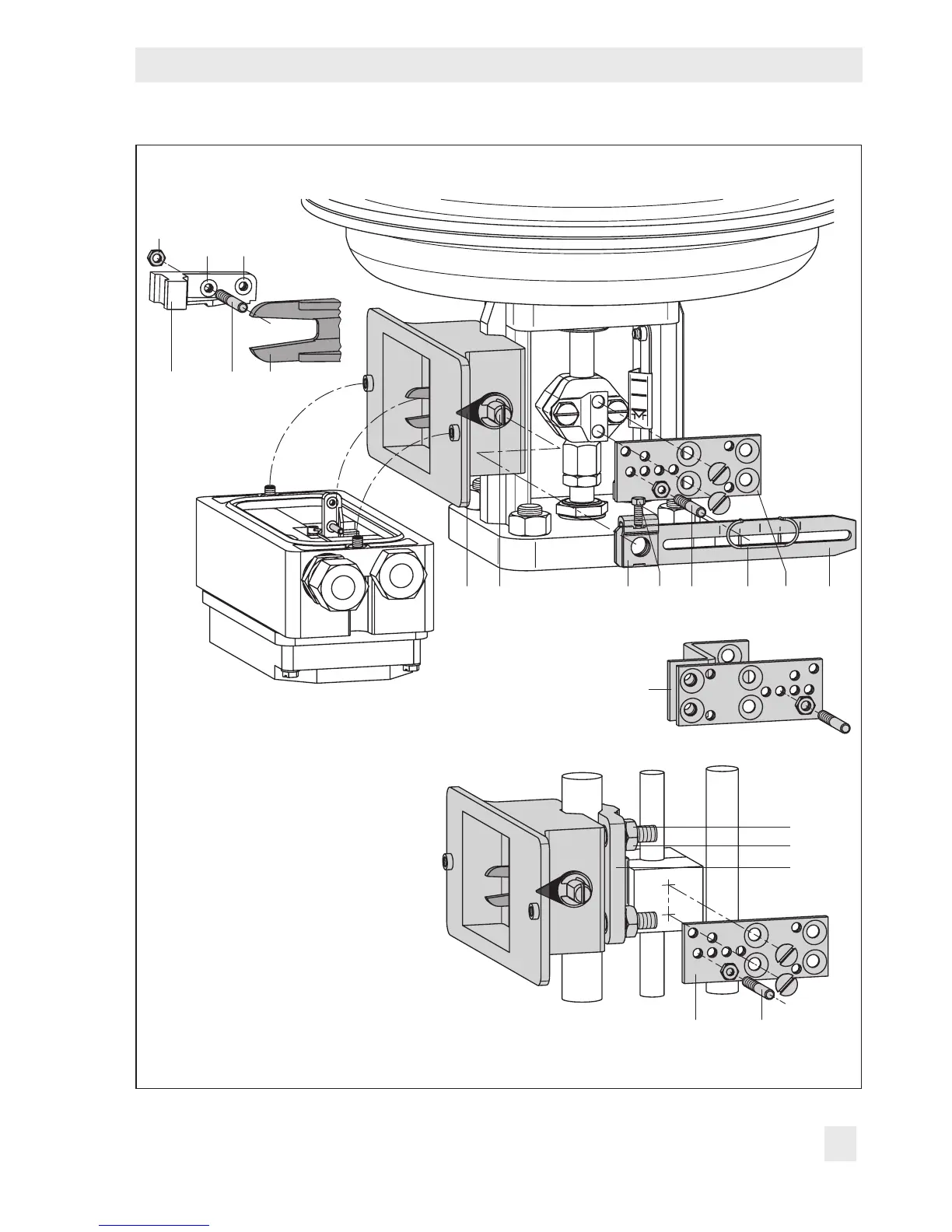

Fig.7: Attachment according to IEC60534-6 (NAMUR)
