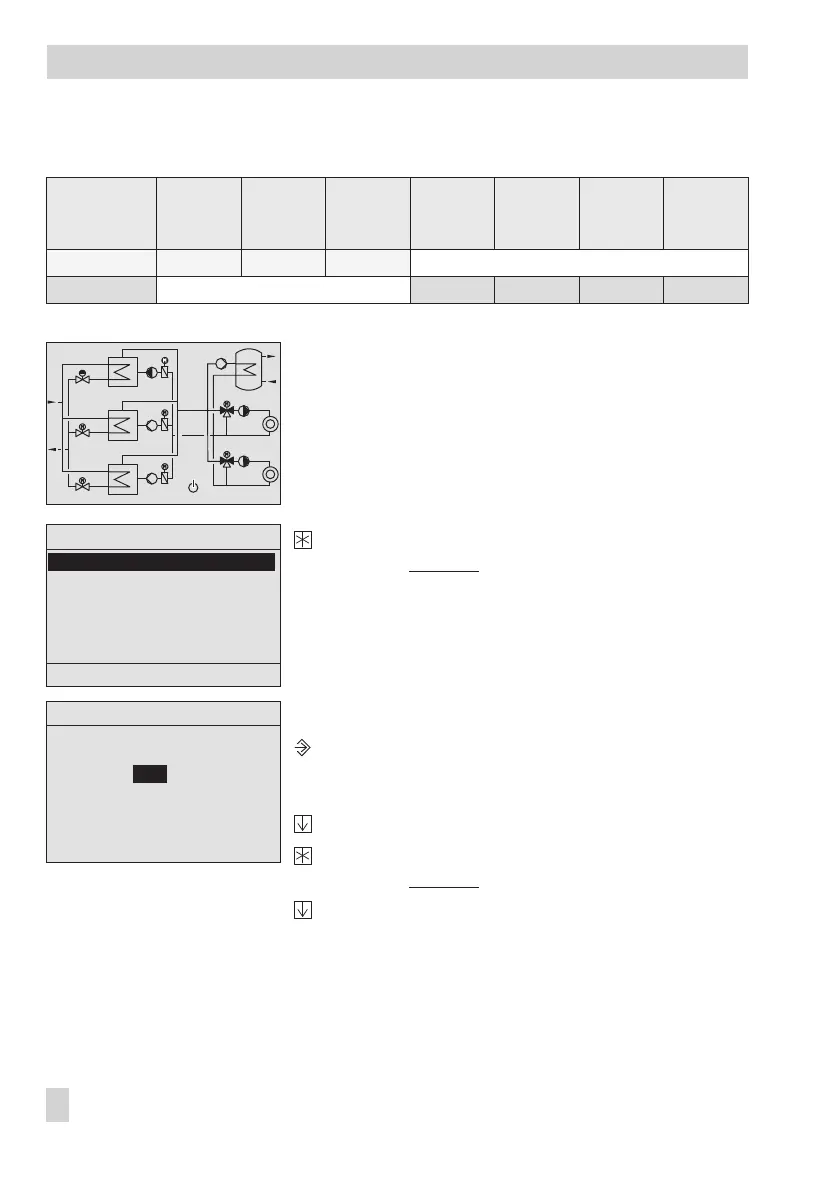

Samson TROVIS 5571 - Page 18

Example: System Anl 2.6 is to be configured.
Heat
exchanger
1
Heat
exchanger
2
Heat
exchanger
3
Heating
circuit 1
Heating
circuit 2
Heating
circuit 3
DHW
heating
System Anl 2.x • • •
System Anl x.6 • • – •
The controller with start screen
Exit the start screen.
Display: Übersicht
(Overview)
The 'Betriebsart' (Operating mode) menu item is
highlighted.
Opening the service menu
Activate the controller editing mode.
Display: 'Schlüsselzahleingabe' (Key number entry).
0000 blinks.
Enter application key number.
Confirm application key number.
Display: Übersicht (Overview)
Select Service.
18 EB 5571-2 EN
Start-up
60˚C
47˚C
100%
60˚C
48˚C
0%
60˚C
55˚C
59˚C
53˚C
86%
100%
11˚C
Übersicht
Betriebsart Standby
Freigabe 1+2
Führungstauscher Auto
Istwerte
Parameter
Service
Zurück
Schlüsselzahleingabe
0000
