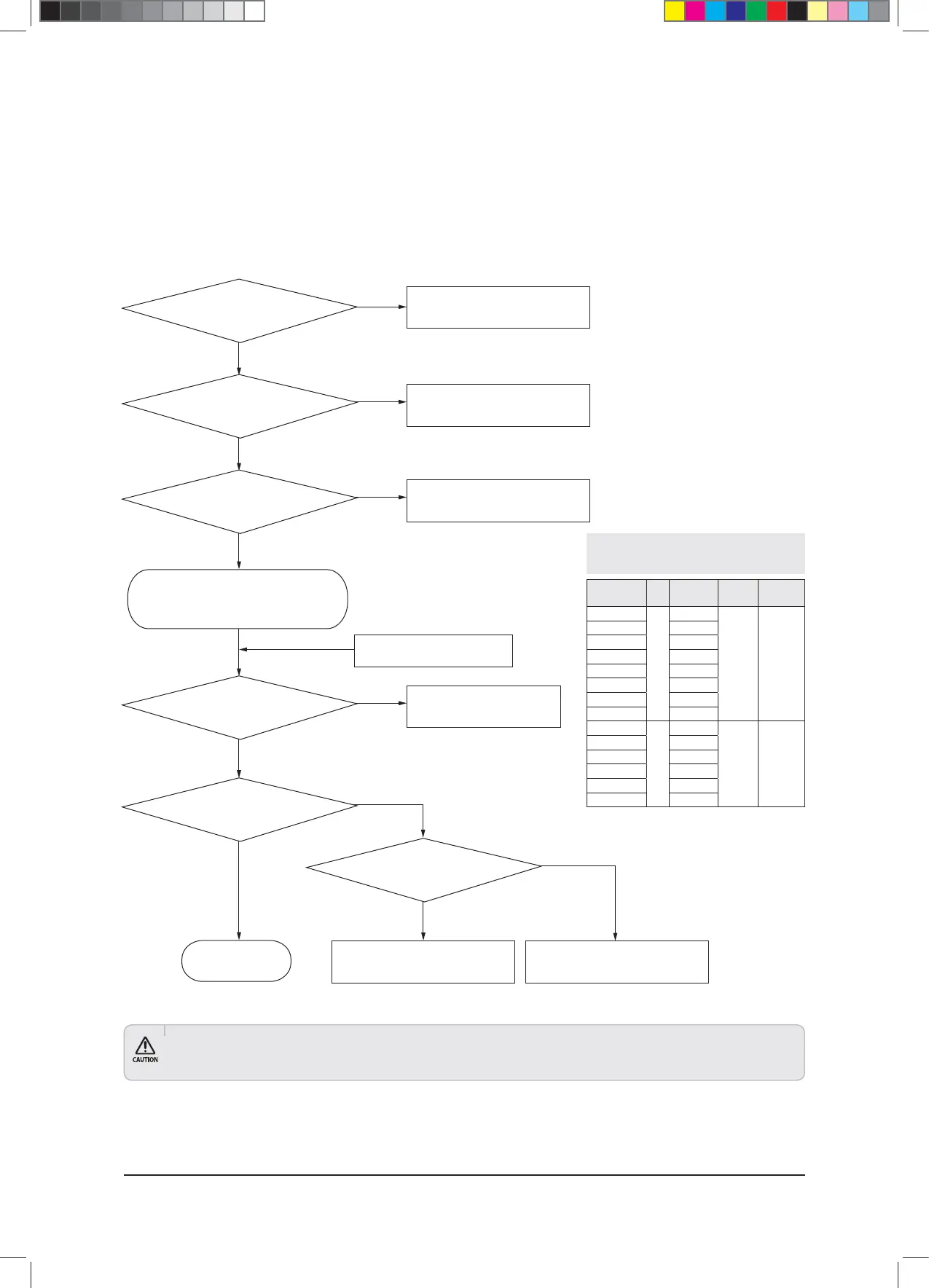

■ Compressor Operation Current Auto Inspect
t%FUFSNJOFTXIFUIFSPSOPUUIFDPNQSFTTPSJTQSPCMFNBUJDCZTFOTJOHUIFPQFSBUJPODVSSFOUPGUIFDPNQSFTTPS
t*GJUJTEFUFSNJOFEUIBUBOJOTQFDUJPOPGUIFDPNQSFTTPSTPQFSBUJPODVSSFOUJTSFRVJSFEQMFBTFQFSGPSNUIFJOTQFDUJPOJOUIFGPMMPXJOH
order.
● An “Inspection required” may occur even in normal conditions if outside the range guaranteed by the auto inspect mode or if the amount
PGSFGSJHFSBOUJTOPUOPSNBM"Oi*OTQFDUJPOSFRVJSFEwXJMMPDDVSXJUINPSFUIBOPGUIFOPSNBMDVSSFOU
Yes
Are the power supply
specifications of the outdoor unit and
connection normal?
Is the CT sensor
Connector connected
properly?
Is the Comp. CT value
at “0” when the outdoor unit is in
a Stop state?
1. Run test-run mode for at least 60 minutes
2. Run air operation for at least 10 minutes
3. Re-start auto inspect mode
Is the current reading
esult and CT sensor value the same for the
relevant compressor?
Is the compressor operation
current normal?
Is the interphase resistance
of the compressor normal?
End
Replace CT sensor
Yes
Yes
Yes
No
No
No
No
No
No
Check/correct supplied power
specifications and loose
Re-connect Connector
Replace CT sensor
Install current reading device
Please contact head office or corporate
body (Samsung distributor)
Replace compressor
❈ Compressor interphase resistance value
TUBOEBSEUPMFSBODF
Yes
Yes
Model Hz
Resistance
(Ω)
Coil
Temp.(°C)
Remark
ZPJ61KCE-TF7
60
1.950
25
DVM+4 up
(HP)
ZPJ72KXE-TF7 2.200
ZPJ83KXE-TF7 1.062
ZPJ91KXE-TF7 1.248
ZPI61KCE-TF7 1.960
ZPI72KCE-TF7 1.790
ZPI83KCE-TF7 1.640
ZPI91KCE-TF7 1.248
ZPJ61KCE-TFD
50
2.260
25
DVM+4 up
(HP/HR)
ZPJ72KCE-TFD 1.790
ZPJ83KCE-TFD 1.790
ZPI61KCE-TFD 2.260
ZPI72KCE-TFD 1.790
ZPI83KCE-TFD 1.790
