Samsung AVXTJH028EE - 2 Way Cassette Type

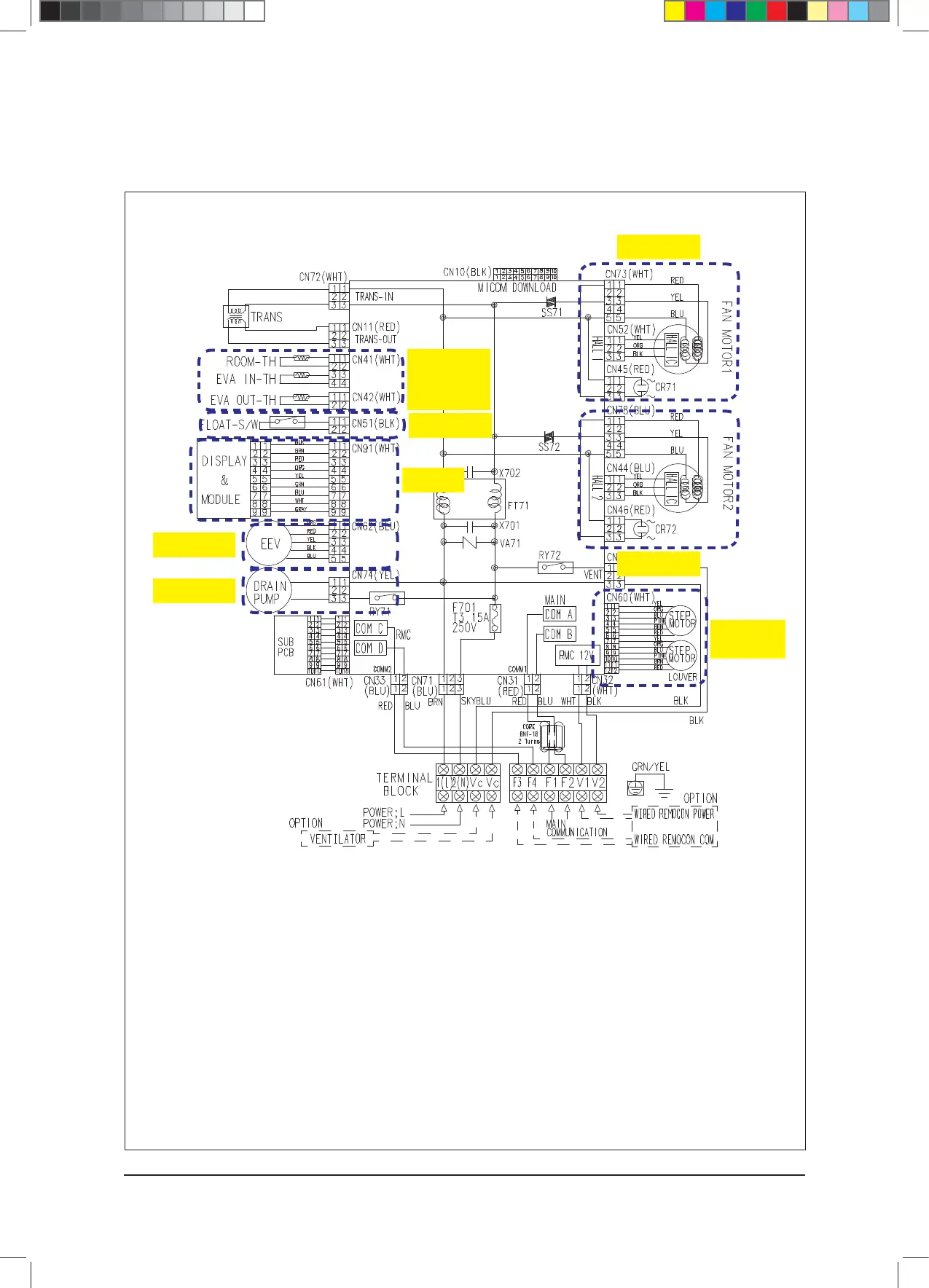

Wiring Diagram
Samsung Electronics 7-3
7-1-2 2way cassette type
Fan Motor 1 Part
Display Part
Indoor
Eva. In
Eva. Out
Sensor Part
Float S/W Part
This Document can not be used without Samsung’s authorization.
EEV Control Part
Drain Pump Part
Fan Motor 2 Part
Rouver Control
Part
