Samsung AVXTJH028EE - Duct Type(Slim, MSP, HSP)

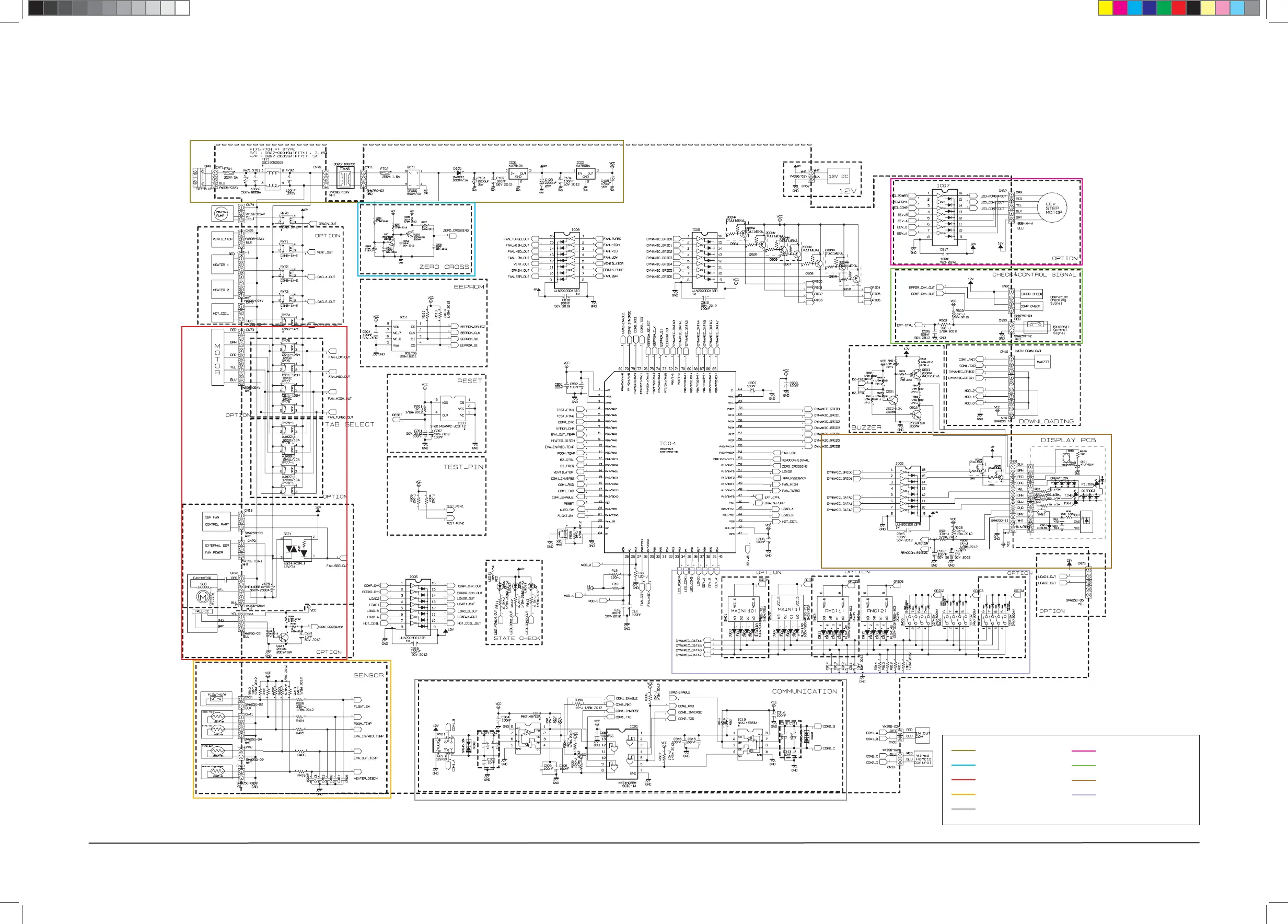

Schematic Diagram Schematic Diagram
8-1-5 Duct type(Slim, MSP, HSP)
This Document can not be used without Samsung’s authorization.
Samsung Electronics 8-7
SMPS Part
Zero Crossing Part
Motor Control Part
Temperature Sensor Part
Communication Part
EEV Control Part
External Control Part
Display Control Part
Address Setting Switch Part
