Samsung AVXTJH028EE - Ceiling

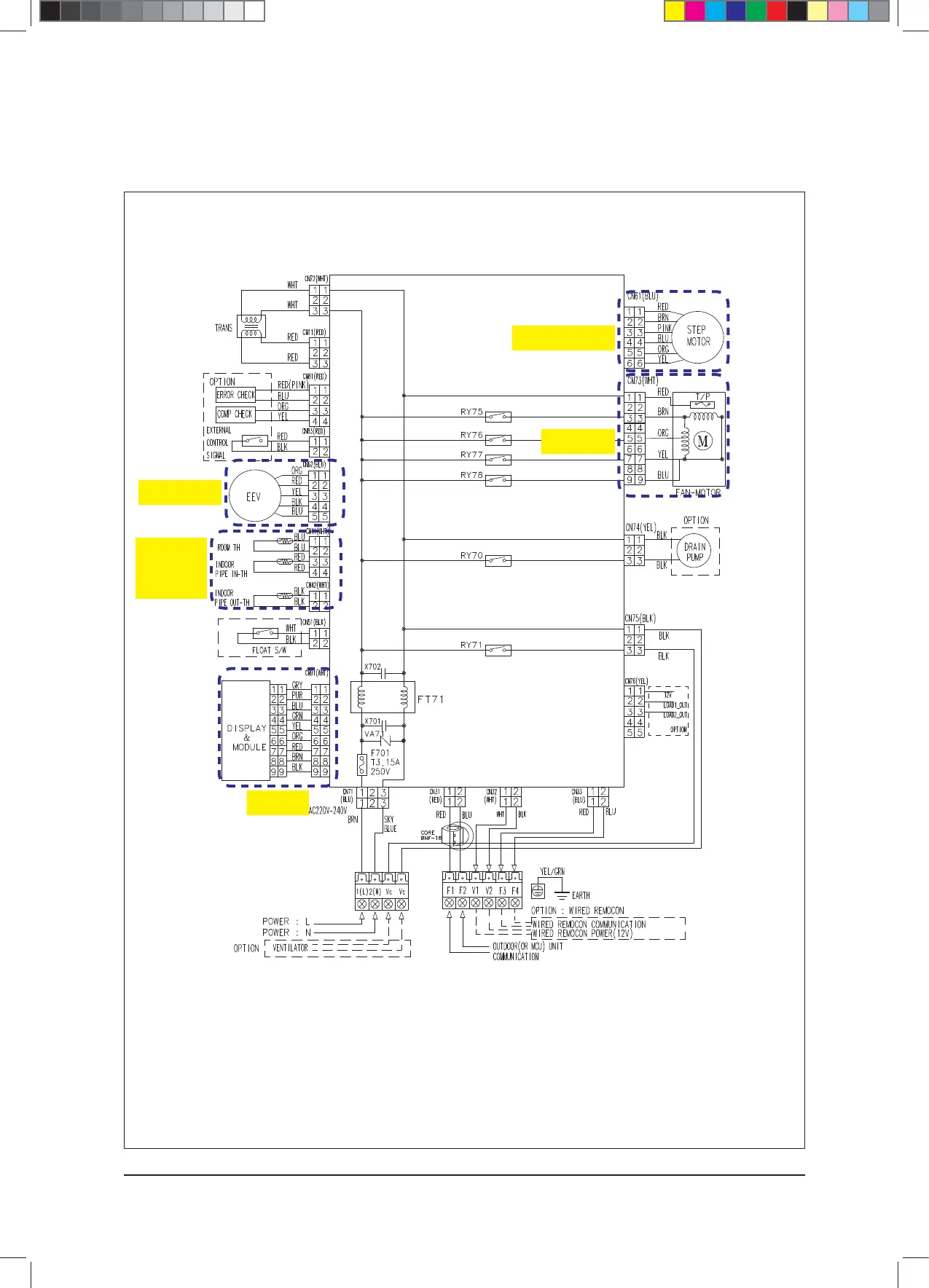

Wiring Diagram
7-12 Samsung Electronics
7-1-11 Ceiling
Indoor
Eva. In
Eva. Out
Sensor Part
Display Part
Fan Motor Part
EEV Control Part
This Document can not be used without Samsung’s authorization.
Rouver Control Part
