Samsung AVXTJH028EE - Wall Mounted Type(Vivace)

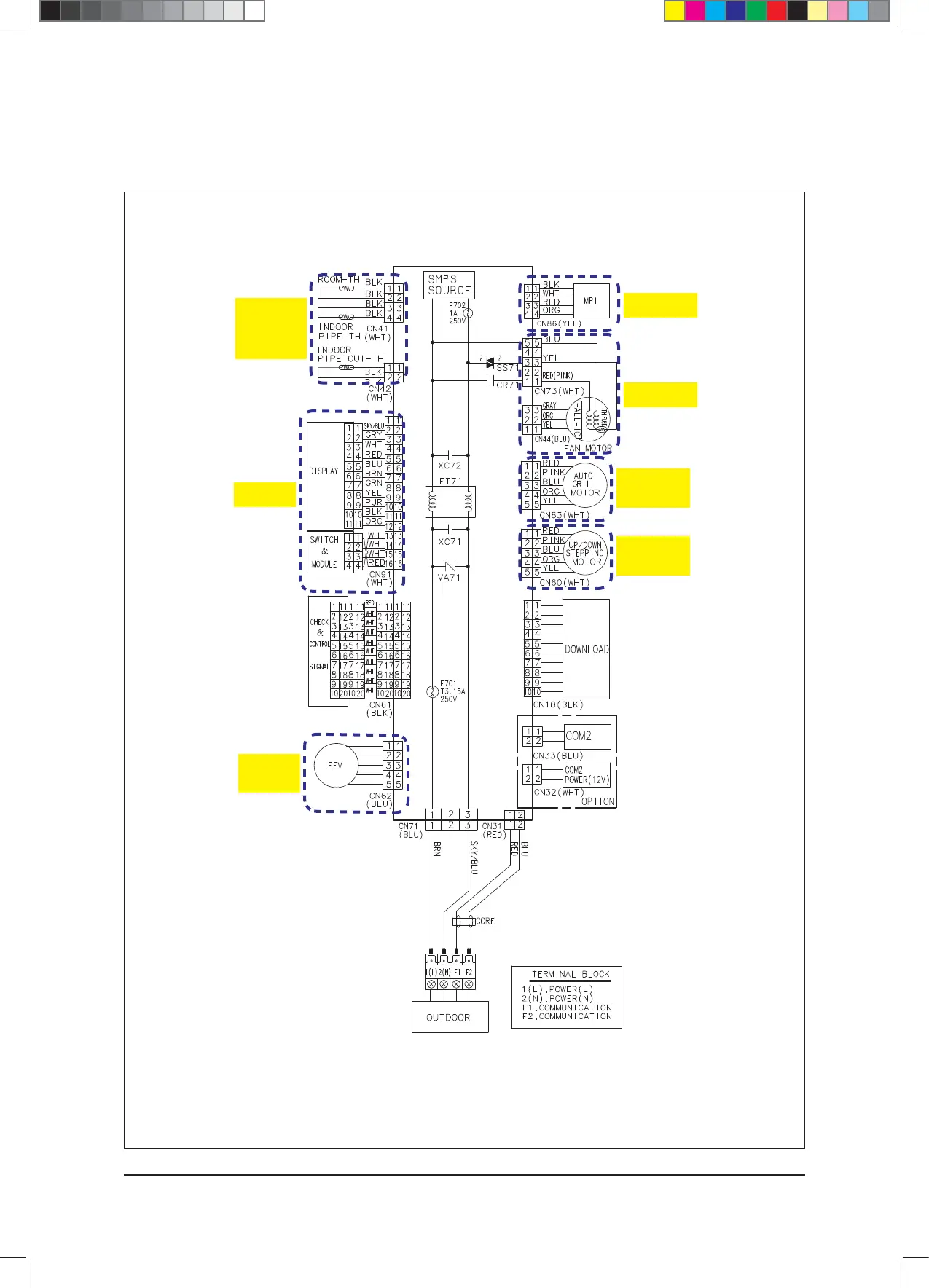

Wiring Diagram
Samsung Electronics 7-17
7-1-16 Wall Mounted type(Vivace)
Display Part
This Document can not be used without Samsung’s authorization.
Indoor
Eva. In
Eva. Out
Sensor Part
Fan Motor Part
Rouver Control
Part
Auto Grille
Part
MPI Part
EEV Control
Part
