8. Schematic Diagram
8-1 Indoor Unit
8-1-1 Slim 1 way cassette type

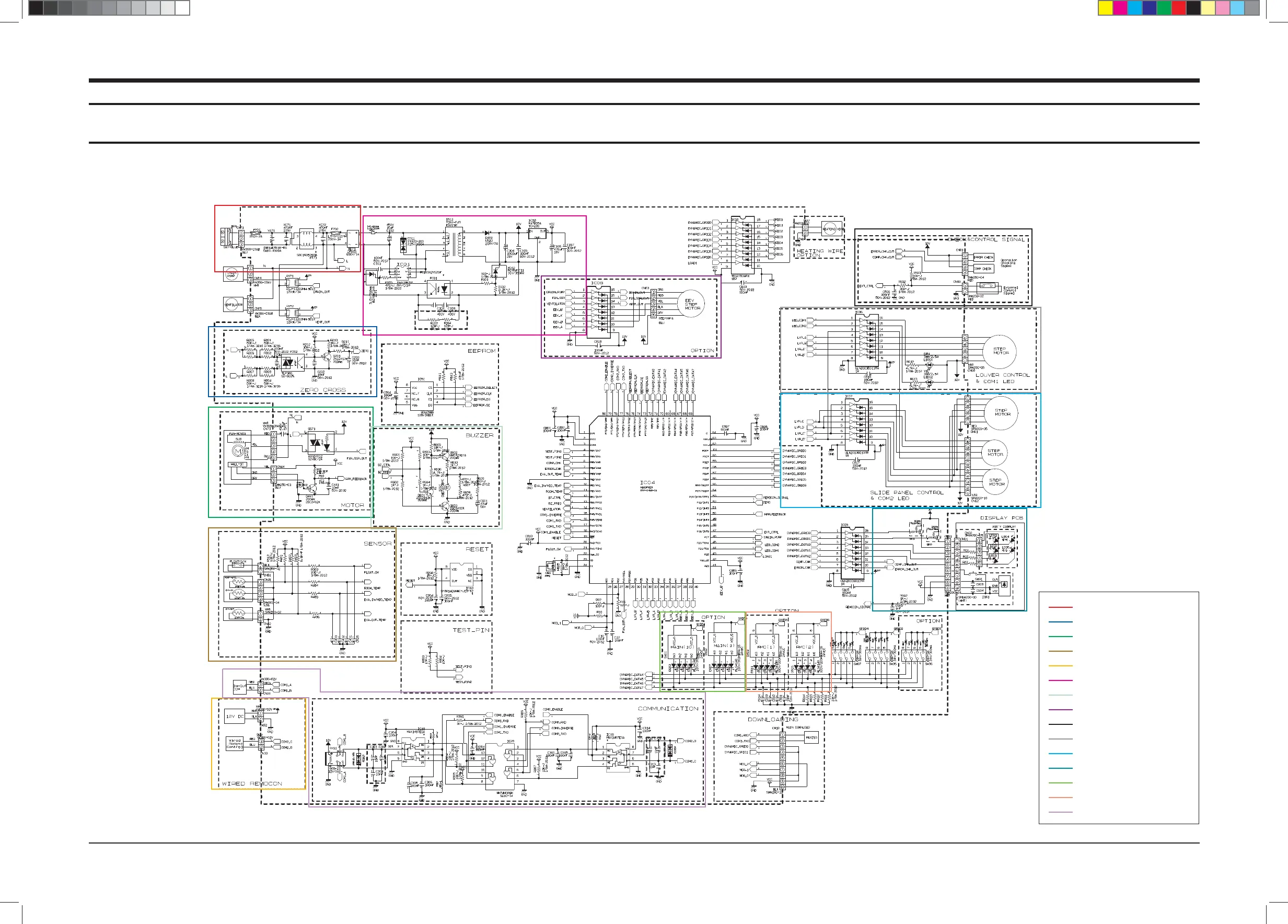

■ MAIN (AVXCSH022/028/036E✳, ND022/028/0361H✳✳✳)
AC Power Part
Zero Crossing Circuit Part
Motor Drive Part
Indoor Sensor Part
Wired Remote Controller Join
SMPS Circuit Part
Buzzer Circuit Part
EEV Circuit Part
External Contact Point Control Part
Louver Drive Part
Slide Panel Drive Part
Display Receiving Part
Main Adress Setting Switch
RMC Adress Setting Switch
485 Comm. Part(COM1)
