Samsung AVXTJH028EE - Assy Pcb Sub Driver

Schematic Diagram Schematic Diagram
Samsung Electronics 8-20
This Document can not be used without Samsung’s authorization.

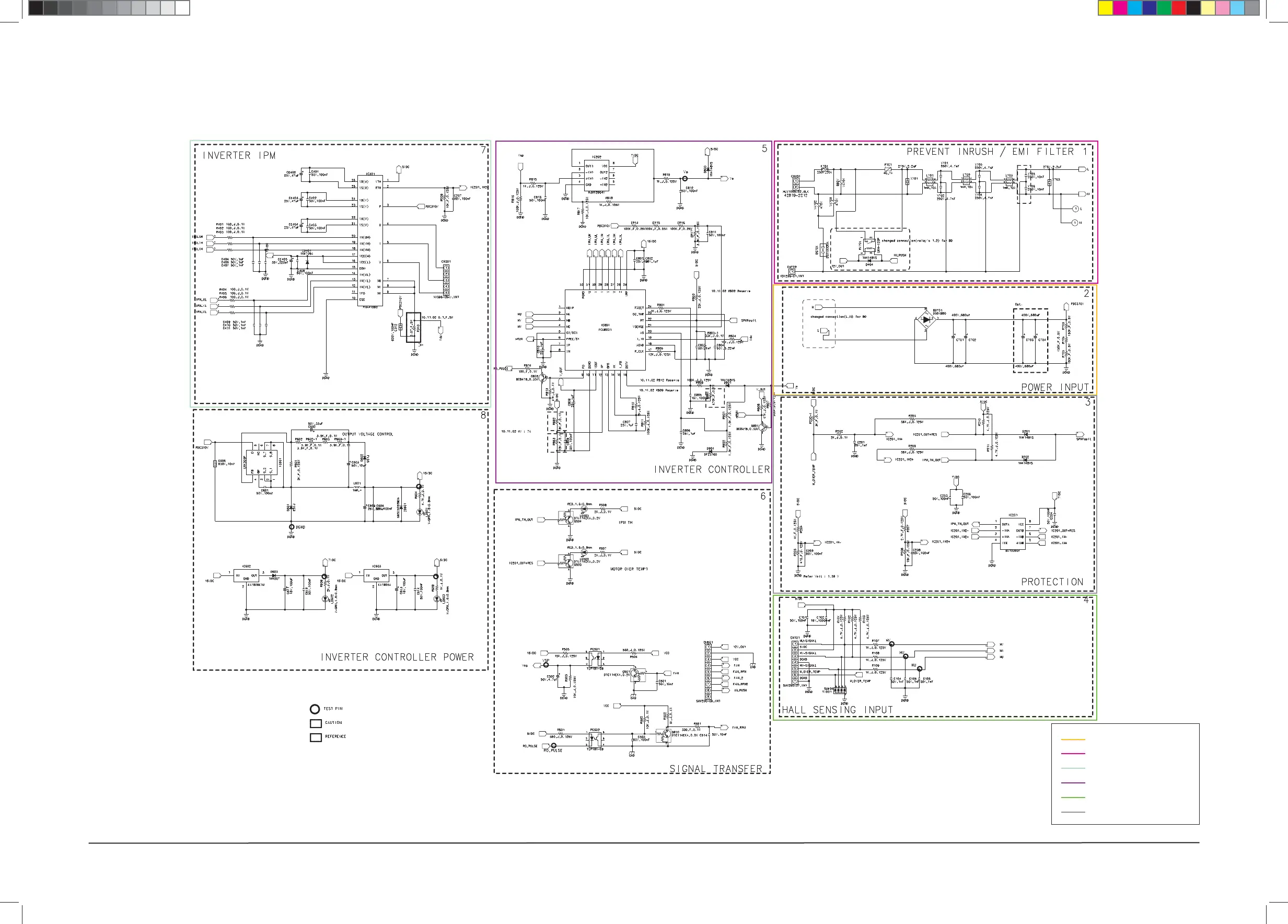

8-2-3 ASS'Y PCB SUB DRIVER
AC Power Part
EMI Filter Part
IPM Control Part
Motor Control Part
Motor Hall Sensing Part
Motor Protect Part
