1. Inspection Method
4-5-37 COND OUT Temperature Sensor Error (OPEN/SHORT)
(Operation) ×(Reservation) (Blast) ×(Filter) ×(Defrost)
t%JTDPOOFDUJPOPSCSFBLEPXOPGSFMFWBOUTFOTPS
t3FGFSUPUIFKVEHNFOUNFUIPECFMPX
Indoor Unit Display
Judgment Method
Special Cause
Outdoor Unit Display
Yes

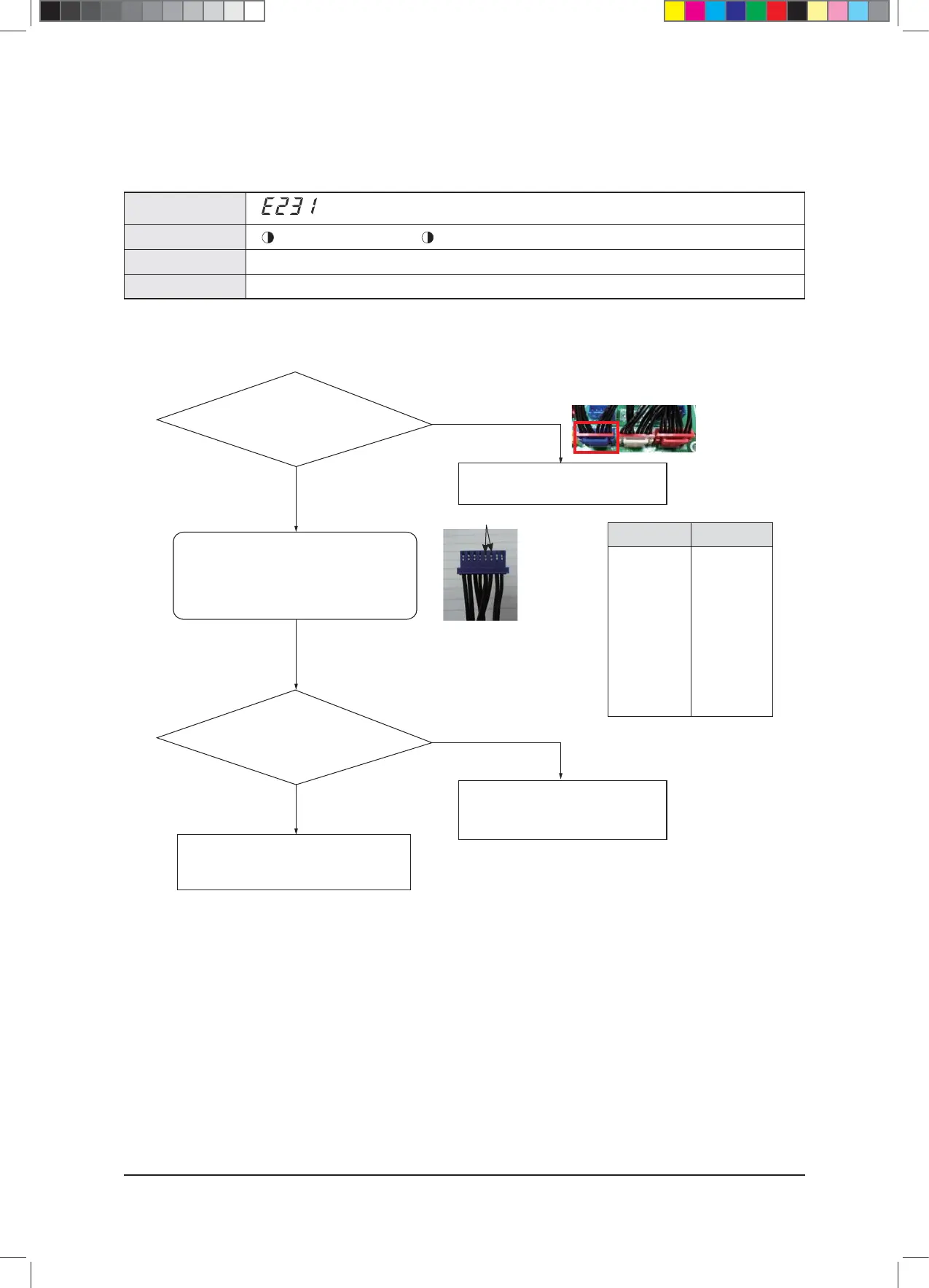

Did the outdoor
COND OUT sensor connector
break away from the PCB?
Did the resistance value
significantly stray from the following
temperature table?
After separating the outdoor COND OUT sensor
connector from the PCB, measure the
resistance value between the two terminals.
Restart operation after changing the PCB
Restart operation after connecting
the connector to the PCB
Change this part as it is the fault of the
outdoor COND OUT sensor itself.
Yes
No
No
Temperature (°C)
70
60
50
40
30
20
10
0
-10
Resistance (KΩ)
2.2
3.0
4.2
5.8
8.3
12.1
18.0
27.3
43.0
Resistance value measure part
