4-5-46 Low-Pressure Sensor Error (OPEN/SHORT)
(Operation) (Reservation) (Blast) ×(Filter) ×(Defrost)
t%JTDPOOFDUJPOPSCSFBLEPXOPGSFMFWBOUTFOTPS
t3FGFSUPUIFKVEHNFOUNFUIPECFMPX
Indoor Unit Display
Judgment Method
Special Cause
Outdoor Unit Display
■ Low-pressure sensor OPEN/SHORT error determination method
1. Identifies from when power is supplied or 2 minutes after RESET, and only when set is stopped.
2. An OPEN/SHORT error will occur if the input voltage standard range of 0.5V ~ 4.95V is exceeded.

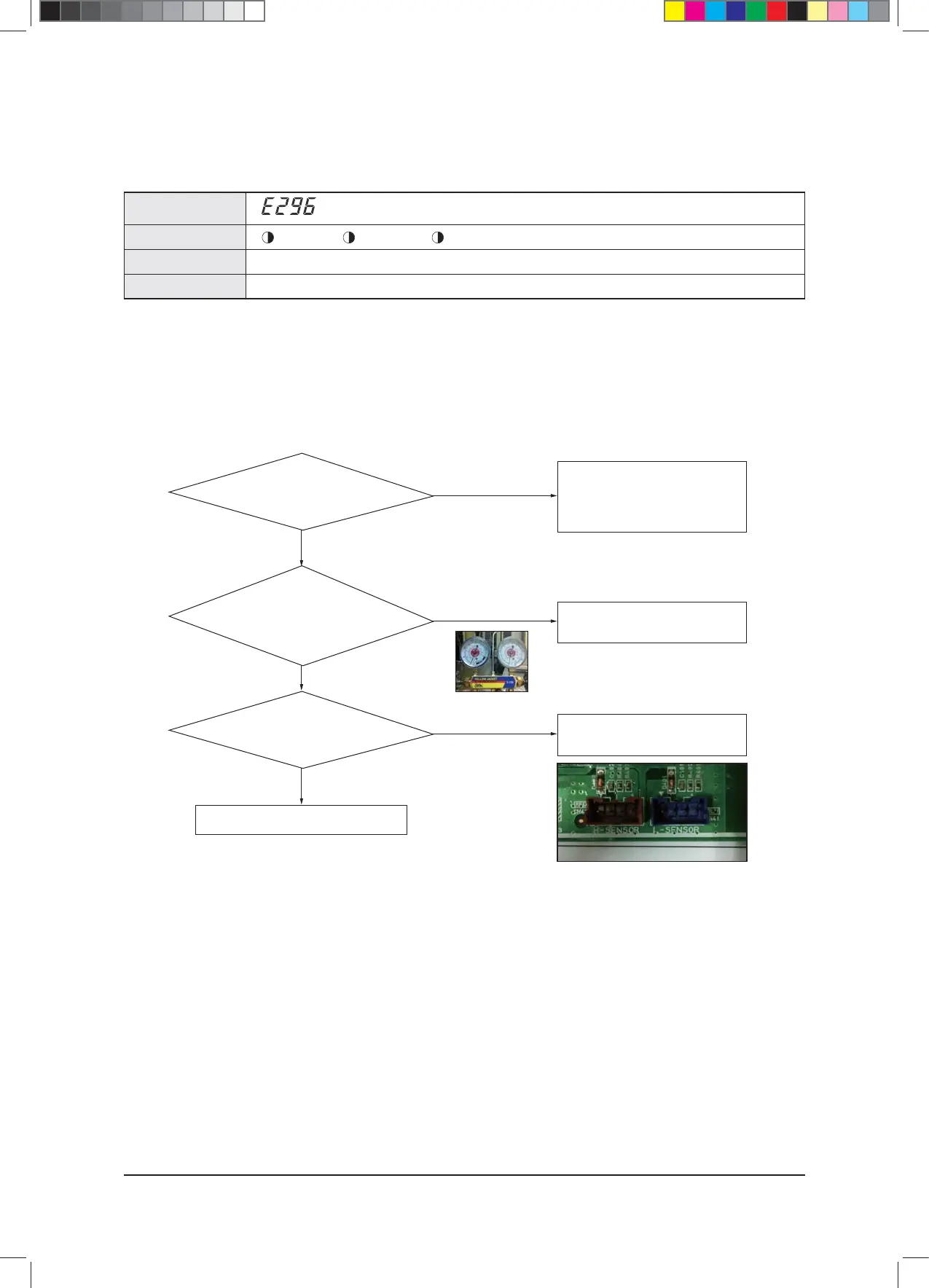

1. Inspection method
Did the low-pressure
connector get disconnected
from the PCB?
Out of the PCB
low-pressure sensor terminals,
is there voltage between pins 3
and 4 5V?
Replace low-pressure sensor
Is there refrigerant inside
the set? (Please check by connecting the menu
folder gauge to
the service valve)
Refill refrigerant
after vacuum
Replace PCB
No
Please re-inspect after
connecting the connector
to the PCB
No
Yes
Yes
Yes
No
The ▼ mark is the 1st pin on the PCB.
