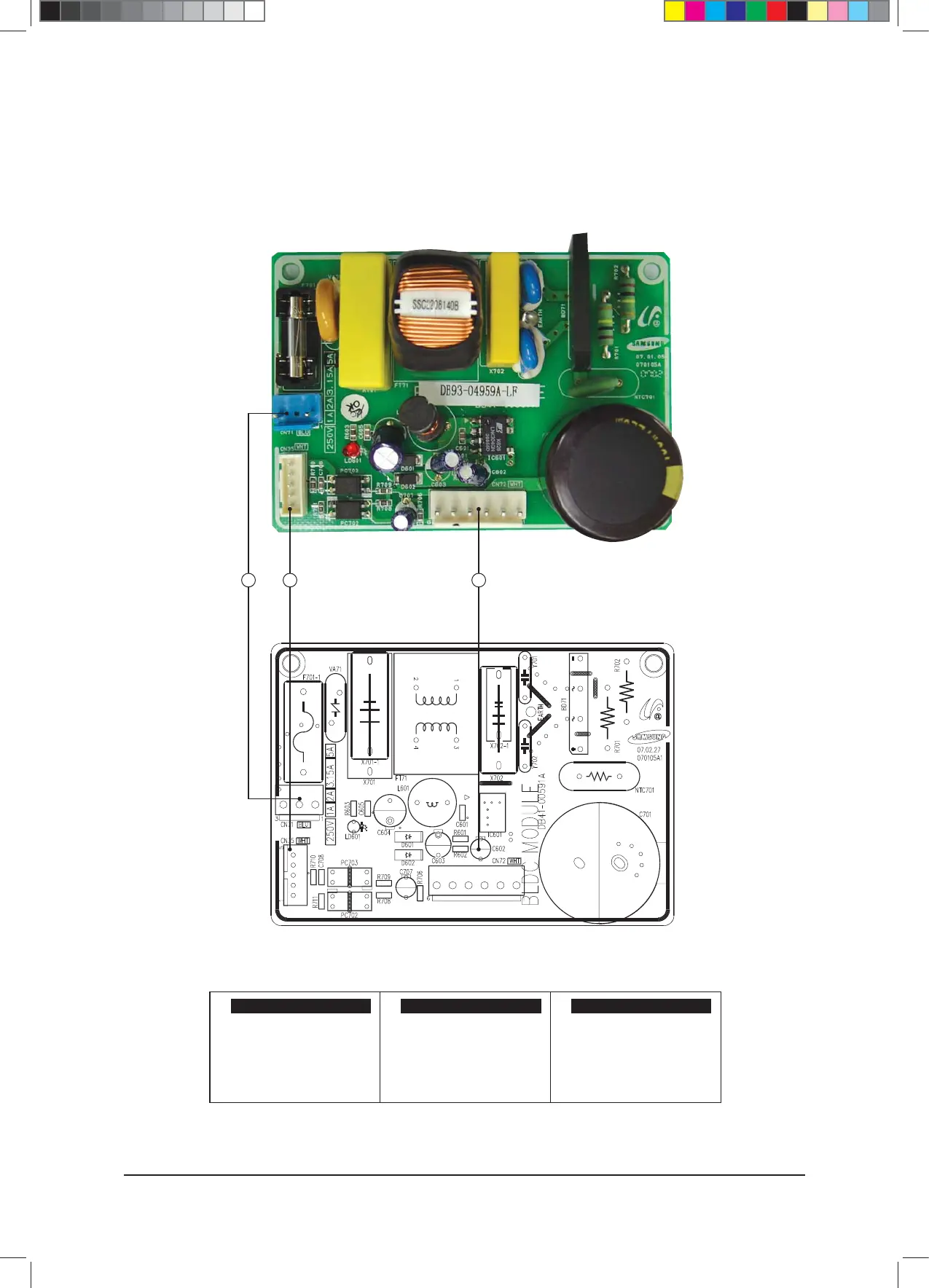

PCB Diagram and Parts List
6-11 Samsung Electronics
2 31
Duct type(Slim)
■ SUB PCB
①
#1: AC Power L
#2: AC Power N
②
#1: ROOM Temp. Sensor
#2: GND
#3: EVA IN Temp. sensor
#4: GND
③
#1: DC310V
#2: not used
#3: GND
#4: DC15V
#5: Motor Control signal
#6: Motor Feedback Signal
CN71-AC Input
CN35- MAIN PCB Connection CN72- FAN Motor output
