PCB Diagram and Parts List
6-25 Samsung Electronics
Console(cont.)

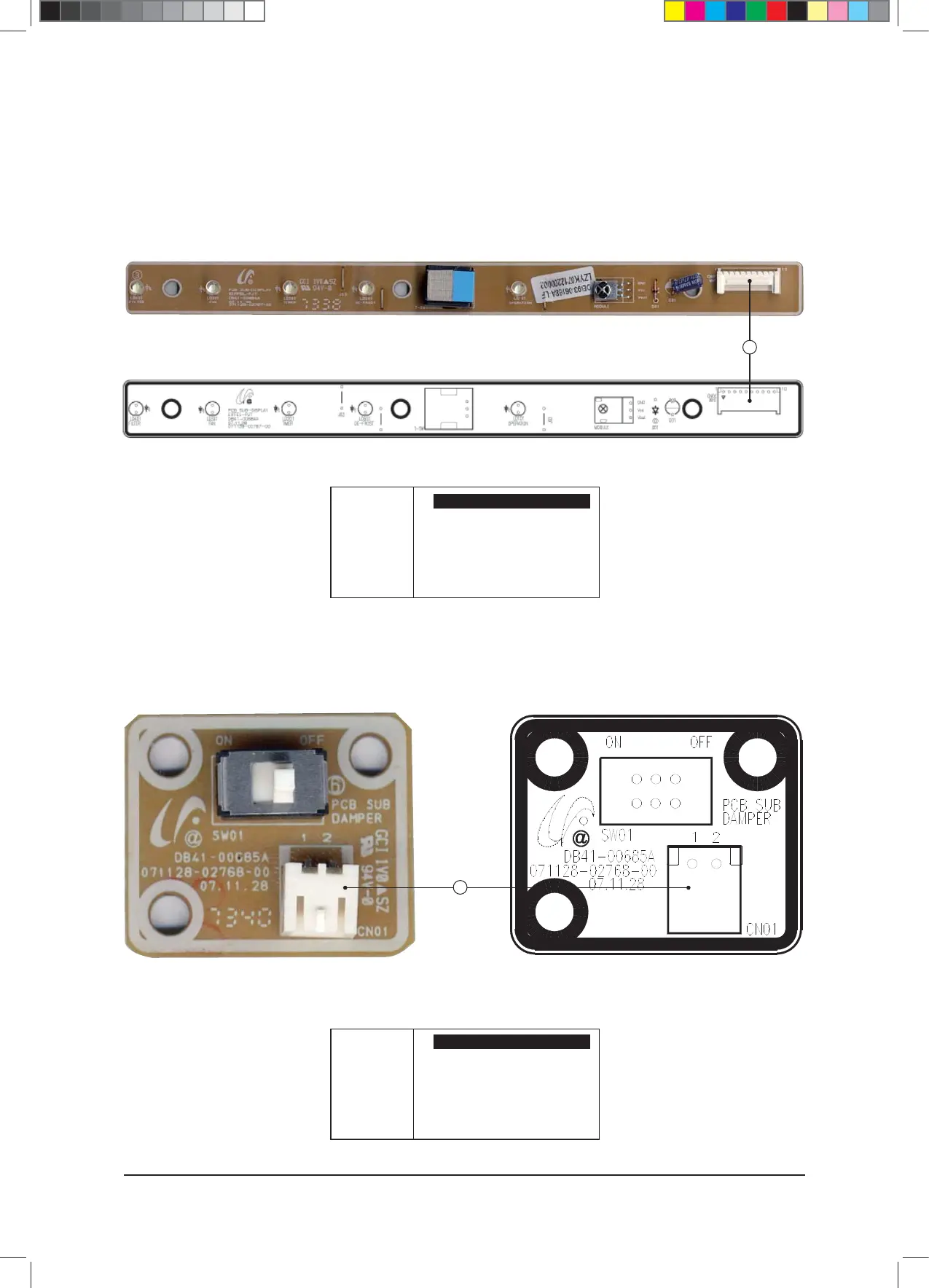

■ DISPLAY
DC Connector
①
#1,#2,#3,#4,#5: Display LED Control
#6: TOUCH S/W Reset(DC5V)
#7: TOUCH S/W out(DC5V)
#8: Receive REMOCON Signal
#9: GND
#10: VCC(DC5V)
CN01-Panel Display
1
■ DAMPER
1
DC Connector
①
#1: DC5V
#2: GND
CN01-Damper S/W
