PCB Diagram and Parts List
6-37 Samsung Electronics
Wall-mounted type(Neo Forte with EEV)(cont.)

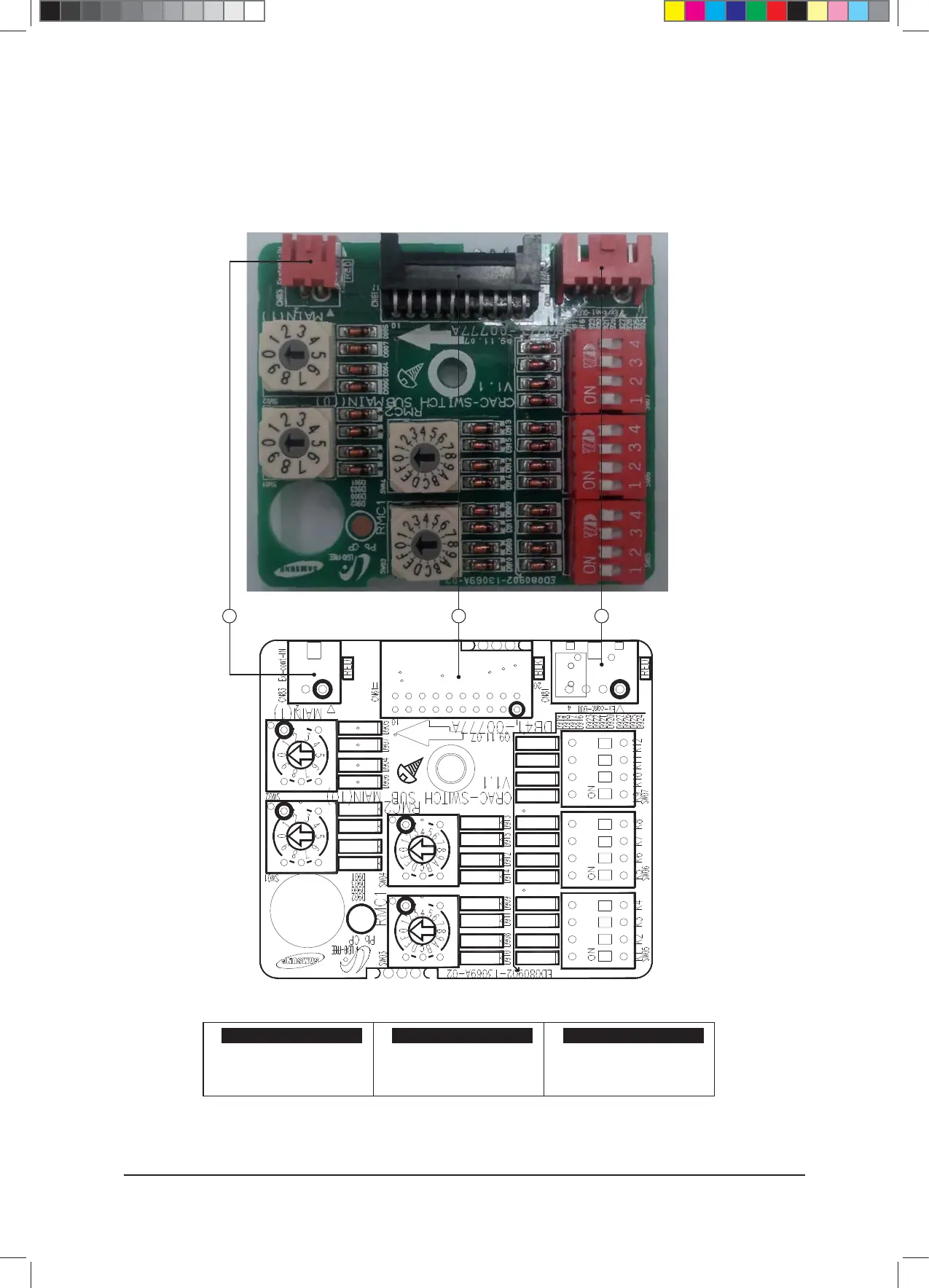

■ SUB SWITCH
1514 16
⑭
#1 : On/Off Contact Switch Input
#2 : GND
⑮⑯
#1, #3 : DC12V
#2 : Error Check Out
#4 : Comp. Check Out
CN83-External Control CN61-Connect to Main CN42-External Control
