Schematic Diagram Schematic Diagram
8-1-3 4 way cassette type
This Document can not be used without Samsung’s authorization.
Samsung Electronics 8-5

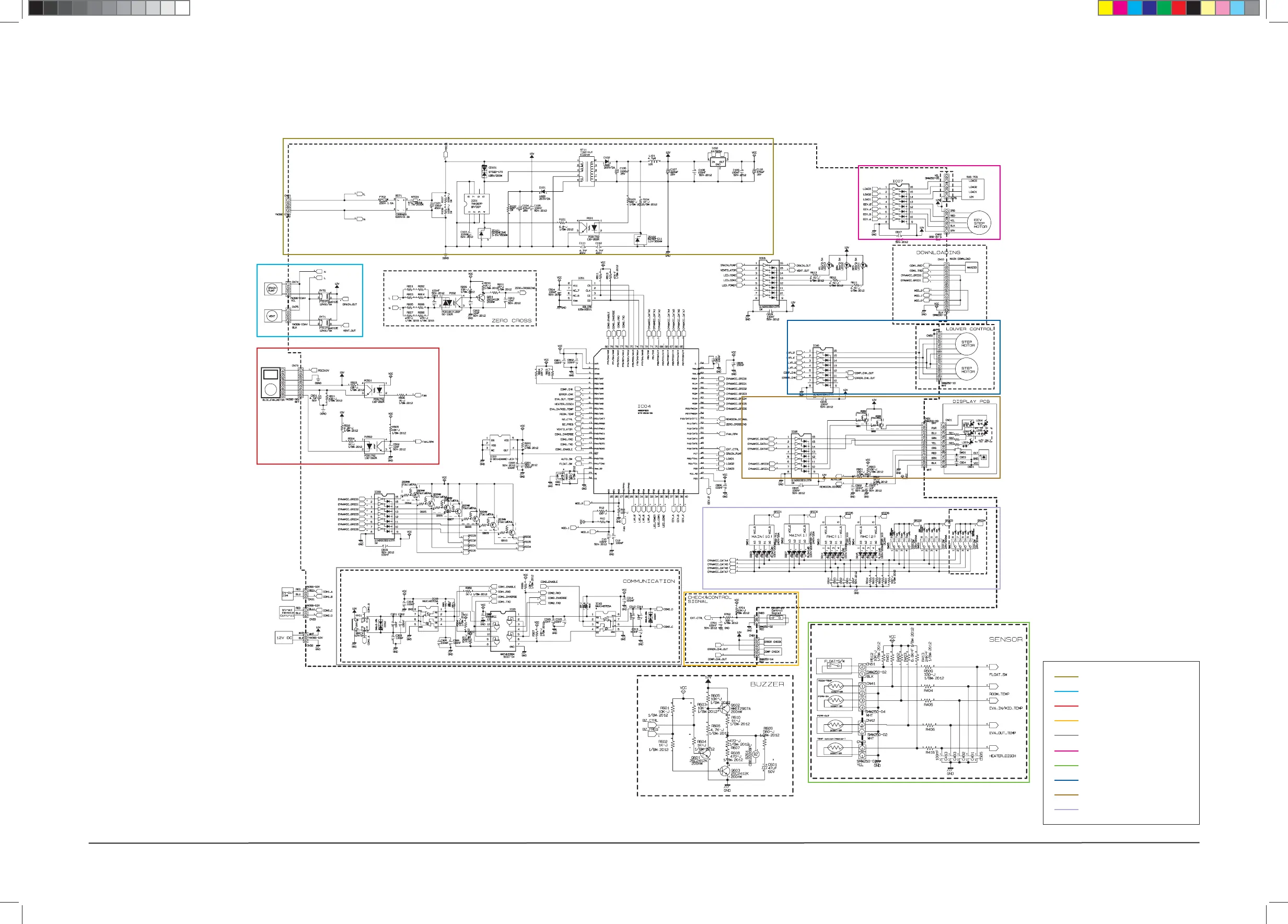

SMPS Part
Loading Part
BLCD Fan Motor Control Part
Temperature Sensor Part
485 Communication Part
EEV & SUB-PCB Part
External Control Part
Louver Control Part
Display PCB Part
Address & Option Switch Set Part
