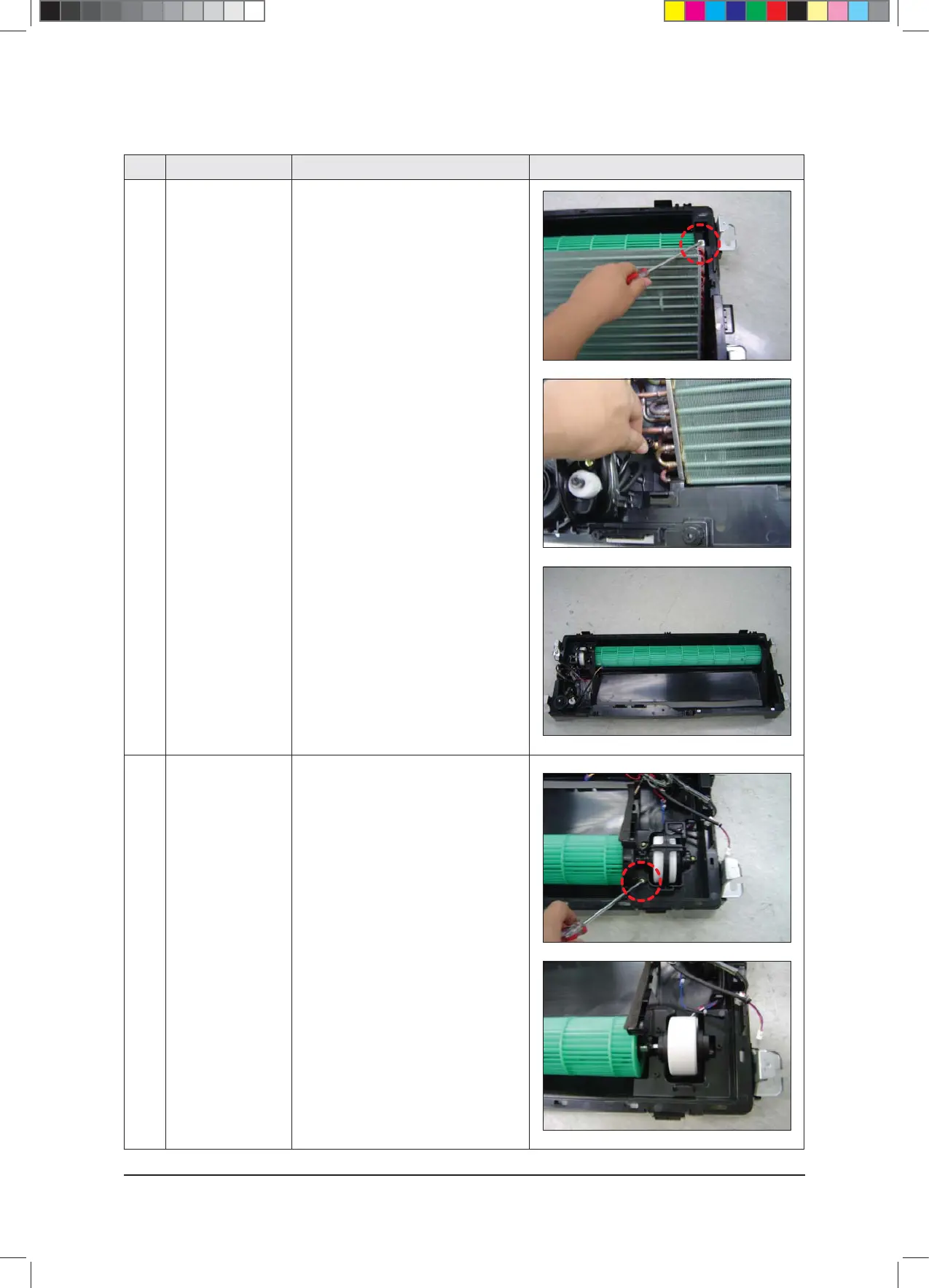

Disassembly and Reassembly
3-7 Samsung Electronics
No Parts Procedure Remark
5 Heat Exchanger 1) Undo fixing screw in the Heat
Exchanger. (Use +Screw Driver)
2) Separate an Indoor Sensor from the
Heat Exchanger.
3) Separate the Heat Exchanger from the
Indoor Unit.
6 Cross Fan 1) Undo 3 fixing screws on the Cover
Fan Motor. (Use +Screw Driver)
2) Separate the Cover Fan Motor from
the Indoor Unit.
