Disassembly and Reassembly
3-21 Samsung Electronics
No Parts Procedure Remark

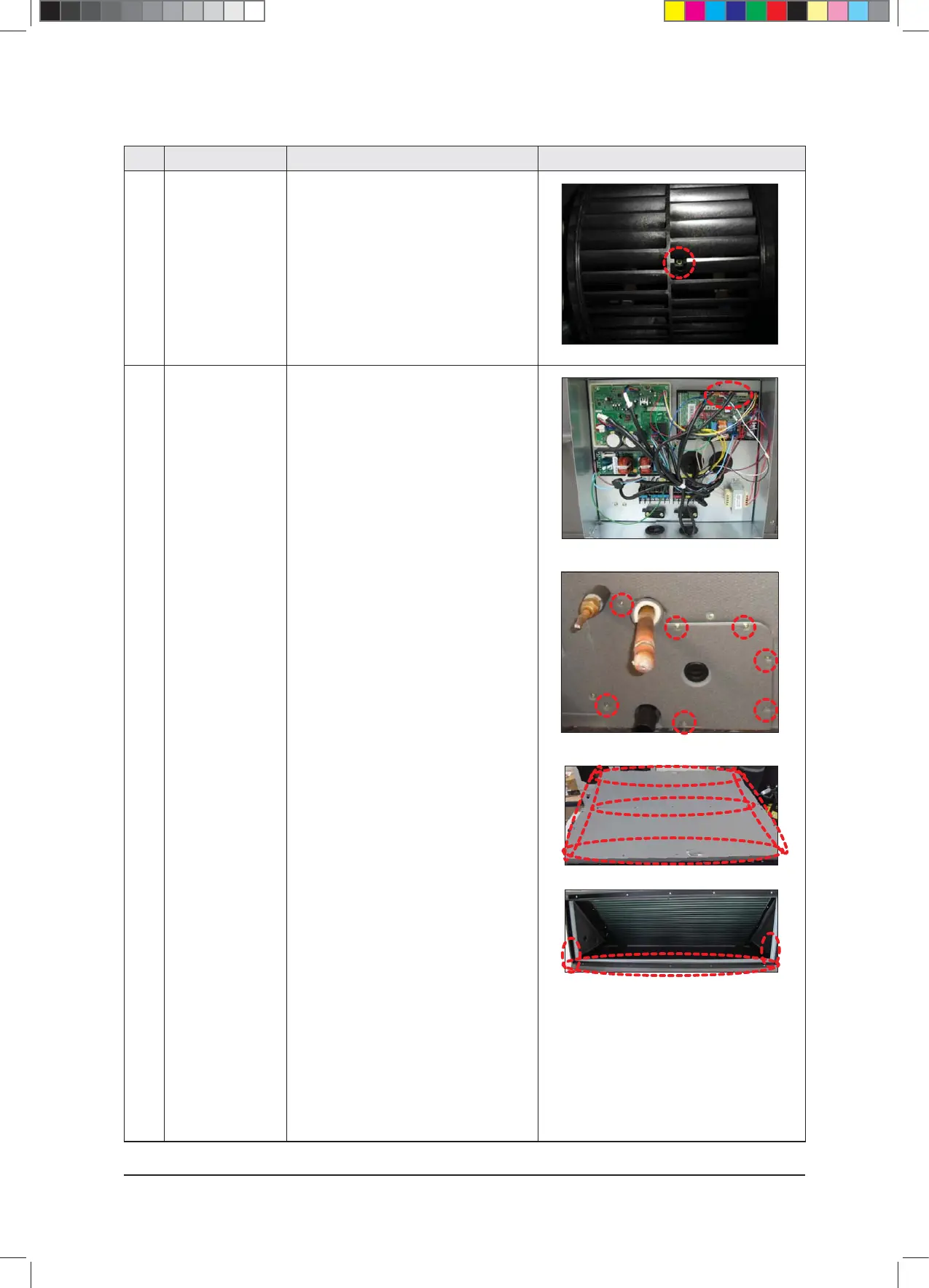

5) Unscrew bolt and Separate Blower from the
motor. (Use +Screw Driver)
2 EVAPORATOR &
DRAIN-PAN
1) Detach EEV and Sensor connectors from the
PCB. (Use +Screw Driver)
2) Unscrew 8 screws and Detach Cover-Pipe.
(Use +Screw Driver)
3) Unscrew 31 screws and detach Cabinet-
Base Blower andCabinet-Base Drain.
(Use +Screw Driver)
