Disassembly and Reassembly
3-27 Samsung Electronics

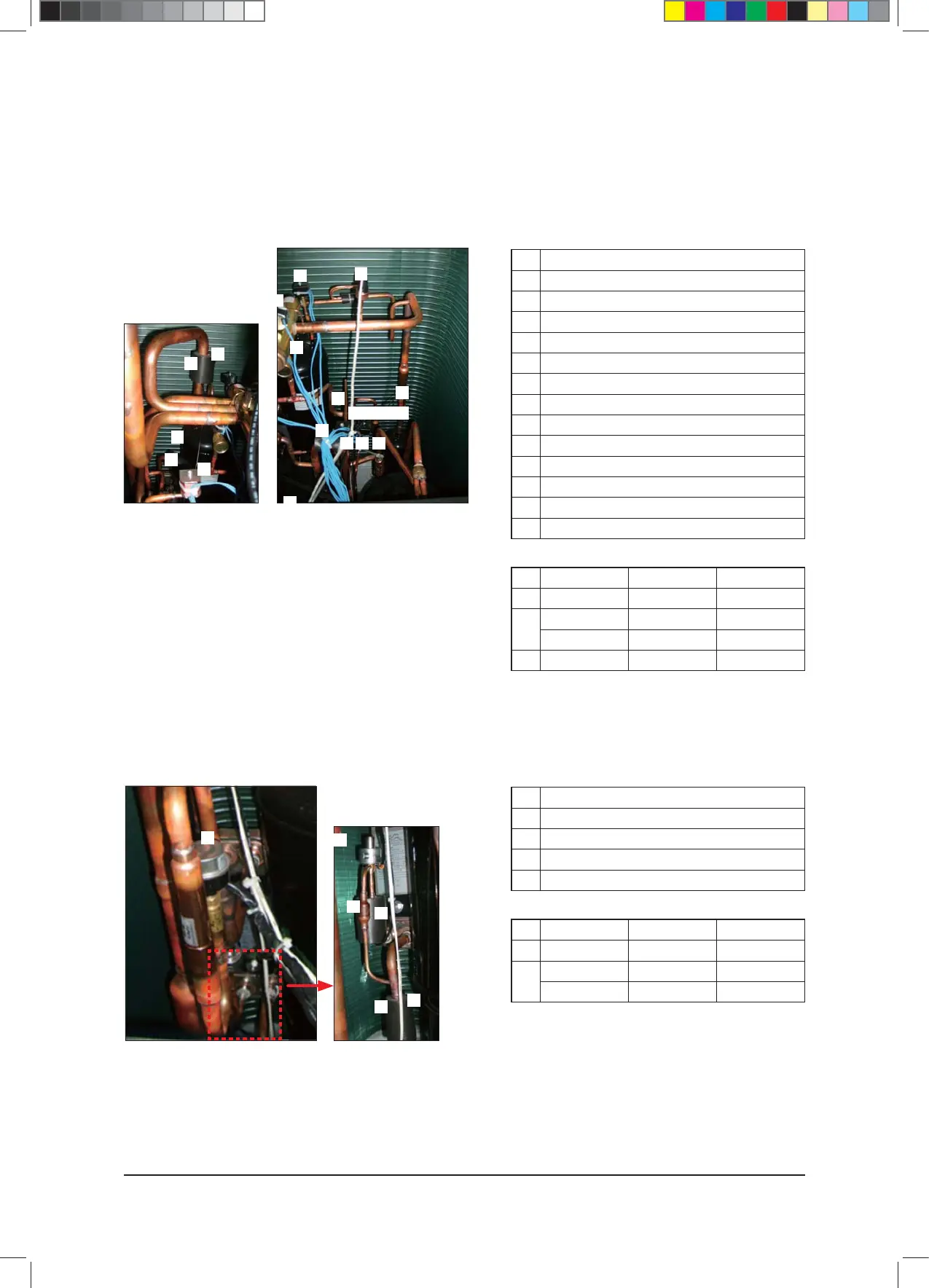

Binding Wire Small Chassis (RD080/100/120HHXG✳)
QBinding Wire 1
QBinding Wire 2
Valve & Sensor
No Valve & Sensor
󱁿
EVI Bypass Valve
󱂀
Oil-gas valve
󱂁
PWM Valve
󱂂
Vapor Injection Valve 1
󱂃
Vapor Injection Valve 2
󱂄
High Pressure Switch
󱂅
High Pressure Sensor
󱂆
Low Pressure Sensor
󱂇
Hot-gas valve
󱂈
4 way valve
󱂉
Liquid Byass Valve
󱂊
Temperature Sensor Suction (Black Wire)
󱂋
Temperature Sensor EVI Suction (Wihte Wire)
Insulation
No HP Insu Code Binding Wire
󱂓
8/10/12 DB62-04154B 1,2,4,5,9,10
󱂔
12 DB62-03808G -
8/10 DB62-03808B -
󱂖
8/10/12 DB62-03808C
-
Valve & Sensor
No Valve & Sensor
󱁿
Main EEV
󱂀
EVI EEV
󱂁
Temperature Sensor EVI In (Black Wire)
󱂂
Temperature Sensor Liuid Pipe (White Wire)
Insulation
No HP Insu Code Binding Wire
󱂓
8/10/12 DB62-03808E -
󱂔
8/10 DB62-03808E -
12 DB62-03808C -
󱂋
󱂔
󱂊
󱂈
󱂇
󱁿
󱂅
󱂄
Binding Cable Tiie
󱂀
󱂓
󱂁
󱂂 󱂃 󱂆
󱂉
󱂕
󱂓
󱂂
󱂀
󱁿
󱂁
󱂓
󱂓
