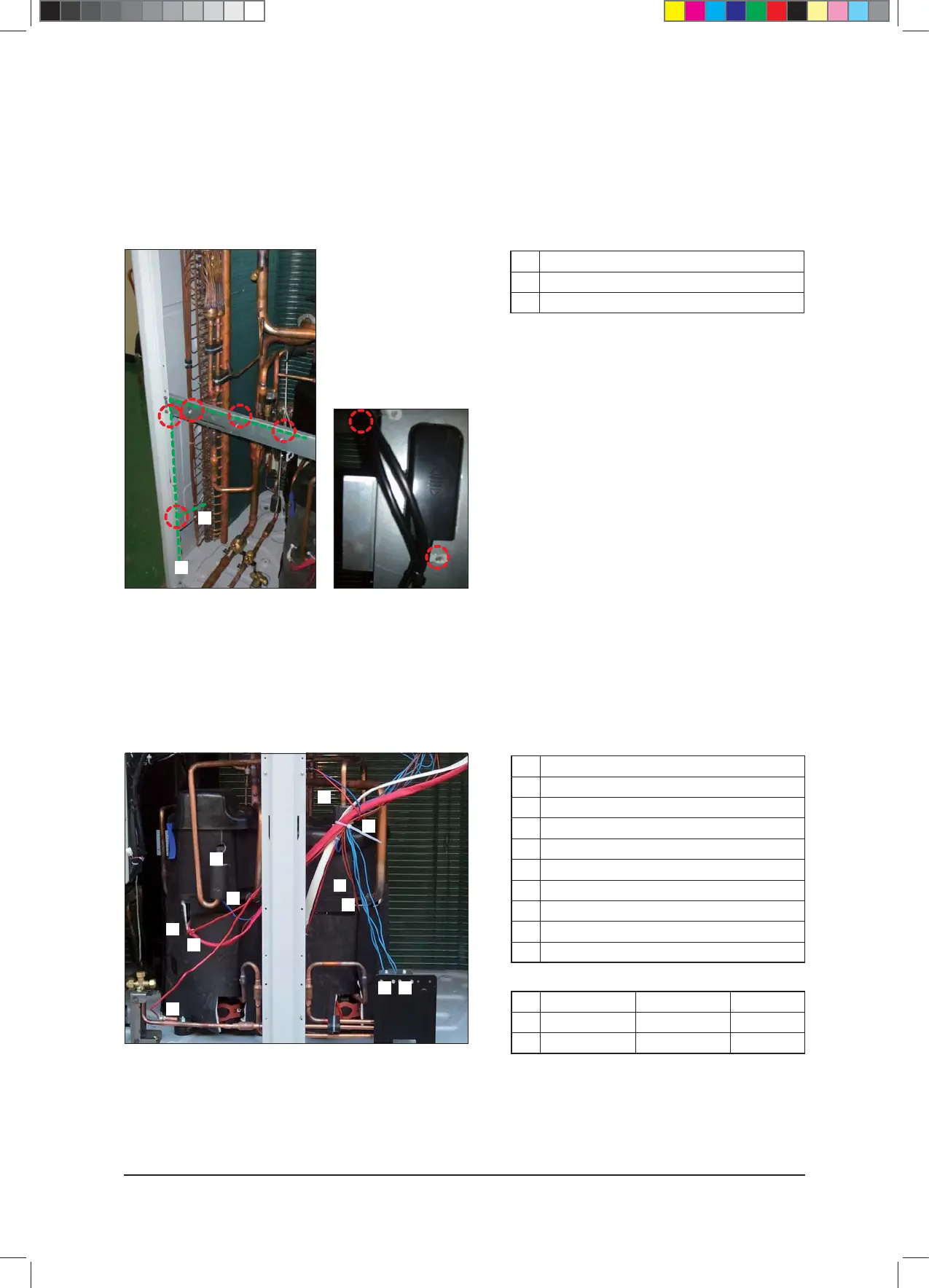

Pipe Welding Position (RD140HHXG✳) (cont.)
QBending Wire 3
QBending Wire 4
Valve & Sensor
No Valve & Sensor
󱁿
Temperature Sensor Outside (White Wire)
󱂀
Temperature Sensor Cond Out (Black Wire)
Valve & Sensor
No Valve & Sensor
󱁿
Oil Balance Valve 1
󱂀
Oil Balance Valve 2
󱂁
Temperature Sensor Discharge 1 (Blue Wire)
󱂂
Temperature Sensor Discharge 2 (Blue Wire)
󱂃
CCH1 (Orenge Wire)
󱂄
CCH2 (Orenge Wire)
󱂅
Temperature Sensor Oil Balance (Red Wire)
󱂆
Temperature Sensor Sump 1 (Red Wire)
󱂇
Temperature Sensor Sump 2 (Red Wire)
Insulation
No HP Insu Code Binding Wire
󱂓
16/18/20/22 DB62-03808C
󱂔
16/18/20/22 DB62-03808C
1,2,3,4,5,6,7,8,9
󱁿
󱂀
t5IFPVUTJEFUFNQFSBUVSFTFOTPSBOEUIF$POE0VUUFNQFSBUVSFTFOTPS
BSFUPCFmYFEXJUIUIFDPOUSPMCPYBMPOHUIFJOUFSJPSTJEFPGUIF
cabinet and the interior of beam as shown in the image.
t'JYUIFNPUPSXJSFTPUIBUJUEPFTOPUUPVDIUIFIFBUTJOLQMBUFCZVTJOH
IPMEFSXJSFBOEmYJUCFMPXUIFDPWFSNPUPSXJSFTPUIBUJUJTCFOUJOB
U-shape with holder wire.
tMake sure to use the holder wire so that it is not too loose, and is not
hanging or touching anything sharp.
󱂓
󱂔
󱂃
󱂆
󱂁
󱂂
󱂇
󱂄
󱁿 󱂀
󱂅
