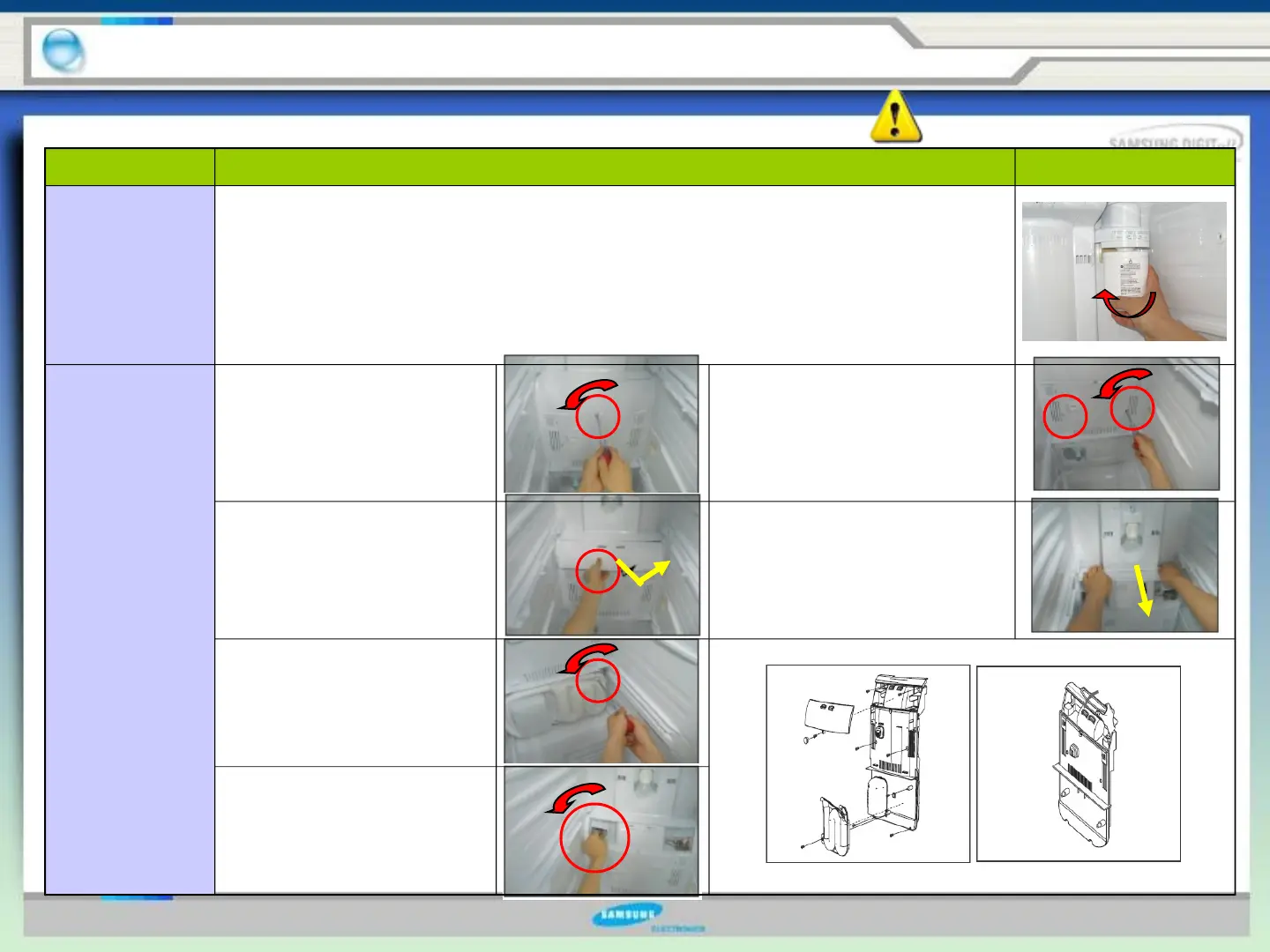

3. Full disassembly and assembly
Part name Work order Remarks
WATER
FILTER
The water filter is located in the upper right-hand corner of the
refrigerator. The water filter filters water for the ice maker and the
water dispenser.
1.Turn the water filter 1/2 turn counterclockwise and pull it down.
2.To install the filter, align the indication mark(unlock position) and
push it up while turning 1/2 turn clockwise until the lock position is
aligned. Do not over tighten.
EVAPORATOR
COVER
Pull out the screw cap
and remove the screw.
Take off motor and lamp
wire connector located
on the upper liner
Remove the lamp cover
by unlocking the tabs
and pulling the cover
down.
Remove the Evaporator
cover in the direction of
the arrow as shown.
Remove the water tank
from the evaporator
cover by unscrewing
the screws.
Remove the screws at
the evaporator cover
and disconnect the
wire connector
If you want to reassemble, follow the reverse order
Be careful of injury
