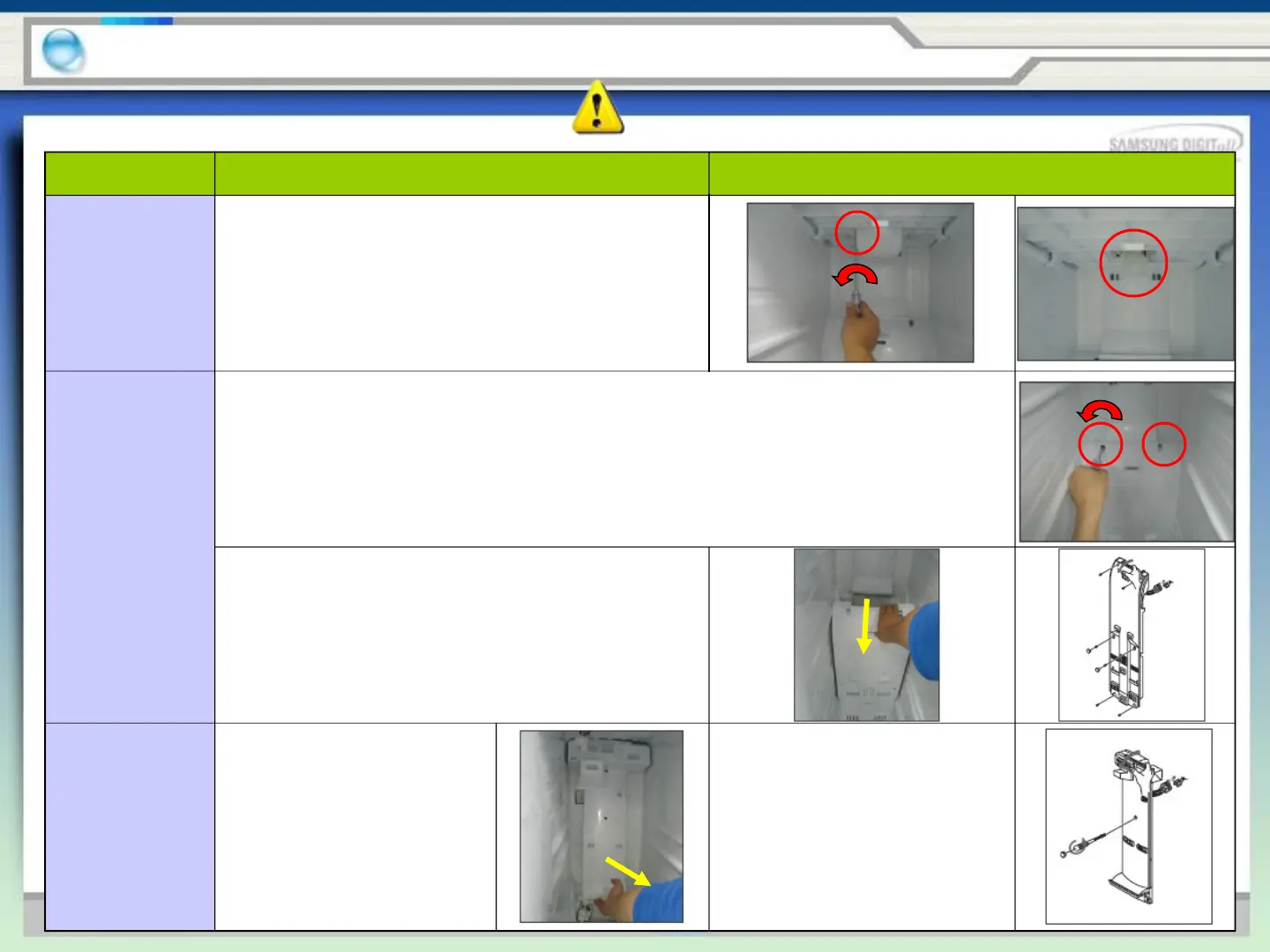

3. Full disassembly and assembly
Part name Work order Remarks
FREEZER
LIGHT
The freezer light is located in the bottom of
the auger motor case. The light is covered
by an opaque cover.
1. Remove the screw and the light cover.
EVAPORATOR
COVER IN
FREEZER
1. Pull out the screw caps and remove screws (6).
2. Remove the evaporator cover in the
direction of the arrow as shown
UPPER
DUCT
1. Remove the screw
cap and screw.
2. Slide the upper fan
ductwork out while
disconnecting the wire
connector.
(Lamp and Thermistor)
When disassembling, make sure the unit turned off
To Next Page
