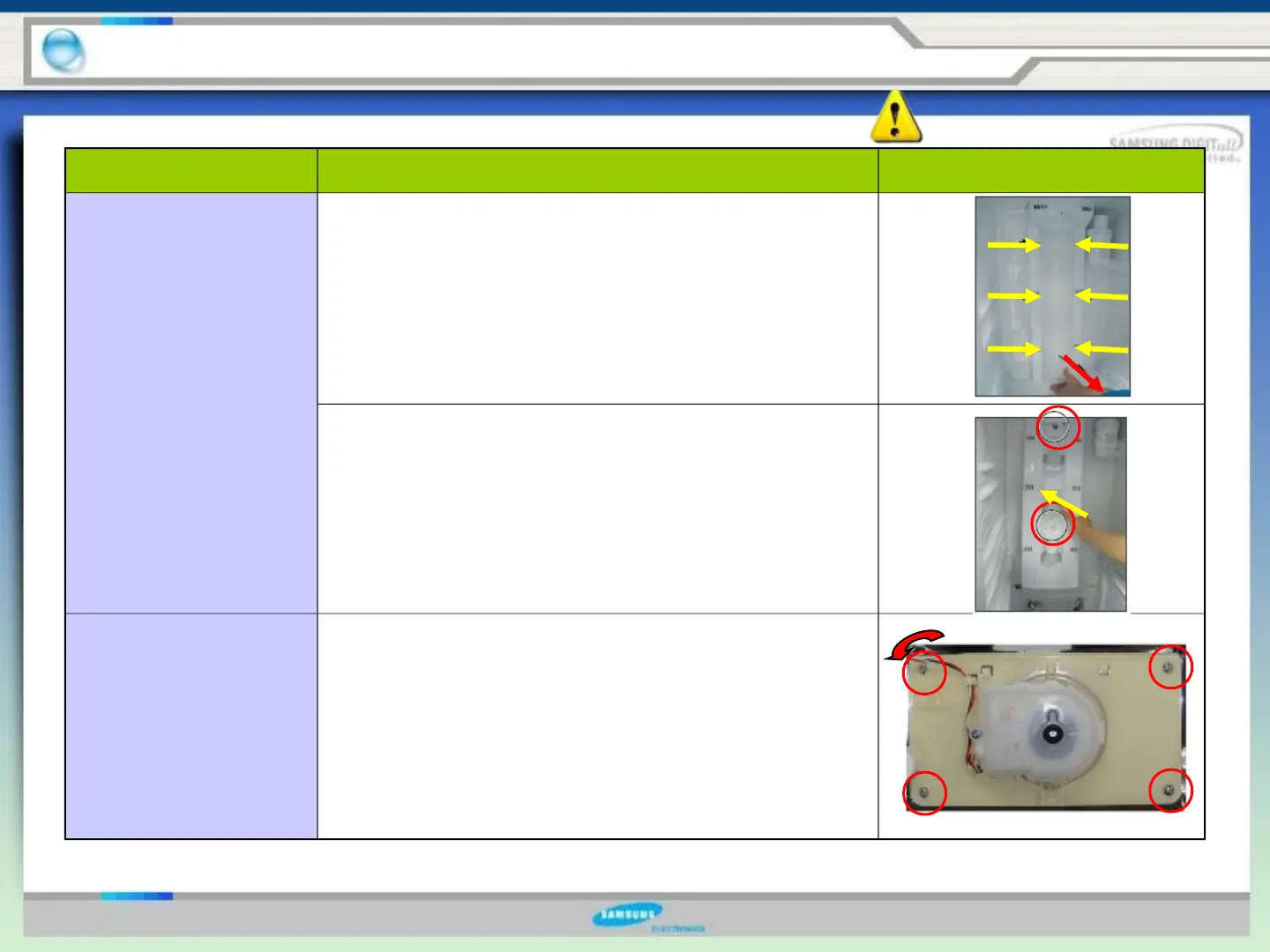

3. Full disassembly and assembly
Part name Work order Remarks
UPPER DUCTWORK
Remove the lamp cover by unlocking the tabs
and pulling out the cover.
Remove the screws(2) and upper fan ductwork
while disconnecting the wire connector.
(lamp and thermistor)
EVAPORATOR FAN
MOTOR
The evaporator fan is located in the middle rear
of the refigerator. This fan circulates cold air in
the refrigerator.
1. Remove screws (4) located at the four corners
of the fan bracket.
2. Take the fan motor assembly off.
If you want to reassemble, follow the reverse order
