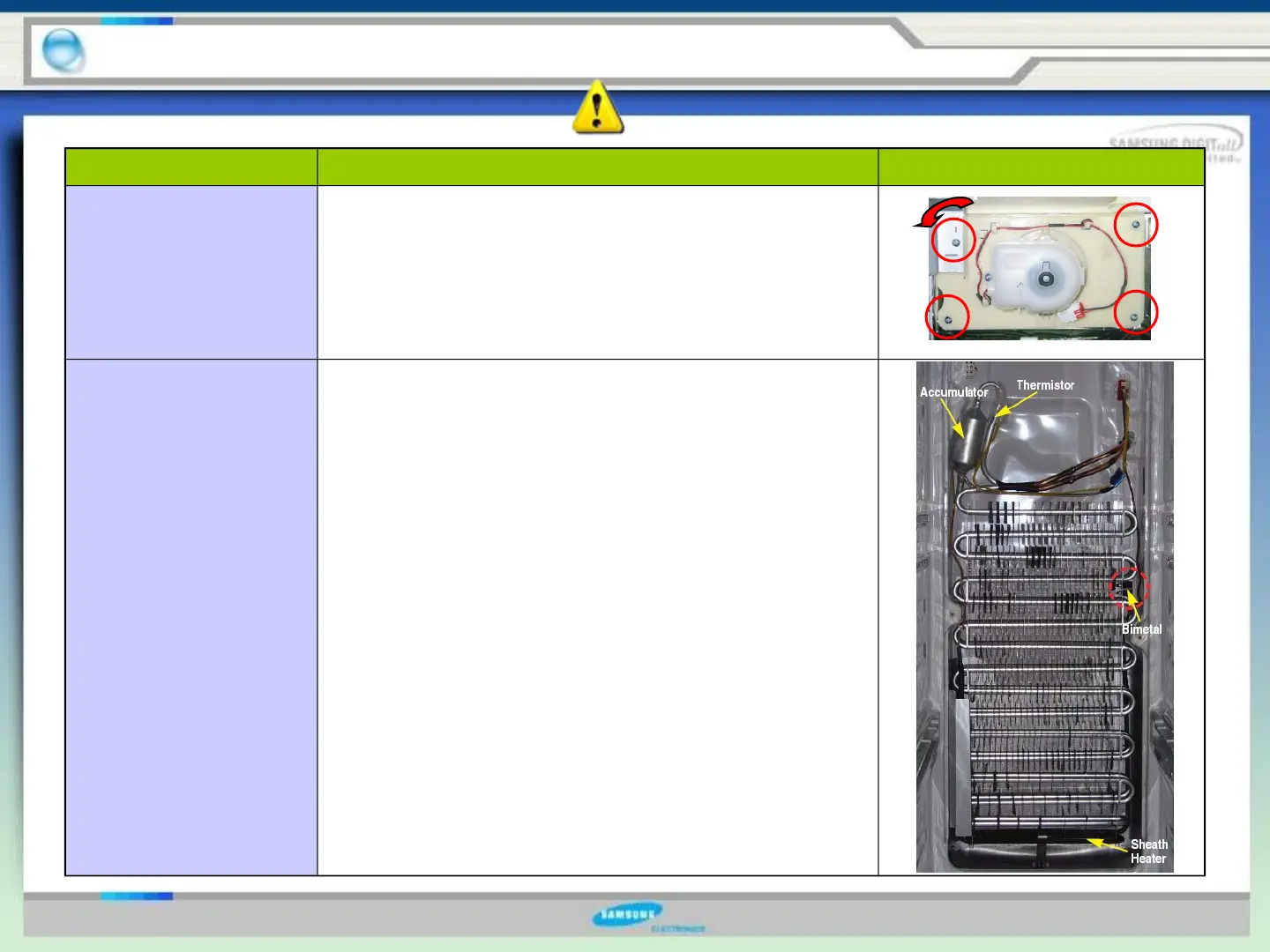

Part name Work order Remarks
EVAPORATOR FAN
MOTOR
The evaporator fan is located in the lower rear of
freezer. This fan circulates cold air in the
freezer.
1. Remove screw(4) located at the four corners
of the fan bracket.
2. Take the fan motor assembly off.
EVAPORATOR IN
FREEZER
Evaporator is located in the bottom of freezer to
produce cold air driven across the evaporator
coils.
1. Take off the ductwork in Freezer.
2. Disconnect the wire connector (Heater,
Bimetal, and Thermistor).
3. Desolder the inlet and outlet tubes.
4. Remove the evaporator.
5. Take the same steps to seal the system as
mentioned earlier.
3. Full disassembly and assembly
If you want to reassemble, follow the reverse order
When disassembling, make sure the unit turned off
