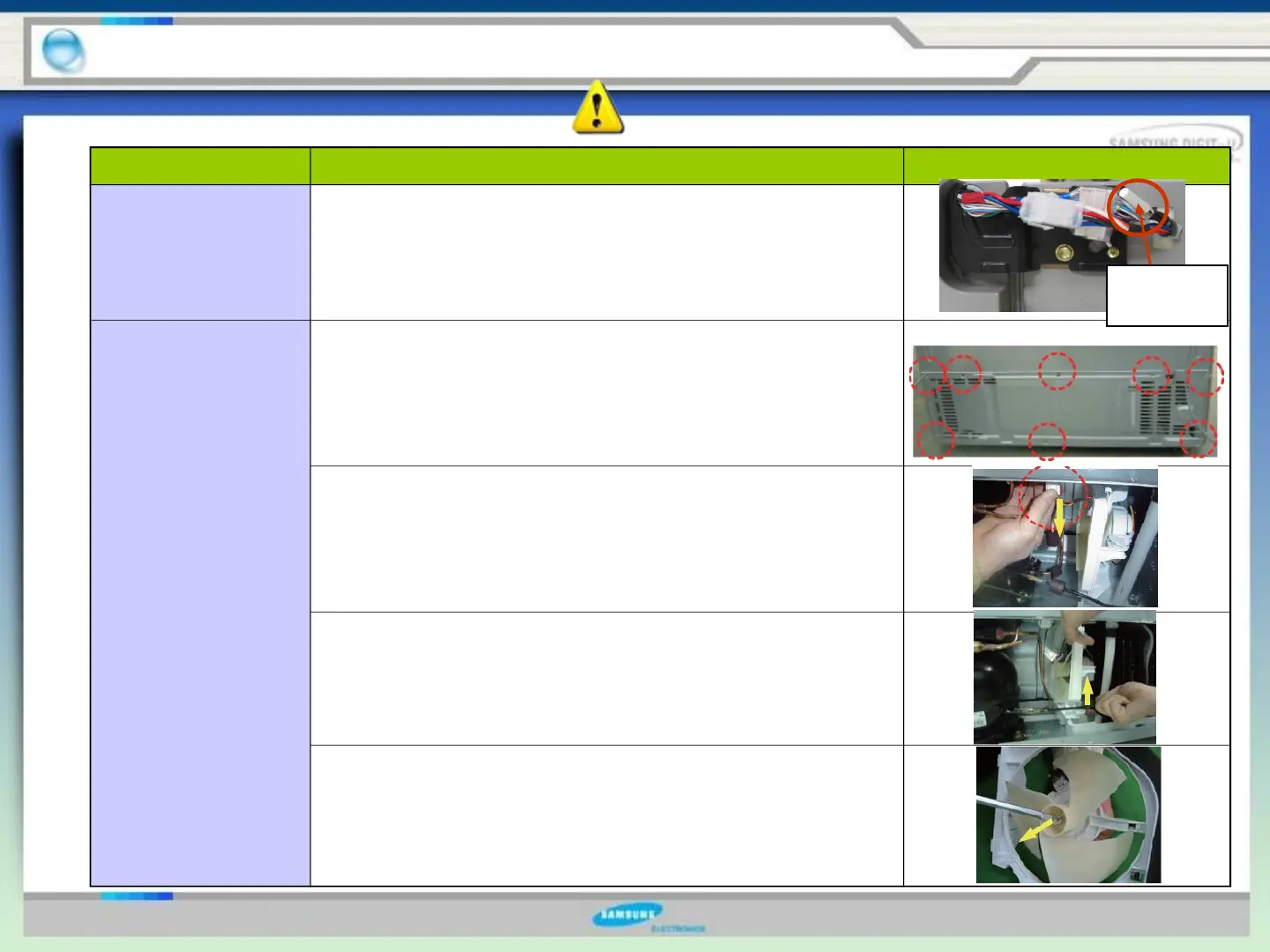

Part name Work order Remarks
AMBIENT
THERMISTOR
The ambient thermistor is located inside the upper
hinge cover.
Fre. it sends temperature signals to the micro-
processor.
FAN MOTOR
1. Take off the cover comp by turning the eight
screws counter-clock wise.
2. Disconnect the wire connector.
3. Remove the assy-support circuit motor by
unlocking the tabs and lifting it up.
4. Insert the flat-tip screw driver into the fan, and
removing the fan spring along the arrow.
If you want to reassemble, follow the reverse order
Ambient
Thermistor
3. Full disassembly and assembly
When disassembling, make sure the unit turned off
To Next Page
