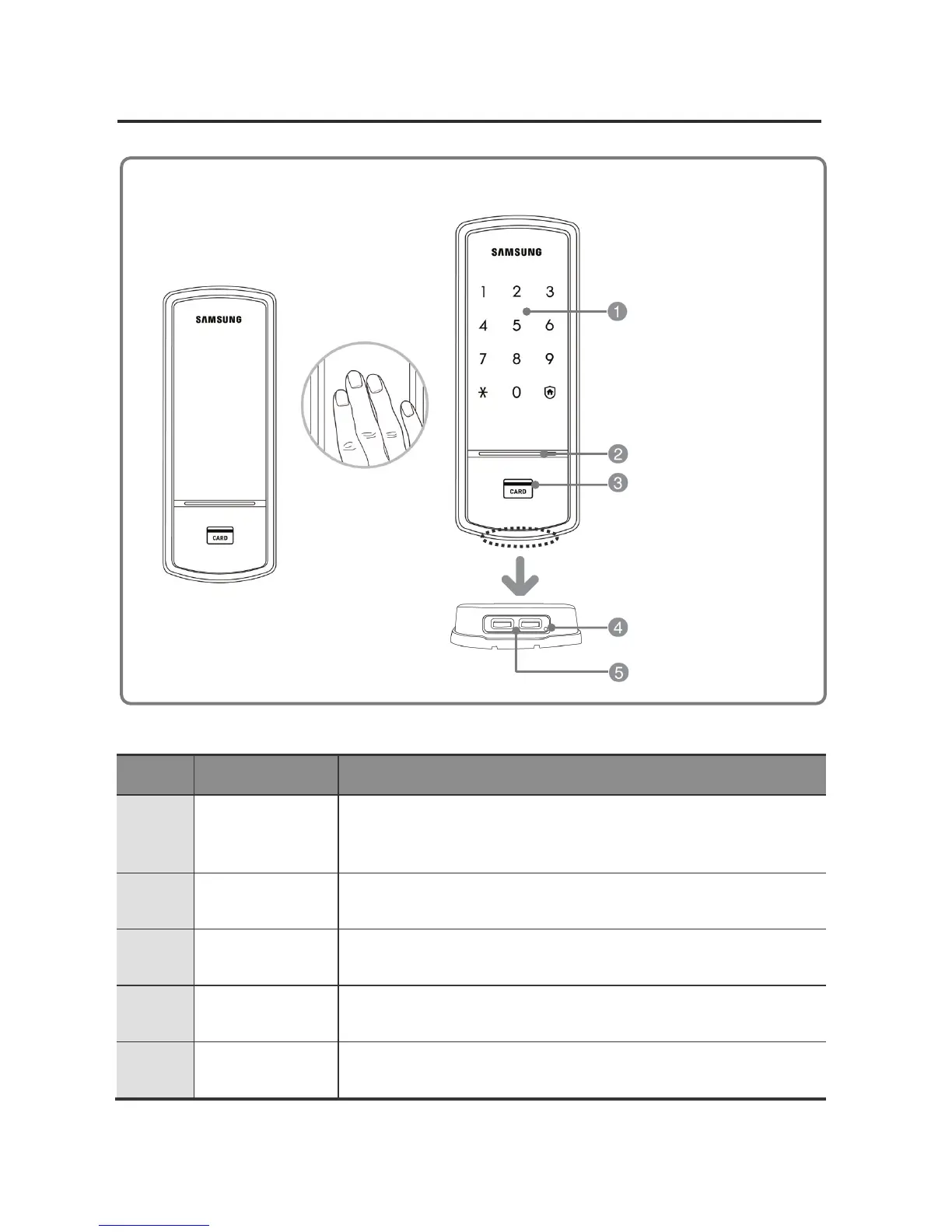

Outer Body Parts
No. Name Description
1 Number Pad Enter numbers to register, change and delete a password. The door
can be opened by entering the registered password onto the
number pad.
2 LED Indicator It displays the operation status of the lock when it reads a card or it
operates.
3 Card Reader The Card Reader is used to recognize a card before opening the
door. Touch the number pad to operate the Card Reader.
4 Reset Switch
Allows restart of the door lock when it does not respond to a
registered card or touches on the number pad.
5
External Power
Port
Power can be supplied from the emergency battery after the main
batteries have been completely discharged (9V battery).
Number Pad Unlighted
Number Pad
Number Pad Lighted
LED Indicator
Card Reader
Reset Switch
External Power Port
