3.2.3 The 2
nd
FIX RUN screen
▶ Additional information of FIX operation status will be displayed in this screen, including PV, SP,
control output MV (Manipulate Value) and activating state of other Digital Outputs.
① Displays DO signal status. Active RED Lamp indicates activating signal and relay ON state.
☞ To select different DO signal display list on this screen, refer to [13.2 Status Display Lamp] on
[Installations Manual].
② Displays the current running PID ZONE number.
☞ Refer to [PID GROUP] in [SYSTEM SETTING] for more information of current PID ZONE.
③ Displays percentage control output, Manipulate Value (MV) of temperature.
④ Displays percentage control output, Manipulate Value (MV) of humidity.
⑤ Displays total process time.
⑤
③
④
①
②

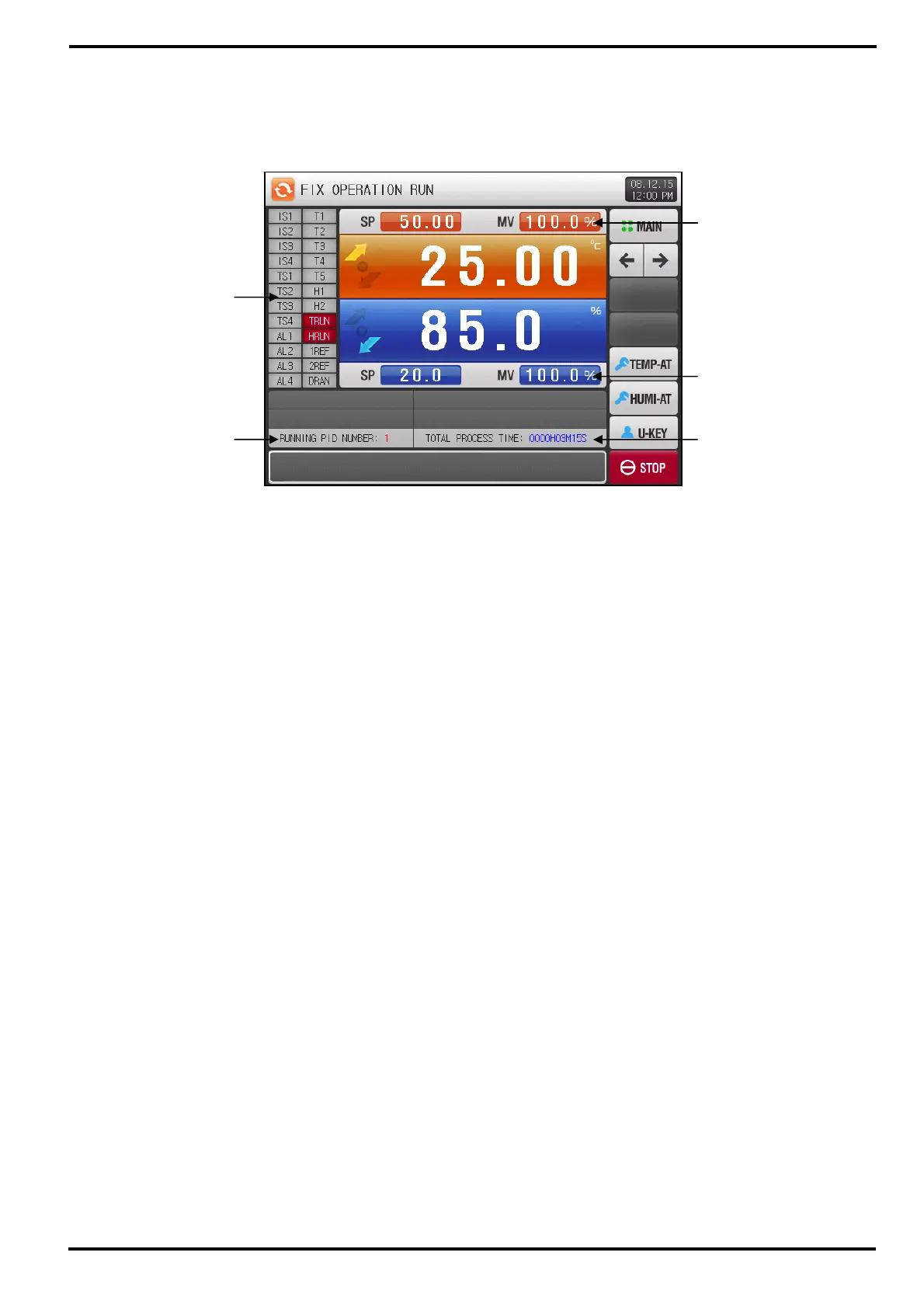

[Figure 3-6] The 2
nd
FIX RUN screen
