4st Edition of TEMI2000_Series IM : Aug. 18. 2009 Page 11 / 55
3.2.2 The 1
st
FIX RUN screen
① Displays current operation status (FIX operation RUN)
② Displays and Setting button for target Set Point of temperature.
③ Displays Present Value of temperature.
④ Displays Present Value of humidity.
⑤ Displays and Setting button for target Set Point of humidity.
⑥ Displays current date/time and button to turn off LCD light for power-saving mode
☞ Red Lamp on Display part will turn on under operation STOP state during power-saving mode by
key.
☞ Green Lamp on Display part will turn on under operation RUN state during power-saving mode by
key
⑦ Button to move to the MAIN MENU screen.
⑧ Button to move to the next / previous screen.
⑨ Button to carry out Auto-Tuning process for temperature by target Set Point at ②.
☞ To remove this tuning button from this screen, refer to [10. PID GROUP] on [Installation Manual].
⑩ Button to carry out Auto-Tuning process for humidity by target Set Point at ⑤.
☞ To remove this tuning button from this screen, refer to [10. PID GROUP] on [Installation Manual].
⑪ USER-KEY button.
☞ To remove this U-KEY button from this screen, refer to [13. INITIAL SETTING] on [Installation
Manual].
☞ For using this U-KEY, set available relay number at ‘USER KEY SIGNAL’ on [DO CONFIG] in
[SYSTEM SETTING].
☞ If USER KEY has been set, appointed relay will be ON by pressing the
(U-KEY) button on FIX /
PROGRAM operations screen regardless RUN or STOP state.
⑫ STOP button to stop FIX RUN operation.
☞
(RUN) button is displayed, when FIX STOP state.
※ The ⑨, ⑩ buttons are inactive in the FIX stop screen.
②
④
③
⑤
①
⑥
⑦
⑧
⑨
⑩
⑪
⑫

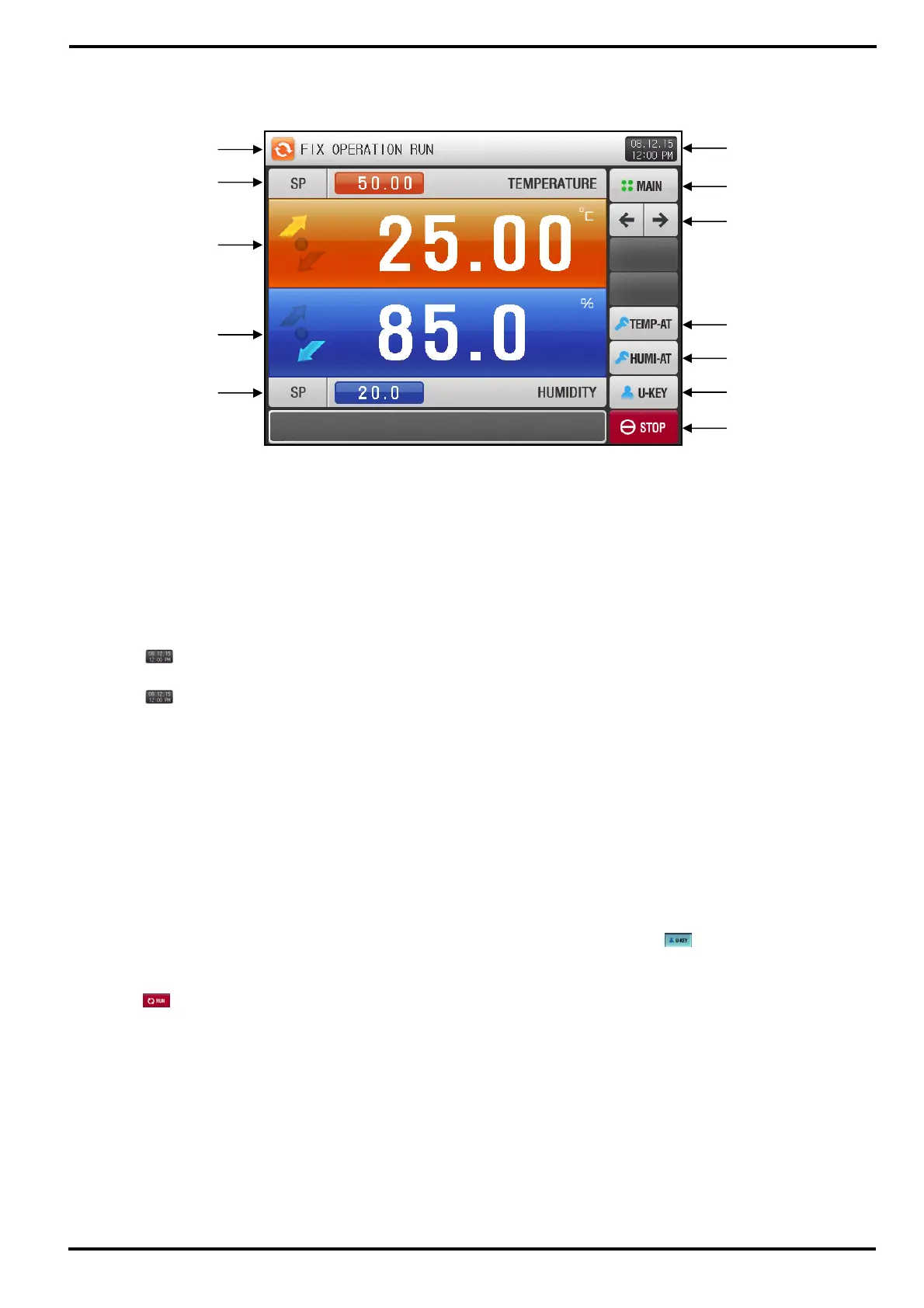

[Figure 3-5] The 1
st
FIX RUN screen
