3.3.4 The 3
rd
PROGRAM RUN Screen
▶ This screen is for viewing trend graph and recording and saving the data.
▶ You can set items to display by graph and record trend data among 6 parameters – SP, PV, MV of
temperature and humidity–shown at the left hand side of this screen by using each check box (
).
▶ Press the
(RECORD) button on the right hand side to record trend data established at ① of
current program operation, and it starts recording with activating (RECORD) button.
▶ Press the activated (RECORD) button to stop recording, and recorded data will be stored in
internal memory as a file. New file will be created by every single turning ON /OFF recording.
▶ All data stored in internal memory will be wiped out by POWER OFF.
☞ Store all important recorded data to SD card before POWER OFF
☞ Refer to [6.2 TREND GRAPH view & DATA processing].
※ While the data is recording into internal memory, that can not be downloaded to SD card.
① Displays the PV, SP, MV of temperature and humidity and its check box button.
② Displays available internal memory volume.
☞ About 25days can be saving on 1 second of sampling time.
③ Button to start recording data selected by check box on the internal memory.
④ Clear button to wipe out all data stored to internal memory.
②
①
④
③

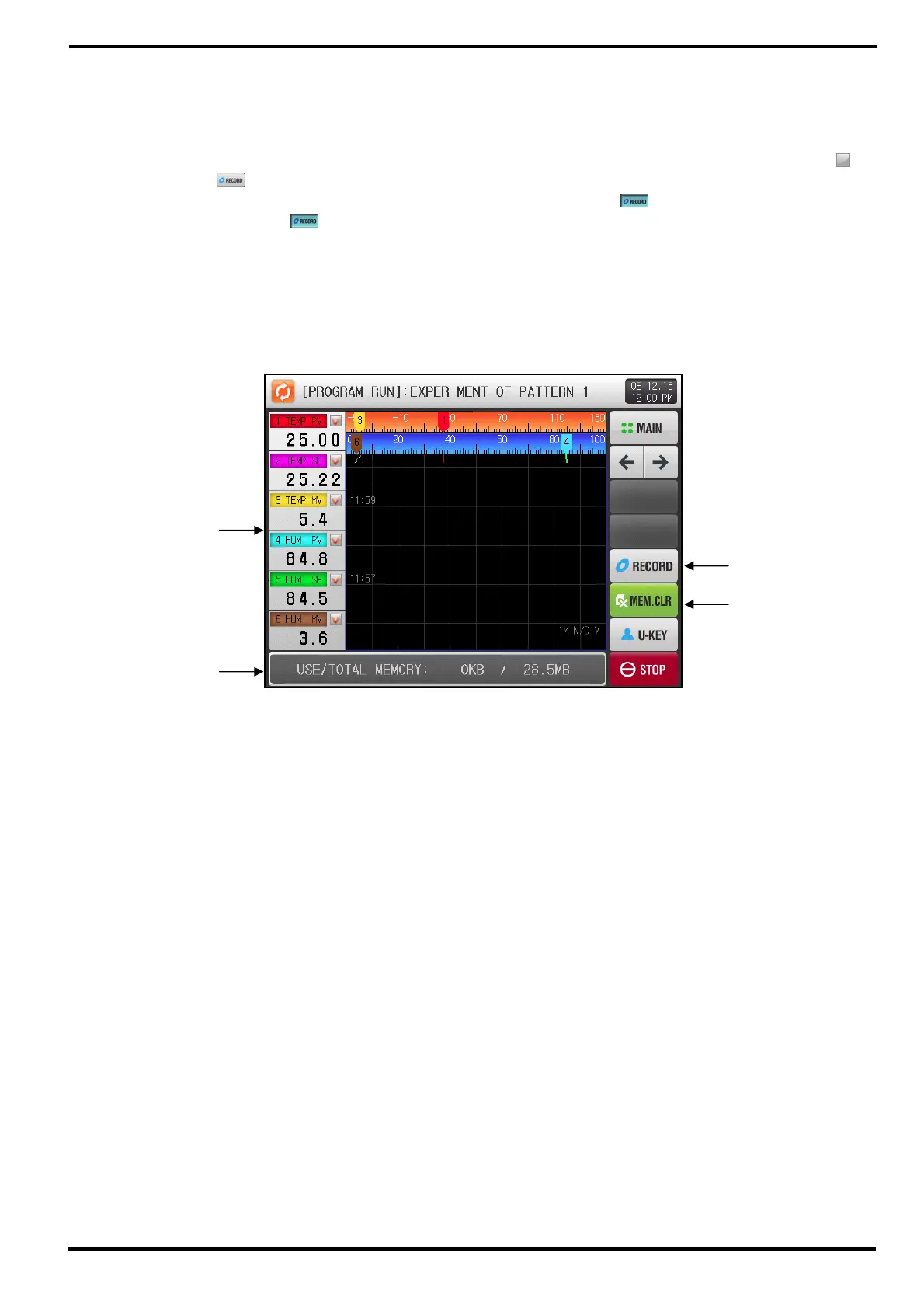

[Figure 3-12] The 3
rd
PROGRAM RUN Screen
