Samwontech TEMI2000 Series User Manual

SAMWONTECH
4st Edition of TEMI2000_Series IM : Aug. 18. 2009 Page 17 / 55
3.3.3 The 2
nd
PROGRAM RUN Screen
▶ Additional information of PROGRAM operation status will be displayed in this screen, including PV, SP,
control output MV (Manipulate Value) and activating state of other Digital Outputs.
① Displays DO signal status. Active RED Lamp indicates activating signal and relay ON state.
☞ To select different DO signal display list on this screen, refer to [13.2 Status Display Lamp] on
[Installations Manual].
② Displays the current operating pattern / segment number.
③ Displays pattern repeat status.
☞ [Pattern Repeat status : 000/000] The front number indicates total number for repeat process and
the back number indicates completed repeat process number.
④ Displays segment repeat status.
☞ [Segment Repeat status : 000/000] The front number indicates total number for repeat process and
the back number indicates completed repeat process number.
⑤ Displays the current running PID ZONE number.
⑥ Displays the running process time / total process time.
☞ [Segment time : 000H00M00S/000H00M00S] The front number indicates the time has processed of
segment and the back number indicates total process time for current segment on [5.1 Program
PATTERN setting].
⑦ Displays total process time.
②
①
④
③
⑤
⑥
⑦

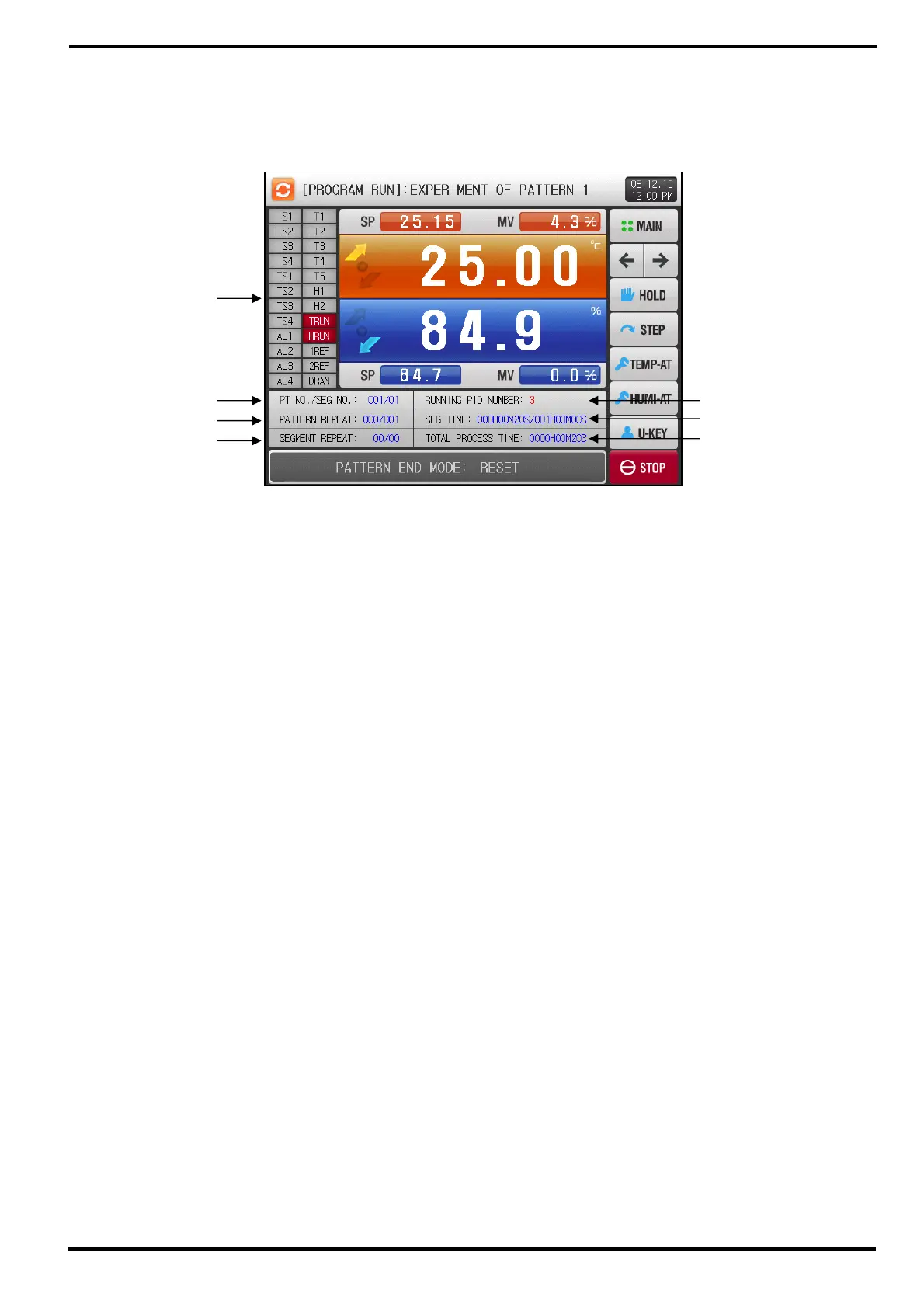

[Figure 3-11] The 2
nd
PROGRAM RUN screen
