① DEALY TIME is to set the start time of TIME SIGNAL activating ‘ON’ at segment. TS event output will
become ‘ON’ right after the DELAY TIME elapses.
☞ When DEALY TIME > Segment time, TIME SIGNAL output will not become ‘ON’.
② OPER. TIME is to set the time to keep generating TIME SIGNAL ‘ON’ at segment. TS event output
will be generating ‘ON’ signal for OPER.TIME.
☞ When DEALY TIME+OPER.TIME > Segment time, TIME SIGNAL output will be generating on just
concerned segment and will not affect next segment.
Table 5-4. TIME SIGNAL setting Parameters
Parameter Range Units Default
DELAY TIME 000.00.00(OFF) ~999.59.59(H.M.S) ABS 000.00.00
OPER. TIME 000.00.00(OFF) ~999.59.59(H.M.S) ABS 000.00.00

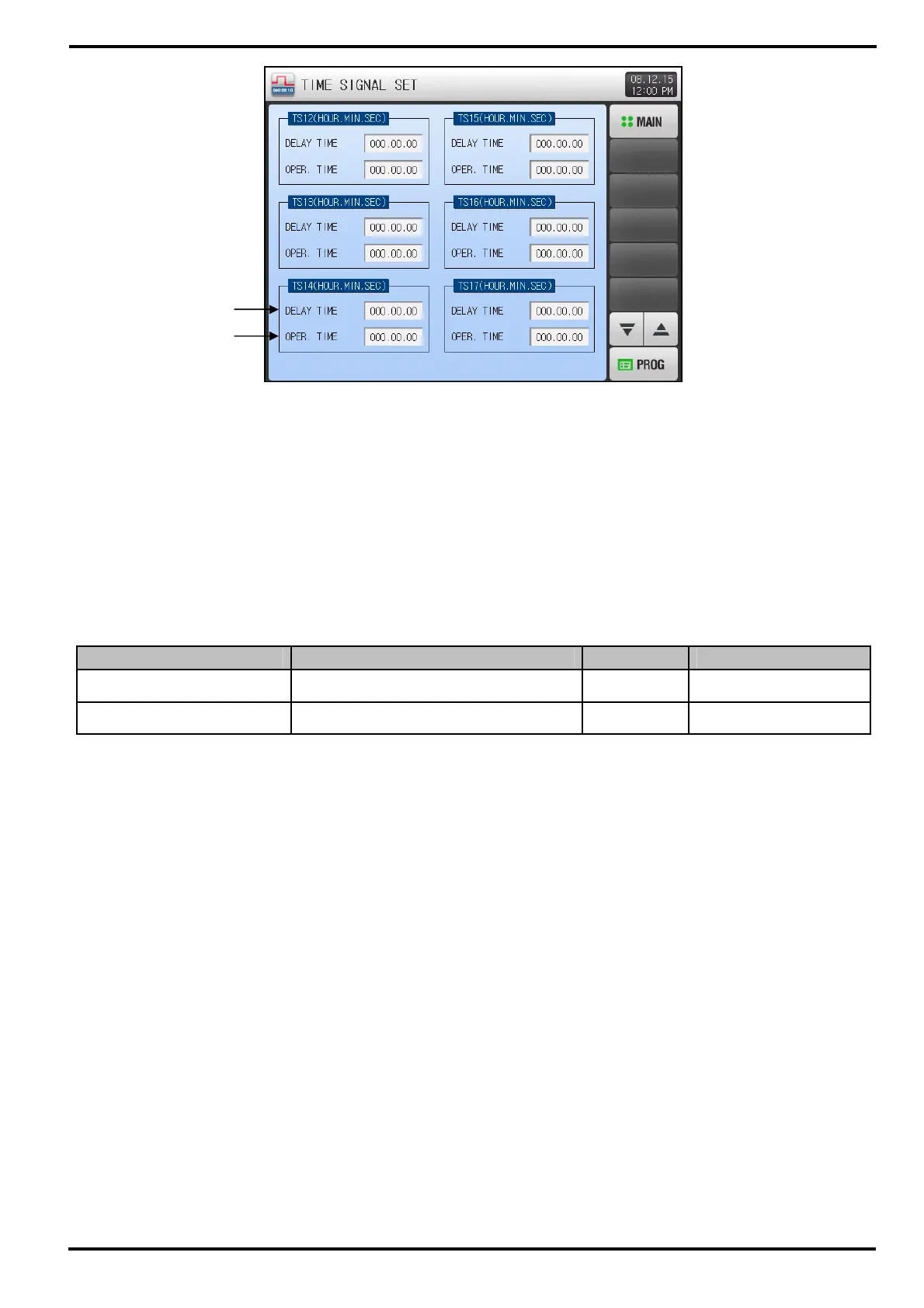

[Figure 5-9] TIME SIGNAL SET screen – TS12 to TS17
①
②
To Next Page
