G-RAID SHUTTLE HARDWARE
OVERVIEW
G-RAID Shuttle ships from the factory preconfigured in RAID 5. The RAID
controller also supports Protected RAID modes. RAID 0, 1, 1E, 5, 6, 10, 50,
60, and JBOD for Shuttle 8, RAID 0, 1, 1E, 5, 10, and JBOD for Shuttle 4, and
RAID 0, 1, 1E, 5, 10, 50, and JBOD for SSD. For an explanation of these RAID
levels, see RAID Levels in the Support, Chapter 6.
G-RAID SHUTTLE 4 AND G-RAID SHUTTLE SSD
Front Panel (G-RAID Shuttle 4)

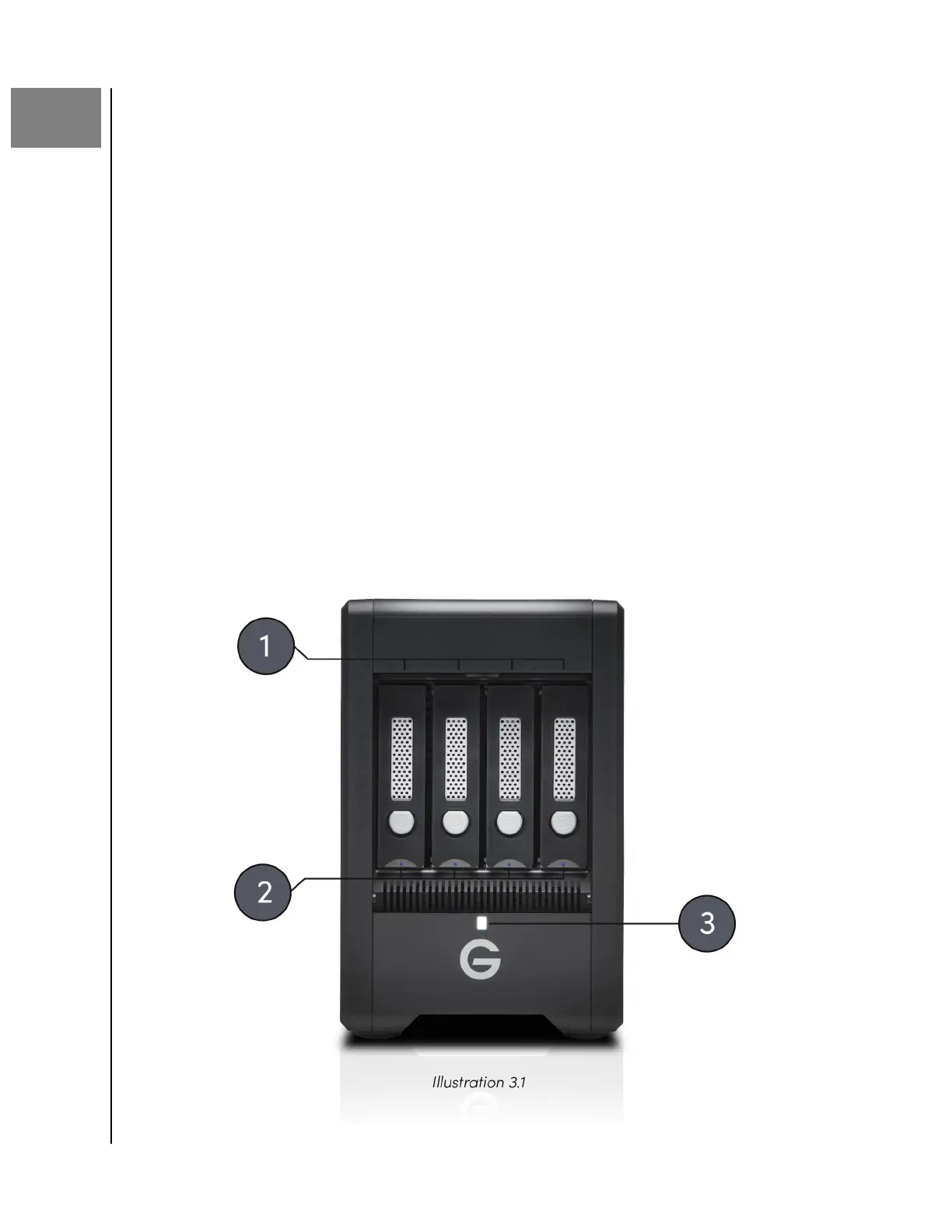

Refer to the illustration 3.1 below.
1. Removable Disk Drives
2. Drive Module Power/Activity LED
3. LED Indicator
