Sansui STB-HD01 - Connecting to a HDTV with HD Ypbpr; Connecting to a HDTV with HD VGA

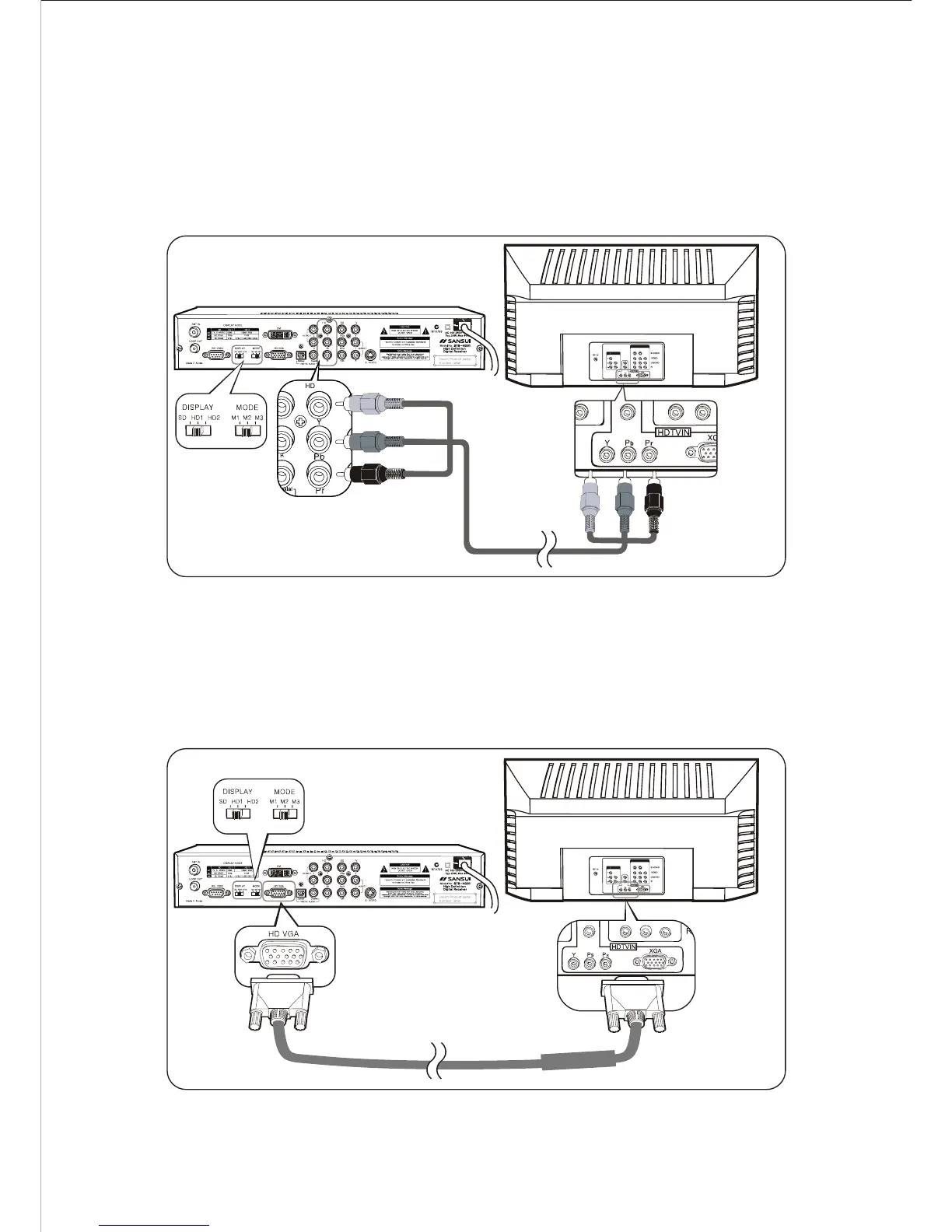

Fig.6 HD VGA Video Connection
Connecting to a HDTV with HD YPbPr
Connect YPbPr Video cable to the HD terminal on the rear of HD-STB.
Connect the other end of YPbPr Video cable to the HD YPbPr Input terminal on the HDTV.
Usually, the Y is Green, Pb is Blue and Pr
Setting Up the Display Switch to HD 1 ( Native Mode) or HD 2 ( CRT Display) and
Mode Switch to desired resolutions. (Refer to Fig.5)
Connecting to a HDTV with HD VGA
Connect HD VGA Video cable to the HD VGA terminal on the rear of HD-STB.
Connect the other end of HD VGA Video cable to the HD VGA Input terminal on the HDTV.
Setting Up the Display Switch to HD 1 ( Native Mode) or HD 2 ( CRT Display) and
Mode Switch to desired resolutions. (Refer to Fig.6)
are RED colour assigned.
11
Connecting your HD-STB
Fig.5 HD YPbPr Video Connection
Y - Green
Y - Green Pr - Red Pb - Blue
Pr - Red
Pb - Blue
