8.2. RS-232C Control
The delimiter for RS-232C communication is set in the factory as CR (carriage return). This can be
changed when power to the OTF-930 is initially switched on. For an explanation of this procedure
please see Section 7.1 Power On.

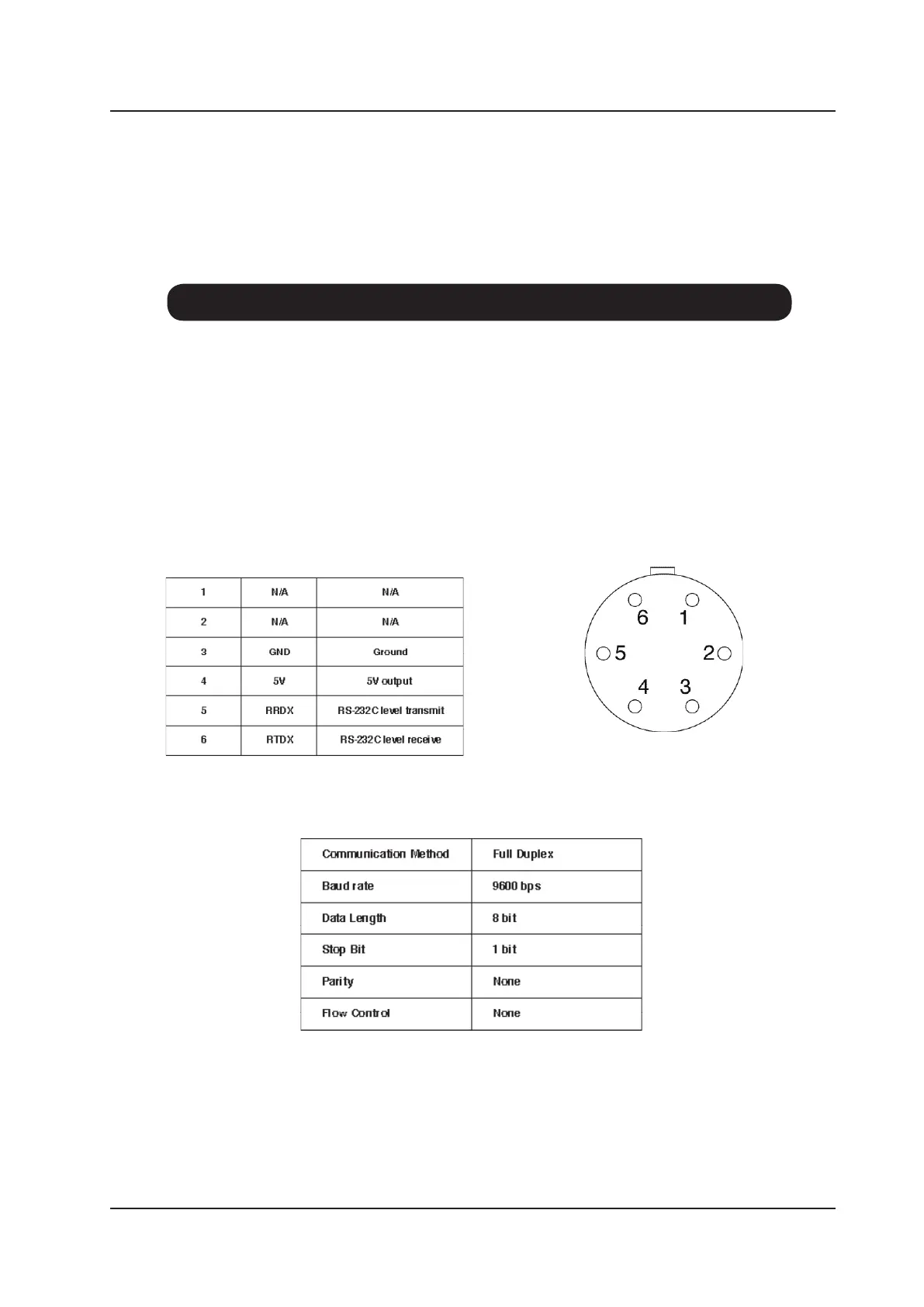

The following table lists the communication conditions that should be set to enable communication
through the RS-232C interface of the OTF-930.
The OTF-930 provides support for RS-232C communication through the SIF connector on the front
panel. The RRDX (receive) terminal of the OTF-930 should be connected to the transmit terminal
of the external device. Please ensure that the handshake line on the external device is closed. The
terminals for the SIF interface (Hirose Electric HR10-7R-6S) are listed below:
