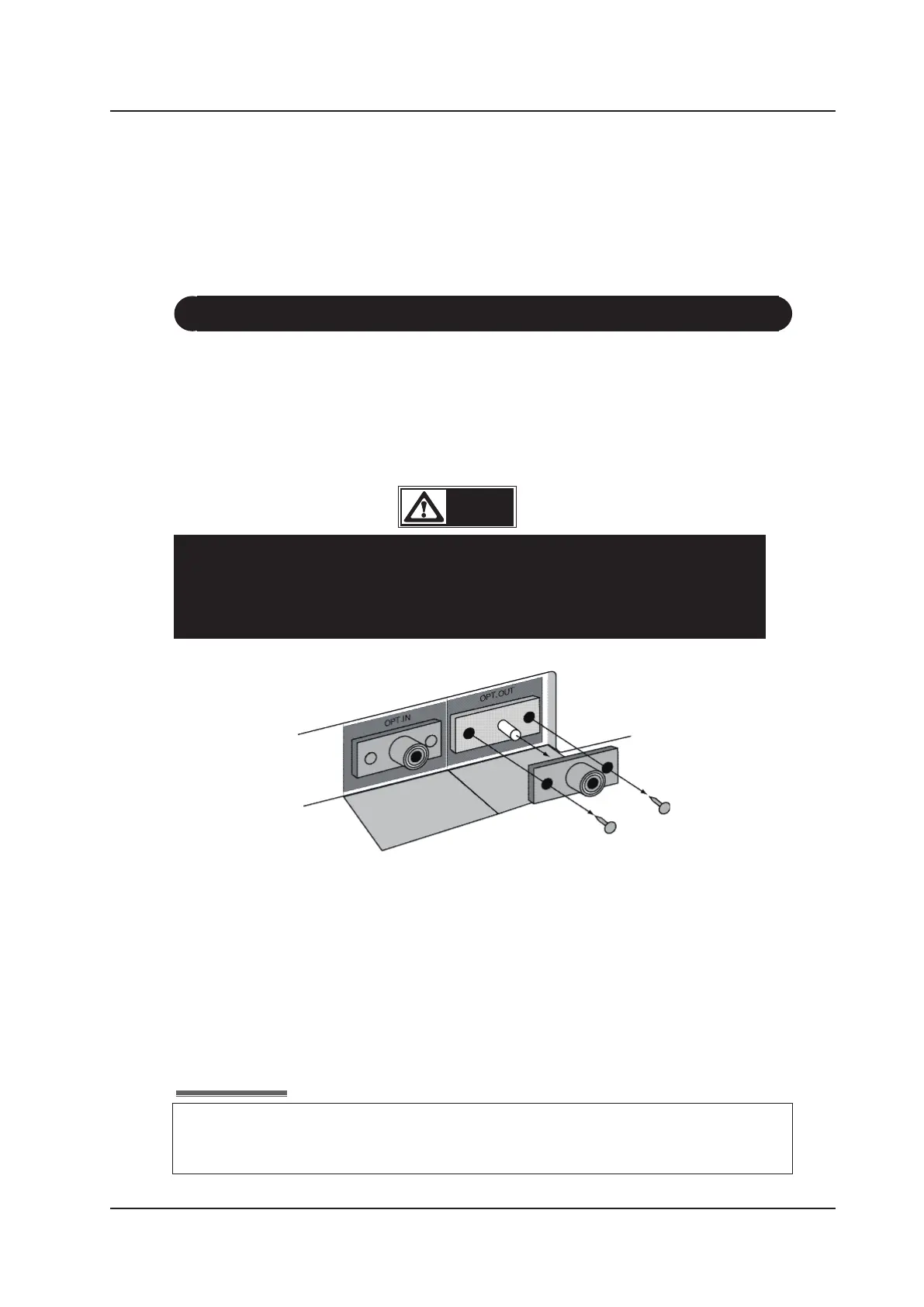

10.3. Cleaning the Optical Connectors
Connection of the optical ber with dust and dirt on the end of the optical connector of OTF-930
cause loss of optical output, therefore, clean the connector periodically. The optical adapter
arranged at the optical connector may be pulled out by removing fixation screws, therefore,
remove it and clean the end of the optical connector.
1. Remove the 2 screws that x the optical adapter with a philips screwdriver.
2. Pull out the optical adapter. To facilitate removal, attach a connector cap to the optical
adapter, and pinch and pull out the connector cap.
3. Clean the end of the optical connector with alcohol.
4. After cleaning, insert the optical adapter into the optical connector and x it with 2 screws.
Procedures
This product uses a semiconductor laser. Laser beam may cause visual injury if it gets
in eye. Before cleaning of the optical connector, be sure to turn the power off (Refer to
5-7), and make sure there is no optical output power.
DANGER!!
This product uses a semiconductor laser. Laser beam may cause visual injury
if it gets in eye. Before cleaning of the optical connector, be sure to turn the
power off (Refer to 7-1), and make sure there is no optical output power.
After cleaning, insert the optical adapter into the optical connector and x it securely with
2 screws. If the optical adapter is not attached correctly, optical output power loss will
NOTE
