6-4
PEM-340
Operation Manual
(1) Analogue Interface (AIF) Connector
Provides analogue output of PER, Optical Power and Polarization Angle.
(2) Mains Connector Socket
(3) Fuse Housing
(4) Slit for Heat dissipation
There is a cooling fan inside at this location. Please do not cover the slit.
The device needs at least 5cm of space for proper ventilation and cooling.
(5) GPIB Connector
(6) Serial Number Label
Indicates model number, serial number and options installed on each unit.
(2) (3) (4) (1) (5) (6)

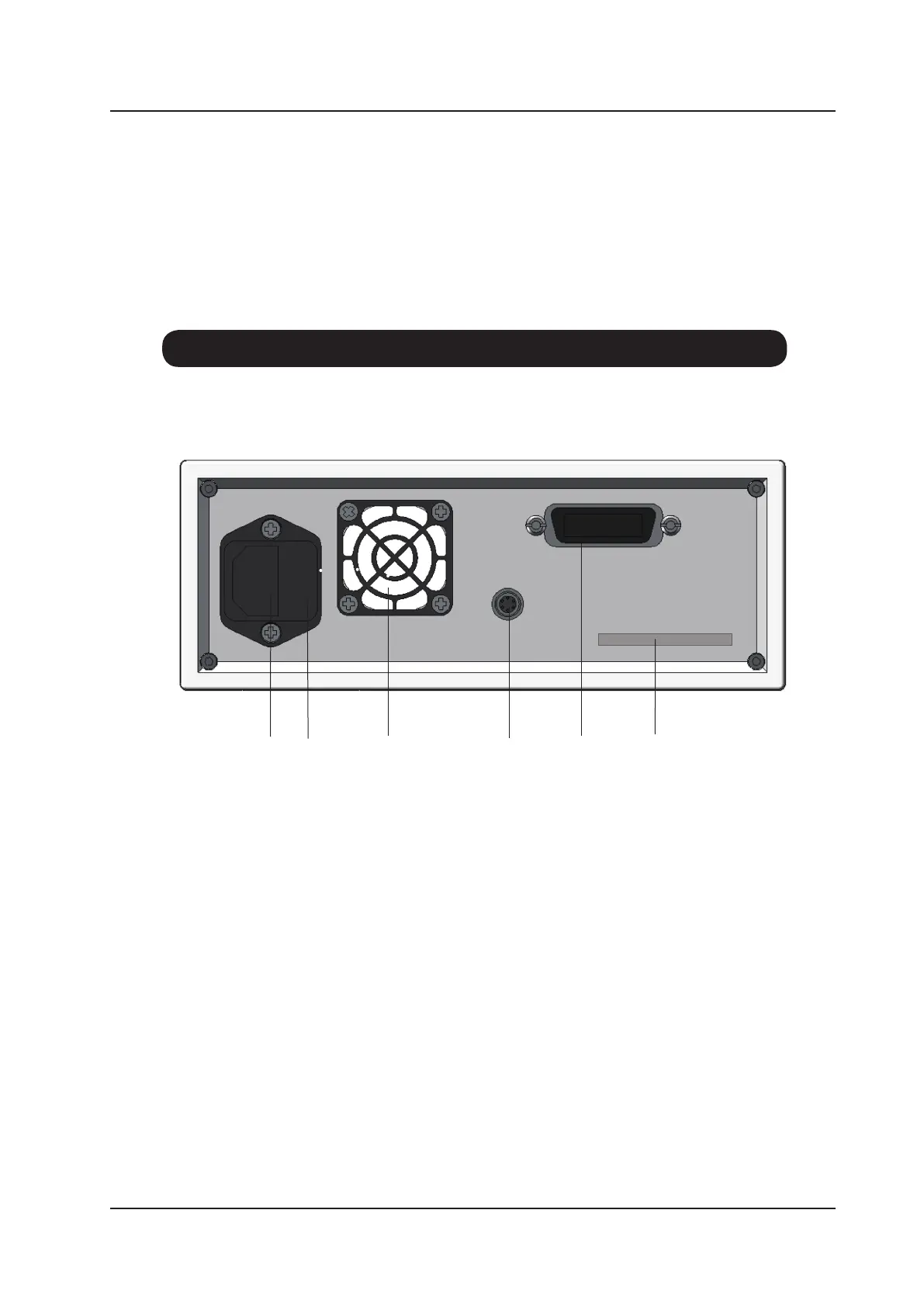

6-2. Rear Panel
