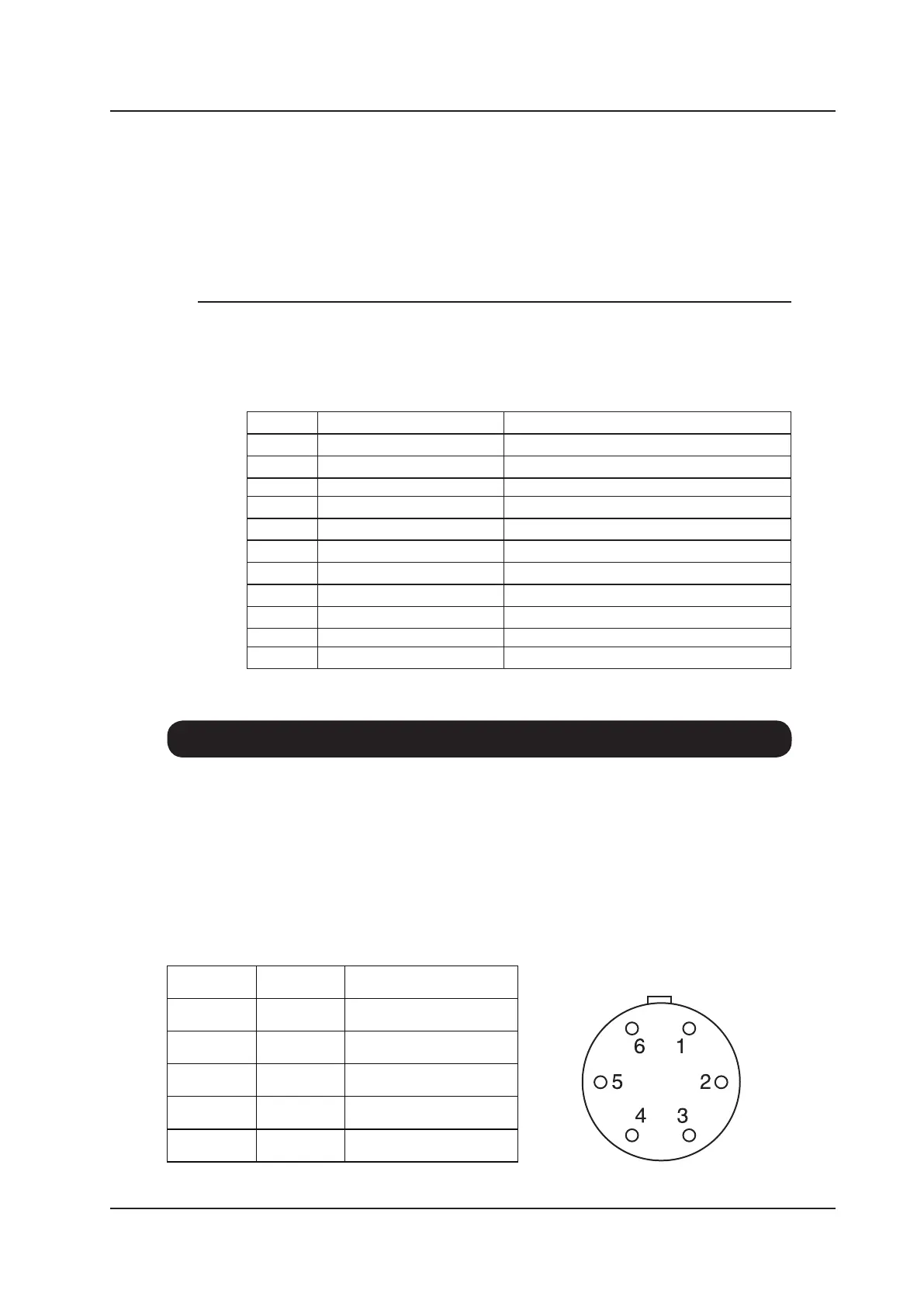

9-2. RS-232C Control
The PEM-340 provides support for RS-232C communication through the SIF connector on the
front panel. The RTDX (transmit) terminal of the PEM-340 should be connected to the receive
terminal of the external device (e.g. computer). The RRDX (receive) terminal of the PEM-
340 should be connected to the transmit terminal of the external device. Please ensure that the
handshake line on the external device is closed. The terminals for the SIF interface (Hirose
Electric HR10-7P-6S) are listed below:
Front view of the PEM-340 SIF connector
1 N/C Not used (Do not connect)
2 N/C Not used (Do not connect)
3 GND Ground
4 N/C Not used (Do not connect)
5 RRDX RS-232C Receive
6 RTDX RS-232C Transmit
Symbol Function PEM-340 Subset
SH Source handshake SH1: All functions
AH Acceptor handshake AH1: All functions
T Talker T8:Basic Talker,talker release by MLA
L Listener L4:Basic Lisener,listener release by MTA
SR Service request SR0:none
RL Remote/Local RL1:Switching remote/local,local lockout
PP Parallel poll PP0:none
DT Device trigger DT0:none
DC Device clear DC1:All functions
C Controller C0:none
E Electrical interface E1:Opne collector driver
■
9-1-2 GPIB function
GP-IB has 10 kinds of interface functions, each of which has its grade that is called
its subset. A "0" after the symbol of each function shows that support is not made,
and each numeric value represents grade.
