Output voltage changes according to measurement range of power monitor, as shown
below. Measurement range is adjusted automatically.
Output voltage value against optical output power is not calibrated.

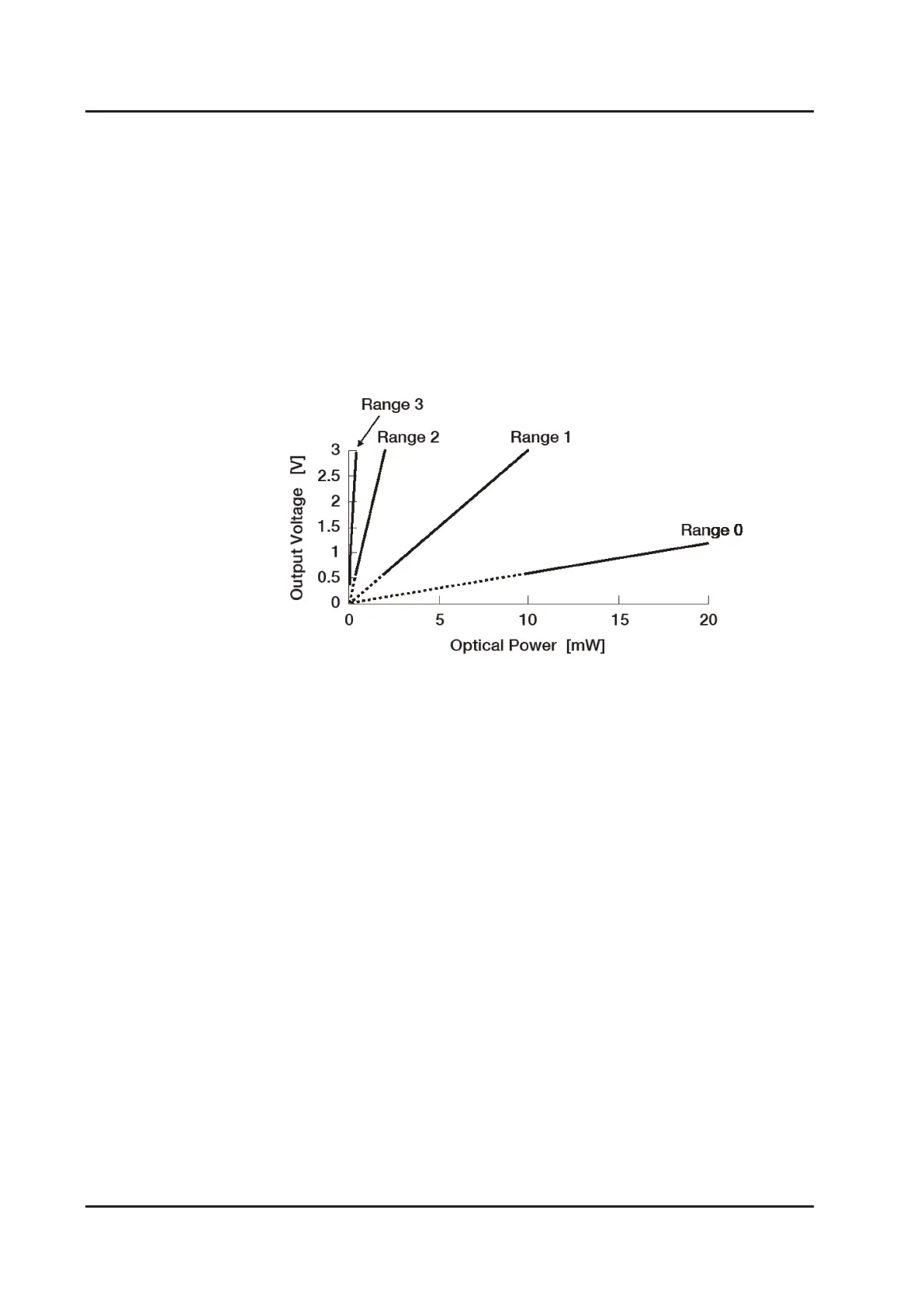

Typical voltage over output power correlation for each measurement range is shown
below.
Range0: 0.06 V/mW ( > 10 mW )
Range1: 0.3 V/mW ( 2 to 10 mW )
Range2: 1.5 V/mW ( 0.4 to 2 mW )
Range3: 7.5 V/mW ( < 0.4 mW )
