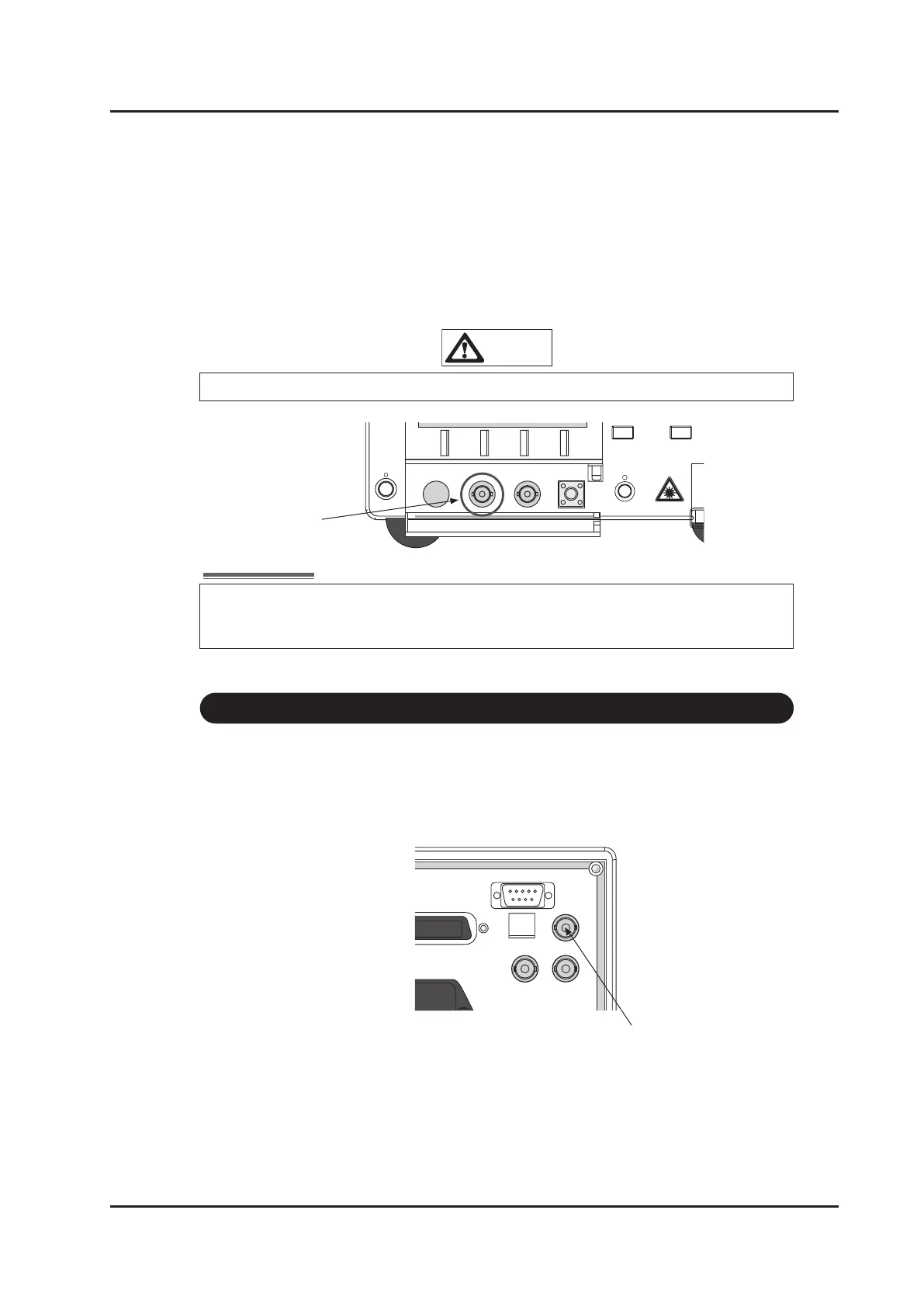

This feature outputs the voltage according to integrated power monitor.
It can be used to compensate output power uctuation in real time, for example.
(This feature is best recommended to be used with Santec’s SPU-100 as WDL/PDL
measurement solution, Santec’s Swept Test System)
6-7 Power Monitor Signal Output
Power Monitor output
Analog Input LF Mod. RF Mod.
Analog input
CAUTION
Please cancel the closed-loop wavelength control when using analog input function.
Refer to “6-1. Fine-tuning” to cancel closed-loop wavelength control.
NOTE
Never apply voltage out of the input level range. Doing so may damage the device.
