2. TSL-550 Status system
When Command set 1 is selected, the following status systems with four
registers are provided.
(1) Status Byte Register (STBR)
(2) Service Request Enable Register (SRER)
(3) Standard Event Status Register (SESR)
(4) Standard Event Enable Register (SEER)

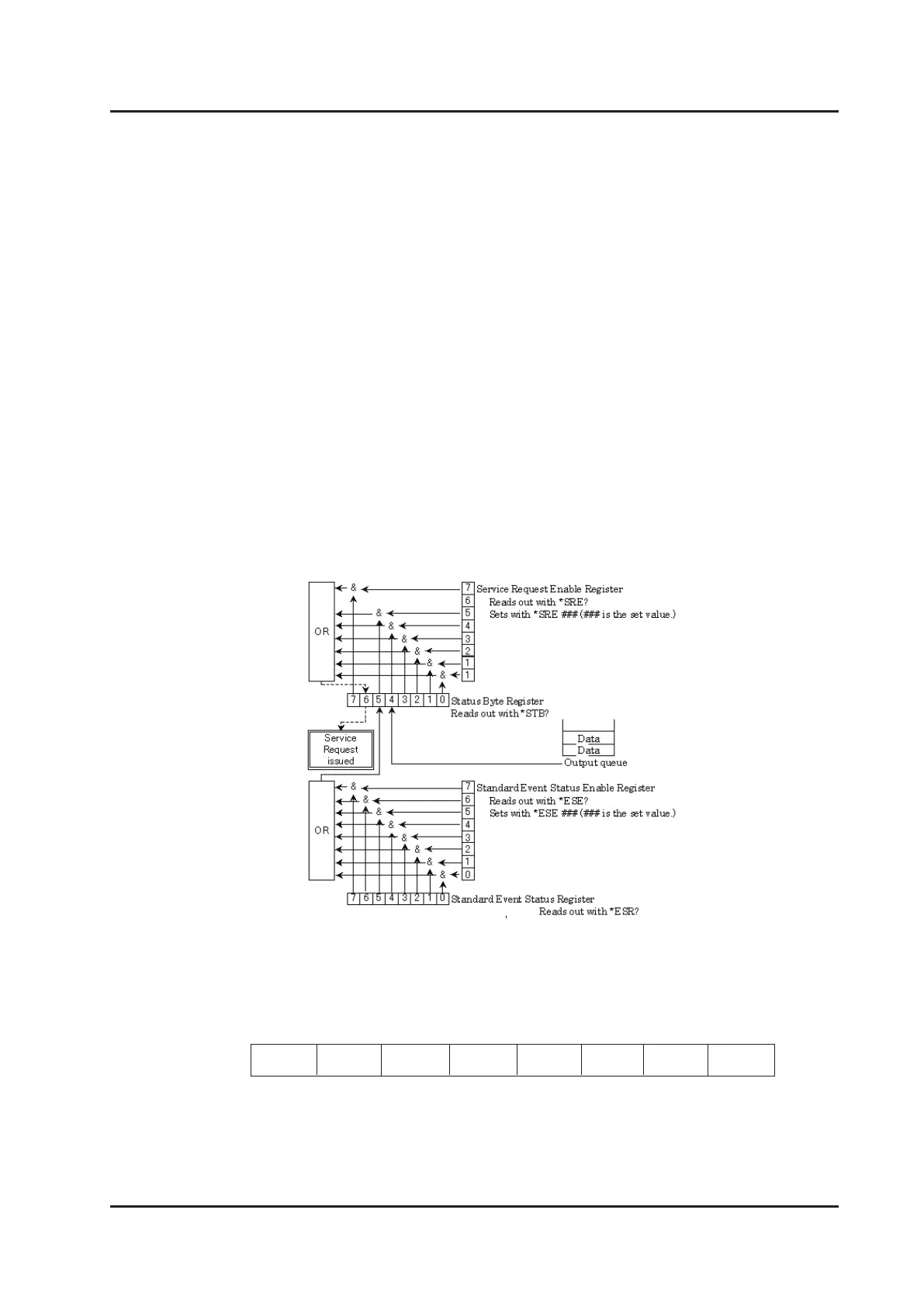

1) Status System Structure Overview
* Output queue is cleared when a new command is input into the input queue.
2) Status Byte Register (STBR）
The status is read out by serial poll, or *STB? command.
Not used RQS ESB MAV Not used Not used Not used Not used
7 6 5 4 3 2 1 0
