Section 1 Maintenance
SCC1000C Crawler Crane — Maintenance Manual

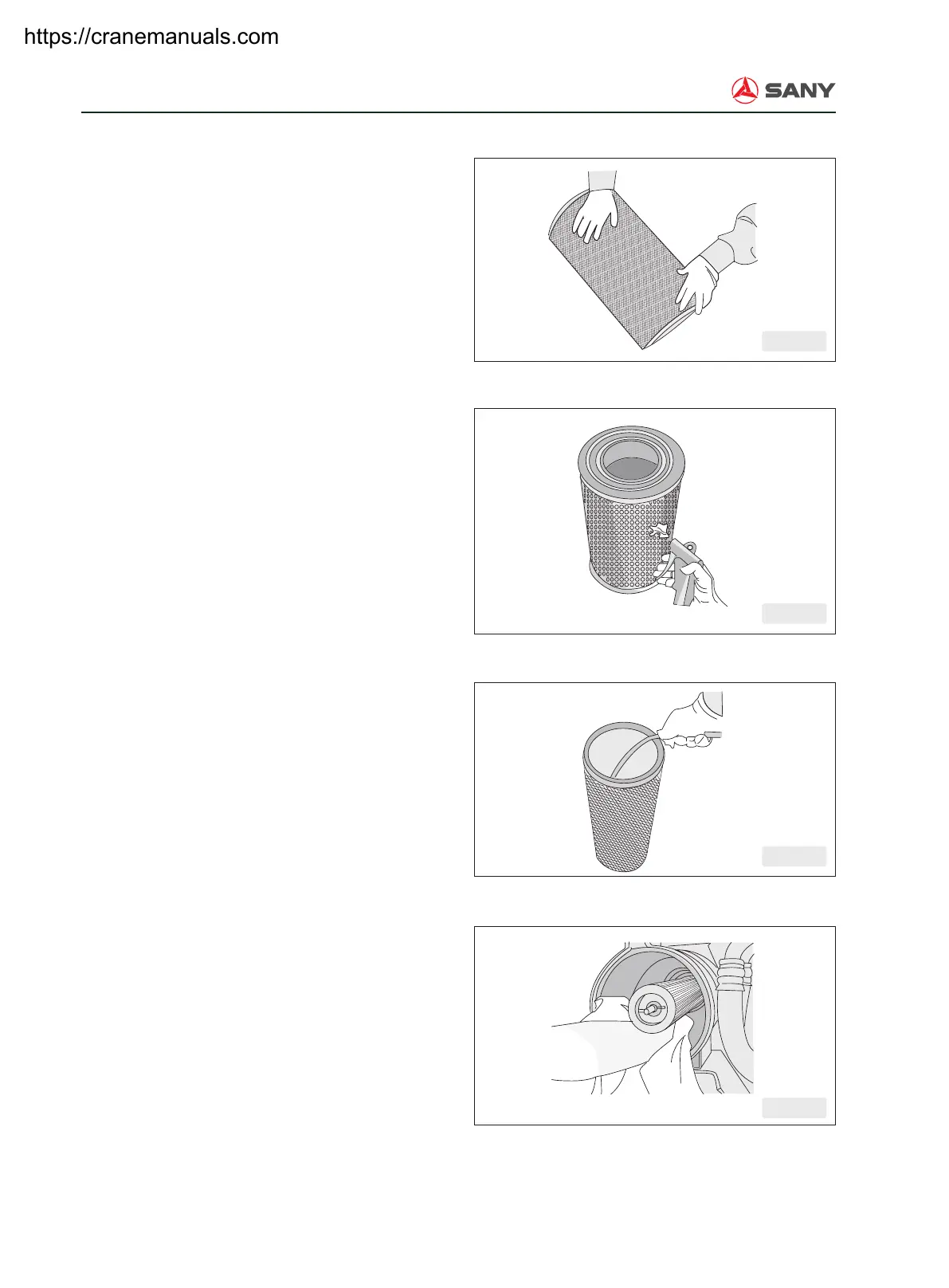

4�4�4 Air Filter Cleaning
1. A temporary method is by shaking off.If the
filter cannot be cleaned with the compressed
air, the dust on the filter core can be shaken
off. Repeatedly and gently pat the outer surface
of the filter core to remove the dust. (see Fig.
TY0181). Avoid damaging the lter core.
2. The method of using compressed air can be
used. Compressed air max. 5 bar (72.57psi). Dry
compressed air can be used to blow the filter
surface (see Fig. TY0182), and then blow the
inner surface of the lter (see Fig. TY0183).
3. Clean the sealed support (see Fig. TY 0184).
Shaking off Dust from the Filter Element
Blowing the Filter Surface with Compressed Air
Blowing Filter Outer Surface with Compressed Air
Cleaning Sealed Support
TY 0181
TY 0182
TY 0183
TY 0184
