Section 1 Maintenance
SCC1000C Crawler Crane — Maintenance Manual
CAUTION
7�1�2 Main Hoisting Winch - Replacing the
Lubricating Oil
Abide by environmental laws when disposing of
used oil.
Before changing oil, drain the used oil
while it is hot, i�e� change oil after the
machine has been operating for a long
period�
1. Unscrew the lling plug on the reducer,
2. Prepare the container for oil,
3. Unscrew the oil level plug,
4. Unscrew the drain plug,
5. Drain the used oil into the prepared container,
6. Install the drain plug,
7. Then ll new oil through the lling port, until the
new oil comes out of the oil level check hole,
8. Install the lling plug,
9. Install the oil level plug.
7.1.3 Main Hoisting Winch - Lubricating Winch Drum Bearing
Lubricating method: Fill through the oil lling port on the side without reducer (see Fig. T103 3003).

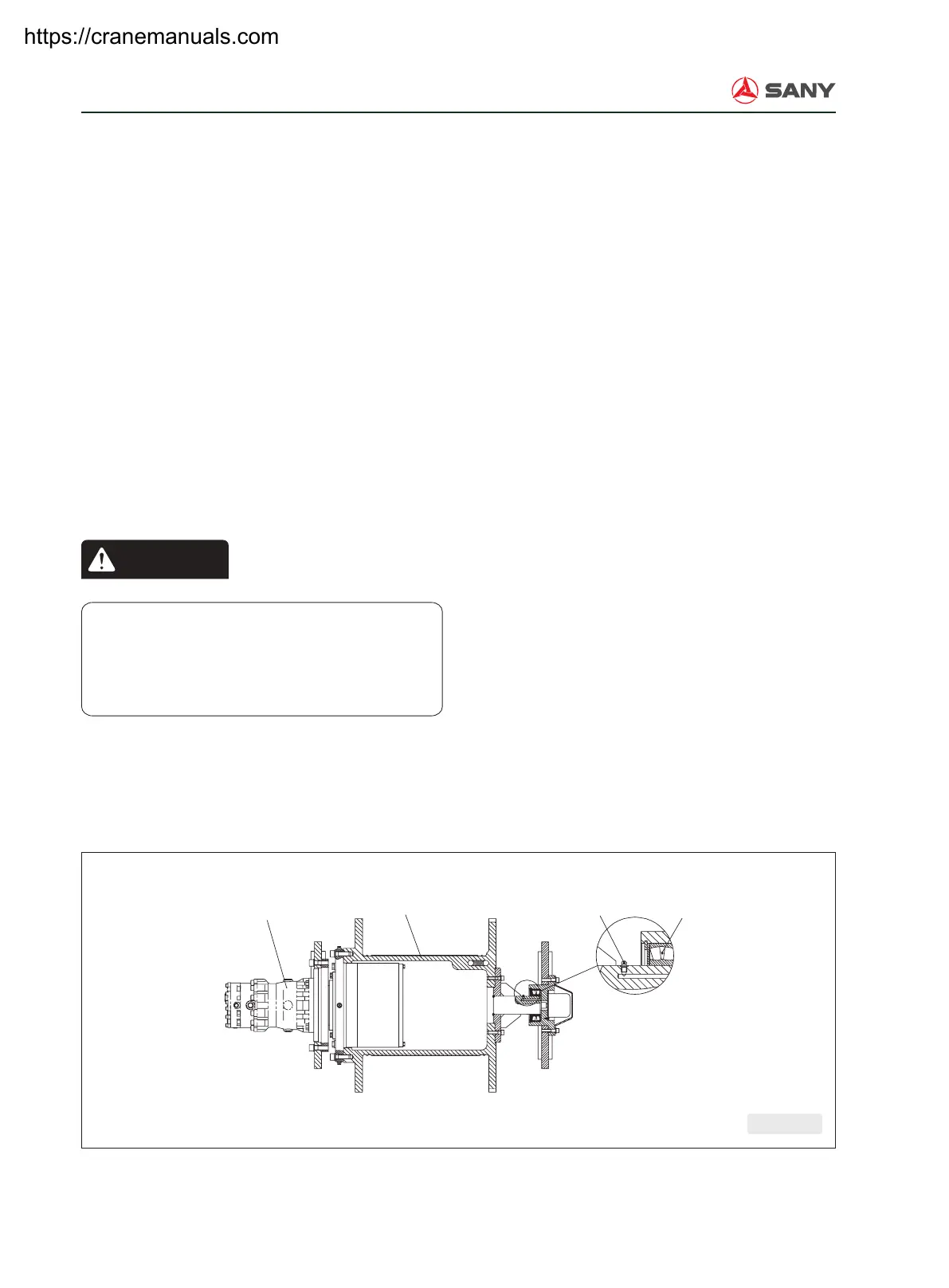

Diagram for Bearing Lubrication
Hydraulic motor
Drum
Oil lling port
Bearing
T103 3003
